18L 4L 25lautomatic Round/Square Tin Can Sealing Machine

Quantity:
  • 10-50cpm

  • 2.2kw

  • <0.4mm

  • 700-1500kg

  • Customized

  • HLT

  • Wuxi, Jiangsu

  • 80070090

  • 100 Sets One Year

  • Available | Customized Request

Product Description


18L 4L 25LAutomatic Round/Square Tin Can Sealing Machine
18L 4L 25lautomatic Round/Square Tin Can Sealing Machine

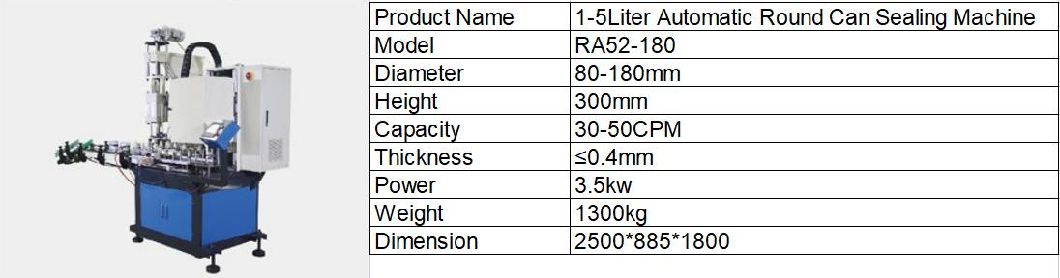

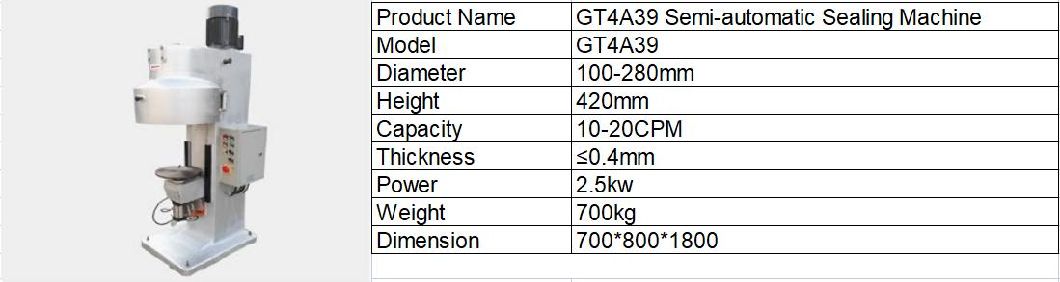

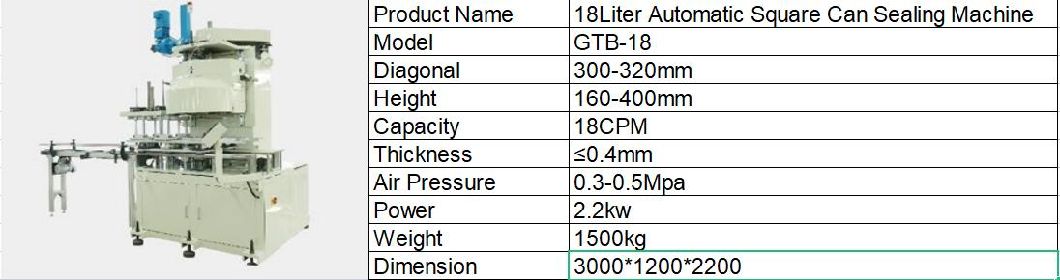

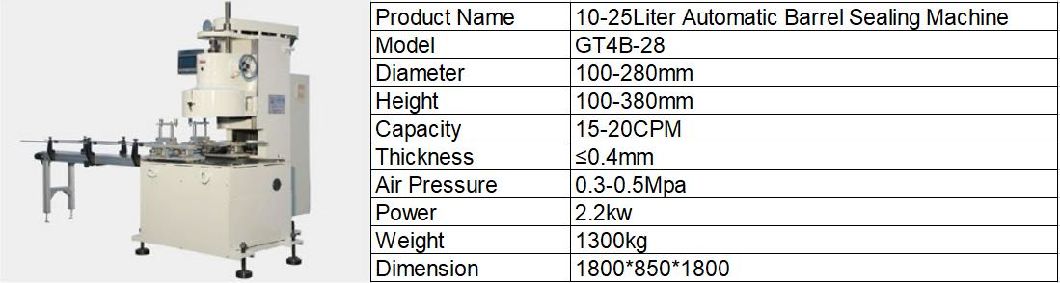

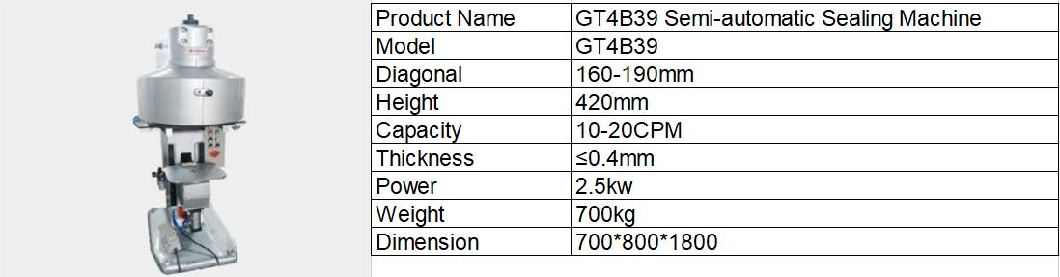

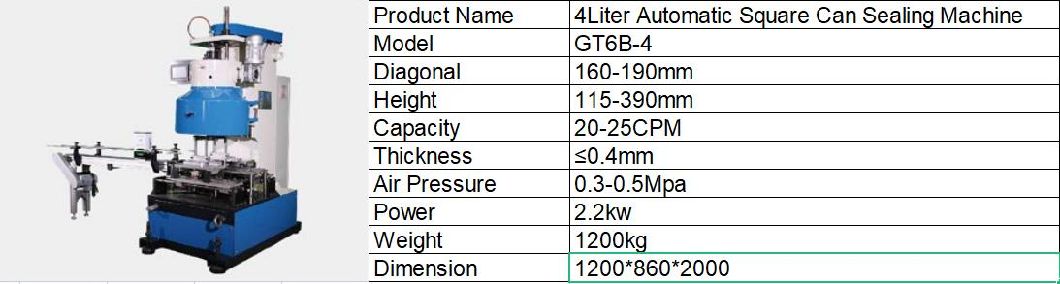

------Main Parameters of Sealing Machines
18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine

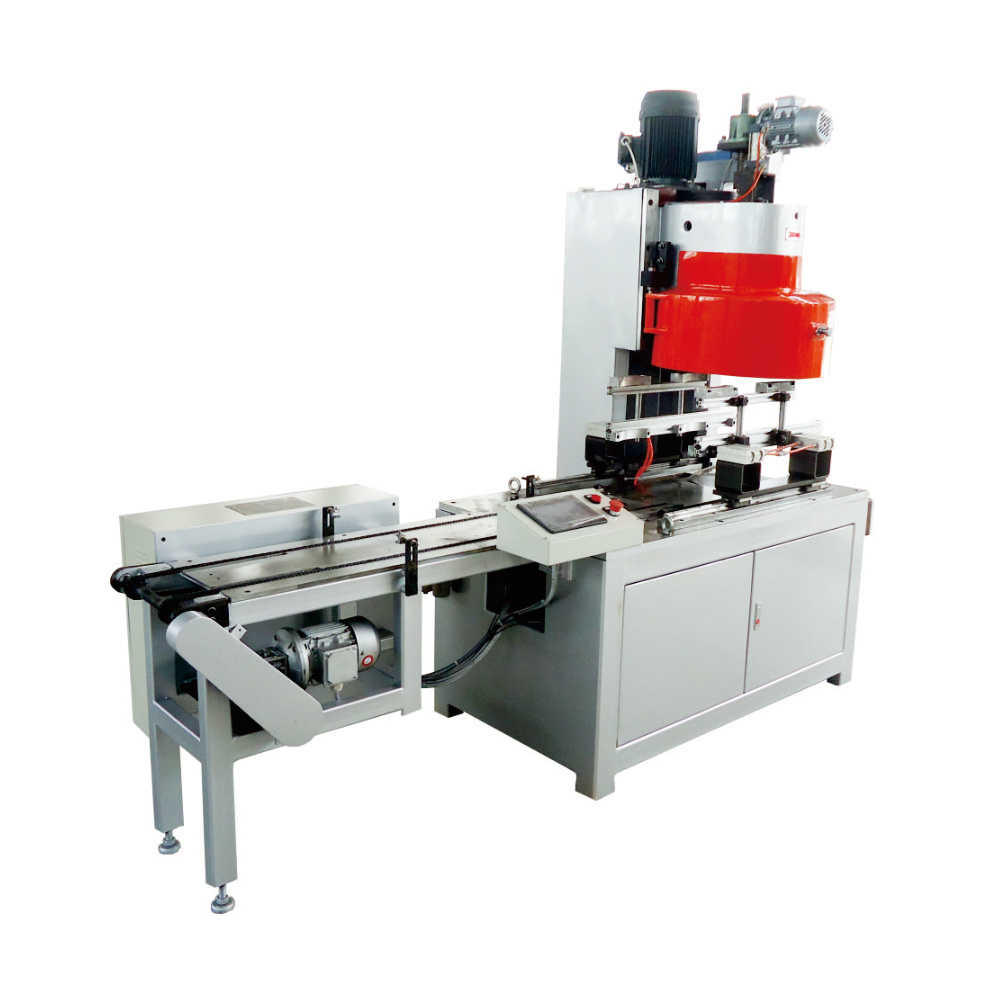

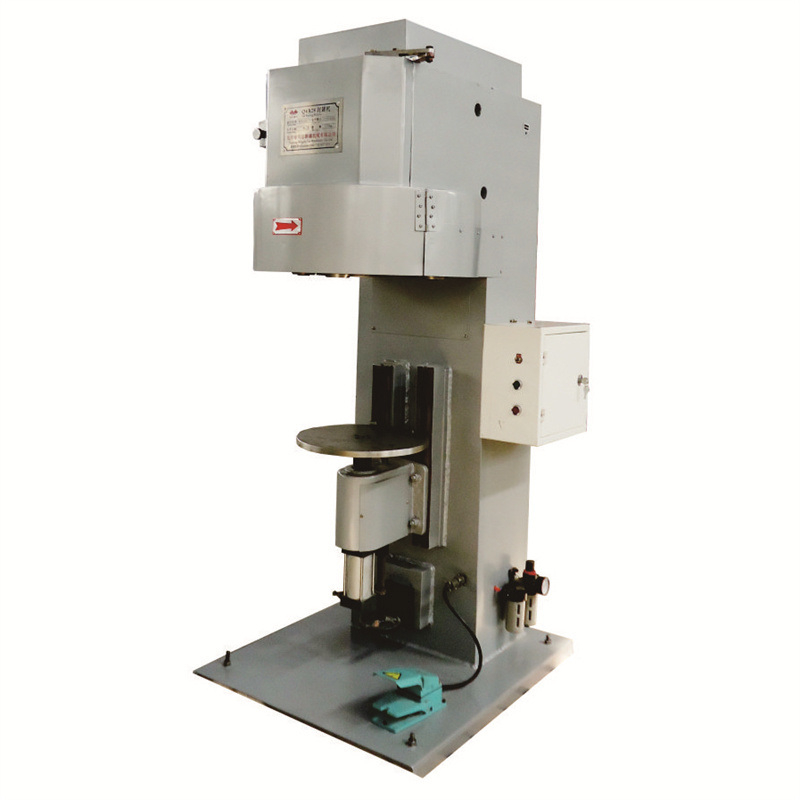

------Product Display
18L 4L 25lautomatic Round/Square Tin Can Sealing Machine

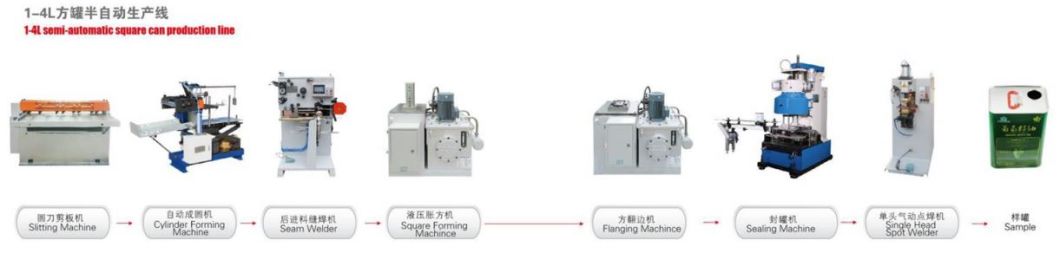

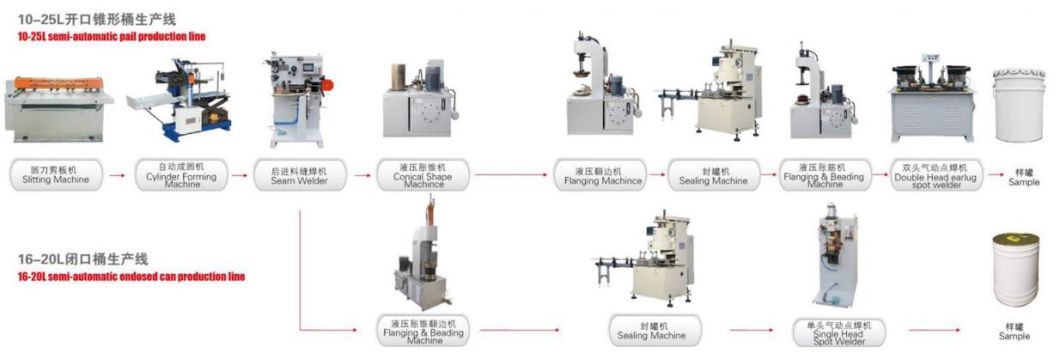

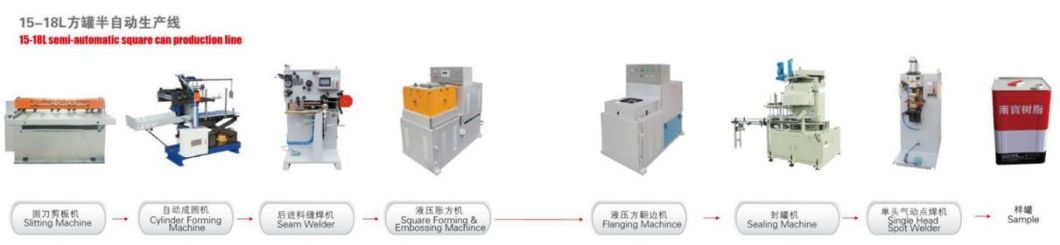

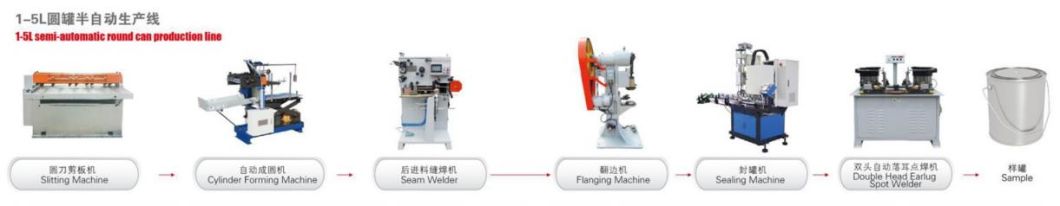

------Can Making Production Line
18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine18L 4L 25lautomatic Round/Square Tin Can Sealing Machine

------Proposal for 18Liter Automatic Square Can Production Line
1. R-40 Shearing machine
Function: cut tinplate sheets into small pieces
Production------------- 1.6metre/second
Suitable thickness----Max. 0.5mm
Suitable width---------40-1050mm
Suitable height--------Max. 440mm
Power consumption-1.1kw
Dimensions -----------1700×1100×100mm
Weight------------------About 1000kg

2. Automatic big can body seam welding machine
Model--------------FBZ-A
Power--------3N380V/50Hz 40KVA
Welding speed------------6-18m/min
Capacity -------------20-30pcs/min
Diameter Range--------Φ250290mm
Height Range-----------180-450mm
Overlap--------------0.8-1.2mm
Thickness------------------0.28-0.4mm
Copper wire--------------------Φ1.5mm
Compressor air-------0.5MPa 900L/min
Cooling water------0.3Mpa 8-10L/min
Net Weight-----------------------2000 kg
Dimension--------------2100*1900*1900 mm

3. Automatic 5 work station square forming& embossing and flanging machine
Production capability-----------19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption---------- 14kw
Dimensions/ Weight----- 30000x1300 x2400mm
Weight------------6800kgs

4. Automatic big square can seaming machine with auto lid placing device
Production capability-----------18-19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption------------------4kw
Applicable electric power----------380V 50HZ
Dimensions/ Weight---------2800x1100 x1900mm
Weight------------------1300kgs
Function: square can lid and bottom seaming automatically

5. Turner

6. 18L square can single head handle welding machine

Production----------------23-25pcs/min
Suitable thickness-------- Max. 0.4mm
Power---------------------------63KVA
Dimension-------------1900 X 1550 X 1500mm
Weight----------------------- about 1200kgs

7. Dies
Die for bottom------------------1 set
Die for punch hole-----------------1 set
Die for catcher handle-------------1 set

8. JH21-45 punch machine
Capacity---------------------------450
Nominal Force------------------- 4mm
Slide Stroke----------------------100
Max. Die Height:-----------------270
Die Height Adjustment----------60
Between Slide Center & Frame------230
Bolster (FB×LR)-------------------440*810
Bolster Thickness---------------110
Slide Area (FB×LR)------------ 300*300
Shank Hole (Dia.×Dpth)--------Φ460
Between Columns------------------550
Motor Power-------------------------5.5KW

9. J23-16B press machine
Capacity------------------------------160
Nominal Force-----------------------5mm
Slide Stroke---------------------------55
Max. Die Height---------------------125
Die Height Adjustment-------------45
Between Slide Center & Frame--160
Workable dimension----------300×450
Dimension od workable hole-----Φ100
Thickness of bloster----------40
Hole size in bed (Dia.×FB×LR)--------------Φ210×160×240
Slide Area (FB×LR)-------180×200
Size of handle Hole (Dia.×Depth)--------------Φ40×60
Max. Inclined Angle-------25°
Between Columns-------- 220
Motor Power---------------1.5KW
Outline Size -------------1150×900 ×191

10. Automatic feeder
Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------1500×800×1600mm
Weight-----------------------------400kg

11.Automatic square lid lining & oven machine(with turner, curling and lids collection device)
Function: edge curling can bottom

Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------3200×1000×1500mm
Weight-----------------------------600kg
------After Sale Service

Timely & Satisfied oversea installation service

We have rich experience for oversea installation and commissioning work, we always send the skilled engineers for assisting our clients to run the machine smoothly and quickly.




------ Our Factory Site

Our strong machining ability

Our hired employees are over 100 for different working process, Additionally, with strong manufacuting ability, we can delivery every order on time.


------ Company Introduction
Wuxi Longterm Machinery Technologies Co.,Ltd
Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of tin can making equipment, we will supply turnkey solution, after-all sales service and high quality machine can be guaranteed here

---- FAQ

In order to recommend you the proper machine, we'd like to get the below from you:

- What's the can size you want to produce?
- What is the medium in the can .
- What's the daily capacity you want to attain?
