Views: 0 Author: Site Editor Publish Time: 2024-07-31 Origin: Site
1. Characters are easy to change, more flexible, If some characters are broken or need to be replaced, our workers can replace them at any time without affecting efficiency.
https://youtube.com/shorts/XHcGglufFFk?si=n9rvBZnWe4APY9HM
2. No missing letters when it is running.
The disadvantages of the western fully automatic stamping machine.
For automatic stamping machine, it is possible that will have letters missing issue. for some letters need to be changed, the system need time to find the correct letters. But at the same time, the machine is running, if the time for finding correct letter is longer than expected, it is possible that will have missing letters issue
But our letter exchange is by manual. When will exchange the letter, the machine is not running. So it wont have letter missing issue.
Running of stamping machine: https://www.youtube.com/watch?v=TG2pMR-cwzY
Electrical control
1. The control system is PLC control, PCL is the Japanese Mitsubishi system, LCD color touch display, can realize automatic positioning, position value can also be input through the keyboard, and can realize automatic counting of class output. 2. Electronic encoder automatic detection—signal transmission—automatic editing, the detection accuracy is ±0.25mm (circumferential and radial), and the printing line spacing deviation is within 3mm. 3. The power supply is three-phase five-wire system, 380v, 50hz 4. The total power of the equipment is about 15kw

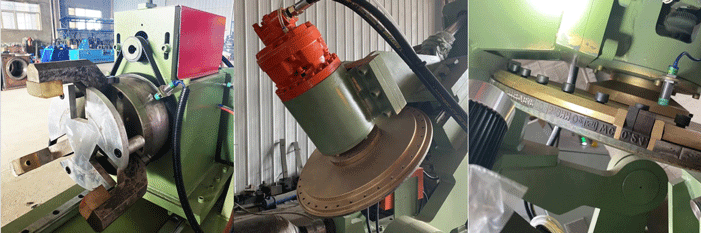

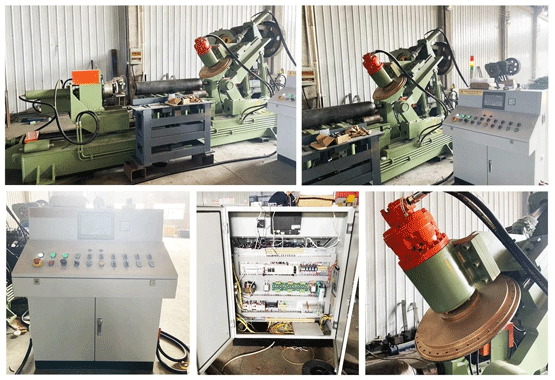

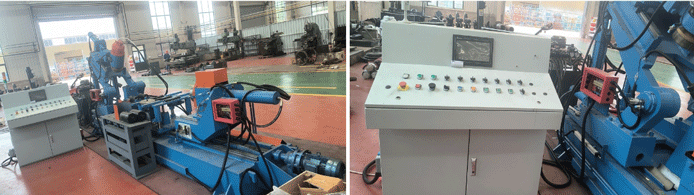

Datails of the machine:
Performance:
