HLT

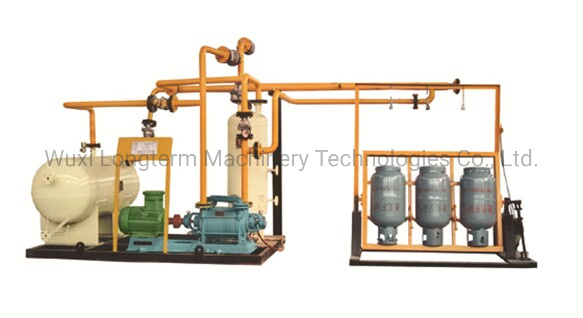

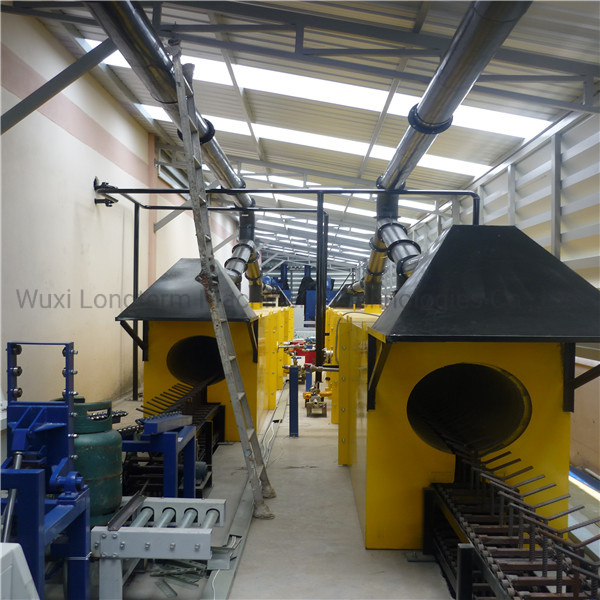

Automatic Recondition/Refurbishment Line Machinery
3kg/5kg/6kg/11kg/12kg/12.5kg/50kg
HP295
Accept
T/T
Polywood Box
Can Be Customized
380V/415V, Can Be Customized
Standard Seaworthy Package
depends on machine
Longterm
Jiangsu China
85152100
500 Sets/Year
US$ 100/Piece 1 Piece(Min.Order) | Request Sample
Product Description

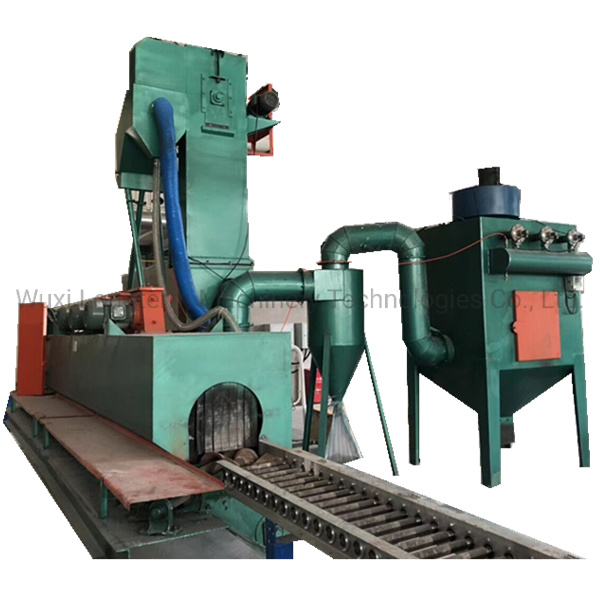

| No. | Item | Parameter | Remark | |
| 1 | Impeller head | Quantity | 2 | Adopt the technologies from German V+S and America WHEE -LBRATER |
| Model | Q034Z37 | |||
| Impeller diameter | F400 mm | |||
| Impeller speed | 2900 rpm | |||
| Projectile ejection speed | 82 m/s | |||
| Blasting capacity | 2×550 kg/min | |||
| Power | 2×37 kW | |||
| 2 | Bucket elevator | Lifting capacity | 70 T/h | |
| Linear velocity | 1.5 m/s | |||
| Bucket width | 170 mm | |||
| Total height | 5000 mm | |||
| Reducer | XWD5.5-6-29 | |||
| Power | 5.5kW | |||
| 3 | Auger conveyor | Delivery value | 70 T/h | |
| Diameter×Screw pitch | F250×250 | |||
| Reducer | XWD3-5-35 | |||
| Power | 3kW | |||
| 4 | Shot blasting cleaning chamber | Maximum workpiece diameter | 400 mm | Installation of combined wear resistant cast iron guard plate |
| Shot blasting chamber size | 3000×600×1700 | |||
| 5 | Conveyor roller | Roller space | 300mm | Shot blasting chamber adopts special protective sheath. Using Japan Mitsubishi brand Ac frequency conversion speed regulator to stepless adjust roller conveying speed. |
| Conveying speed | 0.5~2.5 m/min | |||
| Reducer | XWE3-6-87(sharing) | |||
| Conveying length | 11643 mm | |||
| Power | 3kW | |||
| 6 | Pellet separator | Separation width | 800 mm | |
| Fractional dose | 70 T/h | |||
| Separation efficiency | 99% | |||
| 7 | Dedusting system | Total air volume | 8000 m3/h | |
| Chamber air volume | 6000 m3/h | |||
| Separator air volume | 2500 m3/h | |||
| Dedusting method | Cyclone+Filter cartridge dust collector | |||
| Main fan model | 4-72№5A | |||
| Main fan power | 11 kW | |||
| Dedusting efficiency | 99% | |||
| 8 | Air control system | Adopt imported AIRTAC brand pneumatic element | ||
| 9 | Electric control system | Roller motor adopts Japan Mitsubishi brand Ac frequency conversion speed regulator stepless speed regulation; Equipped with domestic famous brand appliance components; PLC automatic control. | ||
| 10 | Total power | 96.5 kW | Including dedusting motor power | |
Our services, shipping methods, warranty, payment terms, etc....
RFQ for cylinder production line
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specialized in automatic welding
equipment more than 25 years, we have a strong design & technical team,
we can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing ,daily out put
Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.
Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order by T/T, balance 70% before delivery.
Minimum order quantity: 1 set
Delivery time: about 45 days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.
Q: what's the package ?
A: Fumigation-free plywood case with wrapping film.
Q: Do you offer teaching & training ?
A: Training at supplier's plant.
Q: what's policy for guarantee and broken parts ?
A: Warranty period of equipment is one year, during this time the broken parts and spares
caused by quality can be offered free.
