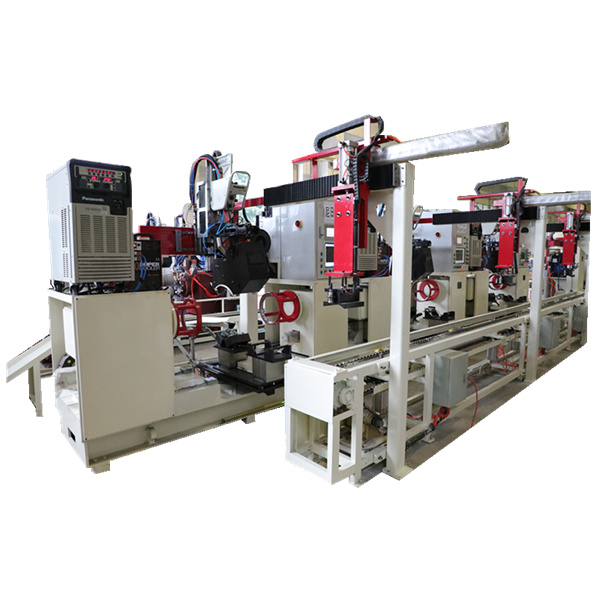

Welding Expert-LPG Cylinders Welding Zone with Robot Tech

Quantity:
  • Can Be Customrized

  • AC Frequency Conversion

  • Pneumatic Cylinder

  • Manual Operation Support

  • Standard Seaworthy Package

  • ISO9001

  • LONGTERM

  • Jiangsu, China

  • 844790900

  • 1000sets/Year

  • US$ 122/Piece 1 Piece(Min.Order) | Request Sample

Product Description

6/12kg LPG Cylinder production line machinery
Welding Expert-LPG Cylinders Welding Zone with Robot Tech

Machine list:
No Machine name
1 Power press
2 Hydraulic Shell Forming machine
3 Automatic trimming machine
4 Hole punching machine
5 Valve Seat Welding Machine
6 Bottom base welding machine
7 Protection enclosure welding machine
8 End dish shaping machine
9 Assembling Machine
10 Circumferential Seam welding machine
11 Annealing furnace
12 Sandblast machine
13 Plastic coating machine


1.Power press
To cut the steel sheet into a round one according to size of the cylinder


2.Hydraulic Shell Forming machine
Press the round sheet into a shell with dies.

3.Automatic trimming machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line


4.Hole punching machine
Punch the hole on top of the cylinder


5.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time


6.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.



7.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.


8.End dish shaping machine



9.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding

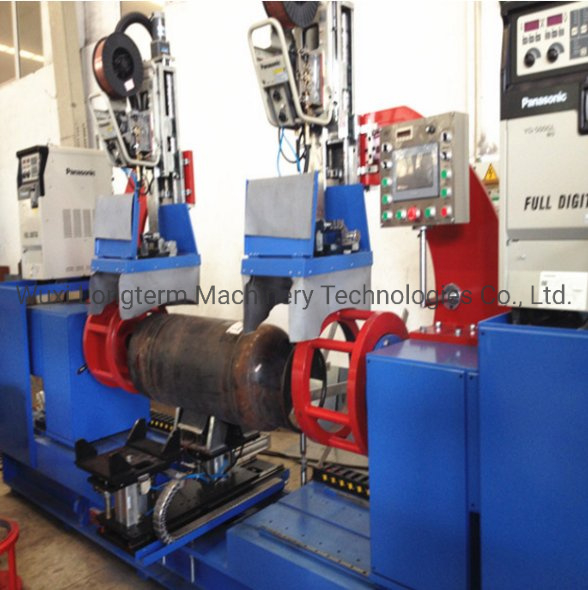

10.Circumferential Seam welding machine

Technical data
Description Data
Payload capacity 200kg
Wall thickness 2.0-4.0mm
Rotation speed 0.05-0.5rpm
Diameter coverage OD300-OD500mm
Speed regulation AC frequency conversion
Suitable for work-piece length 1500mm
Clamping pneumatic cylinder
Support manual operation support

The machine is with good appearance welding seam. During the welding process, only the on-off signal has to be provided, the whole welding seam can be finished one time without halfway stop. Which increased the welding efficiency and improved the welding quality. Such circular welding equipment is easy to be operated and installed, can replace a lot of skilled welder.



10. Annealing furnace
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.


11.Sandblast machine
Remove the rust, oxide layer and burr free of pipe. Clean welding slag, showing a metallic luster,
make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel tube


12.Plastic coating machine
Coating the cylinder surface to protect the cylinder from rusting

Item No. HLT-12KG
Features Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding machines
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union
OEM & OEM OK

FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
