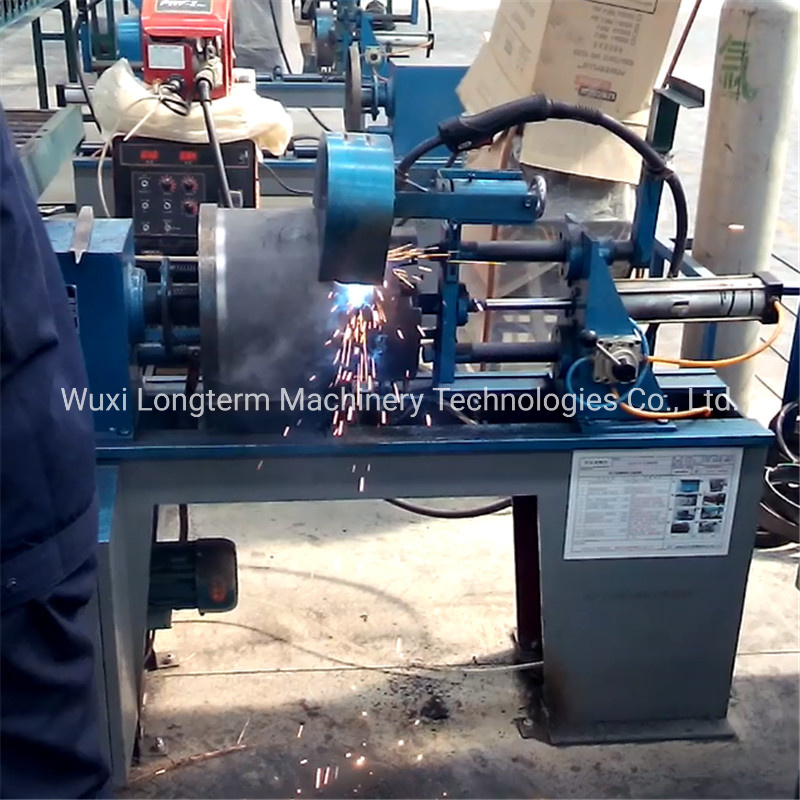

Semi-automatic LPG cylinder bottom base / foot ring welding machine
------Main technical parameter Horizontal type (single torch) ------ Other advantaged LPG cylinder machinery Except supplying the semi-auto machine which is fit for the clients' budget, we are capable to supply the full-auto welding system to help our clients attain the high working efficiency and reduce the manpower cost, list some of our advantaged full-automatic welding machines as below:
|Motor power ||0.55KW |
|Air pressure ||0.5-0.7Mpa |
|Voltage ||AC380V |
|Welding speed ||22 s/pcs |
|Equipped with CO2 gas shielded welding machine |
|One operator can take care of two sets machine at the same time |
|The machine should be connected with the water tank |

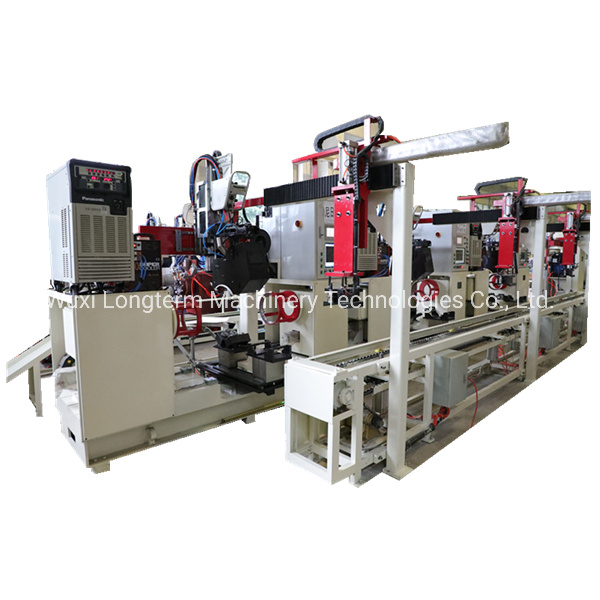

Full automatic welding line
Full-auto welding machine includes socket welding, handle/collar welding, base ring welding, circumference welding, and all machines work automatically, the cylinder halves are conveyed by mechancial arm and chain, this system really saves much labor cost and improve the working efficiency apparently.
PART A:Template full automatic welding line layout
PART B:Full automatic welding line detailed introduction
[Full auto socket welding]
This machine is used for upper cap socket welding and edge welding part polishing.Equip with Panasonic YD-350GL4 welder 1 set, water cooling welding torch 1 pcs, 8L automatic cycle water cooling tank 1 set.The main shaft motor is 0.75KW.Polishing motor is 1.5KW, equip with the grating security protection.
Equip with NO.6 Hydraulic station, 1 set, vane pump, 5.5KW.Setting pressure:Falling 4 MPa, rising 9 MPa.
[Full auto handle welding]
T his machine is used for upper cap hadnle welding.Equip with three sets welding torch, 3 welders finish at one time.Equip with Panasonic YD-350GL4 welders 3 sets, welding torch 3 pieces.Main shaft motor is 0.4KW, with the grating security protection.
Equip with No.7 hydraulic station, vane pump, 5.5KW.Setting pressure:Pressing 4MPa, rising 9MPa.

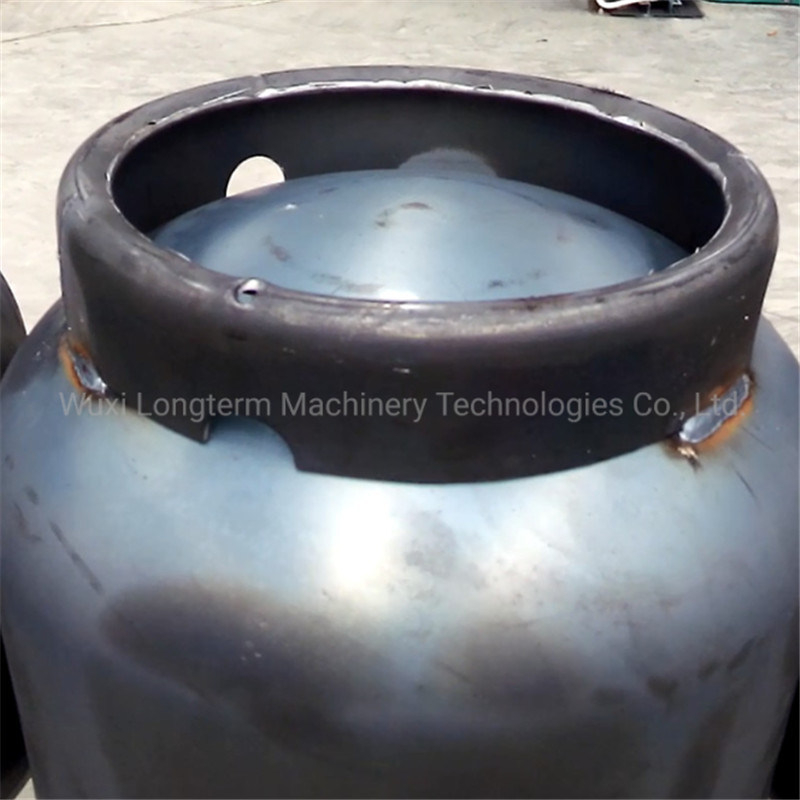

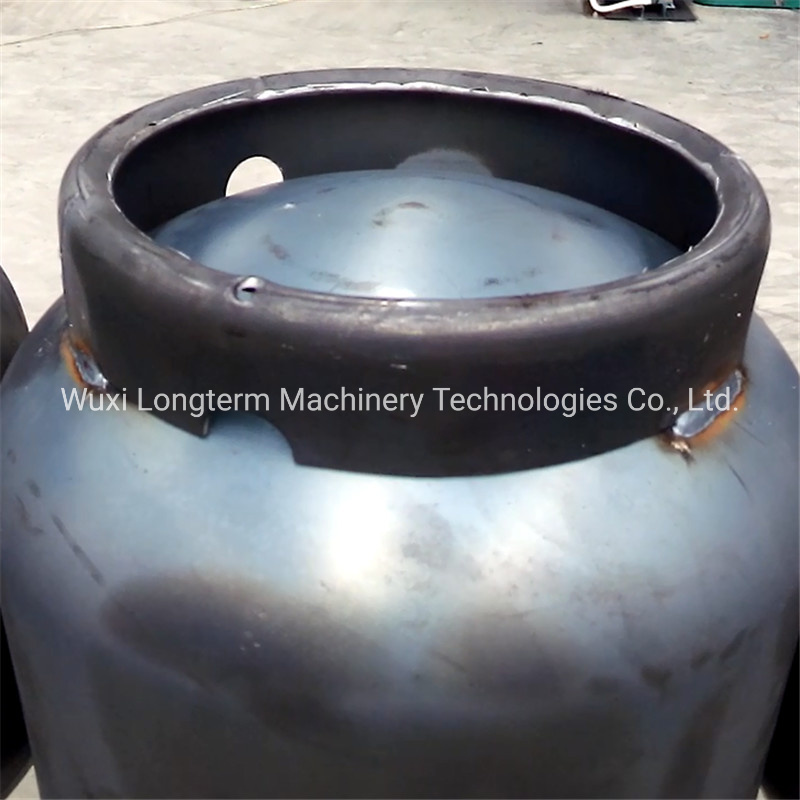

[Full auto base ring welding] This machine is used for lower cap bottom base welding, equip with three welding torch, 6 welders could be finished at two times.Equip with Panasonic YD-350GL4 welder 3 sets, welding torch 3 piece.Main shaft motor 0.4KW, with the grating security protection . Equip with No.3 hydraulic station, vane pump, 5.5KW, setting pressure:Pressing 4MPa, rising 10MPa.
[Full auto single head circumference welding] This machine is used for cylinder upper shell and lower shell welding, it adopts seam vision tracking device, automatic imaging to tracking welding seam, welding the circumferential seam automatically, no need of manual intervention.It adopts Panasonic 500GS (special) high-speed pulse MIG welding source.Welding speed can reach to 1000mm/min.It adopts double internal cooling MIG torch, it is suitable for long time welding.It is equipped with Supercooler automatic circulating cooling water tank to cooling the welding torch circularly.
------After Sale Service Timely & Satisfied oversea installation service We have rich experience for oversea installation and commissioning work, we always send the skilled engineers for assisting our clients to run the machine smoothly and quickly.

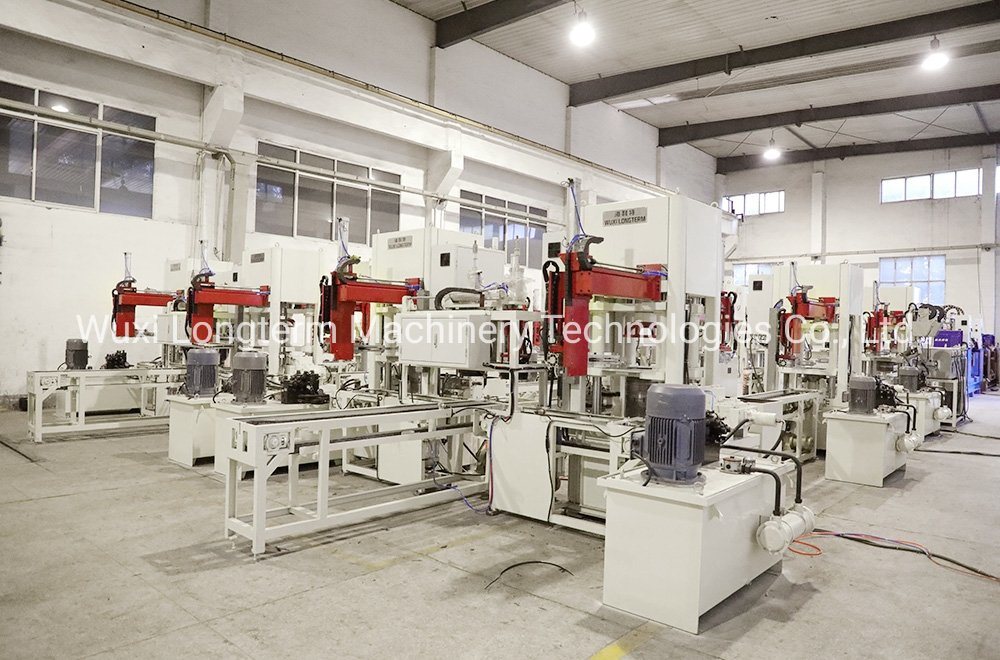

------ Our Factory Site Our strong machining ability Our hired employees are over 100 for different working process, such as milling lathe, punching machine, heat treatment, grinding machine, cause we make all machine parts by ourselves, we can ensure the parts quality by 100%.
Additionally, with strong manufacuting ability, we can delivery every order on time. ------ Company Introduction
Wuxi Longterm Machinery Technologies Co.,Ltd
Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-welding equipment (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related equipment.Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.
------ Customer visiting
So far, our machines have been exported to Canada, US, India, Turkey, Thailand, Vietnam, Nigeria, Ghana, Argentina, Bangladesh etc. With our unsurpassed service, all machines are running smoothly and perfectly in our clients' factory and help them win more markets. ------ FAQ
In order to recommend you the proper machine, we'd like to get the below from you: - What's the bottom base shape you are using?
- It's better to provide the cylinder drawing or handle drawing.
- What's the daily capacity you want to attain?
