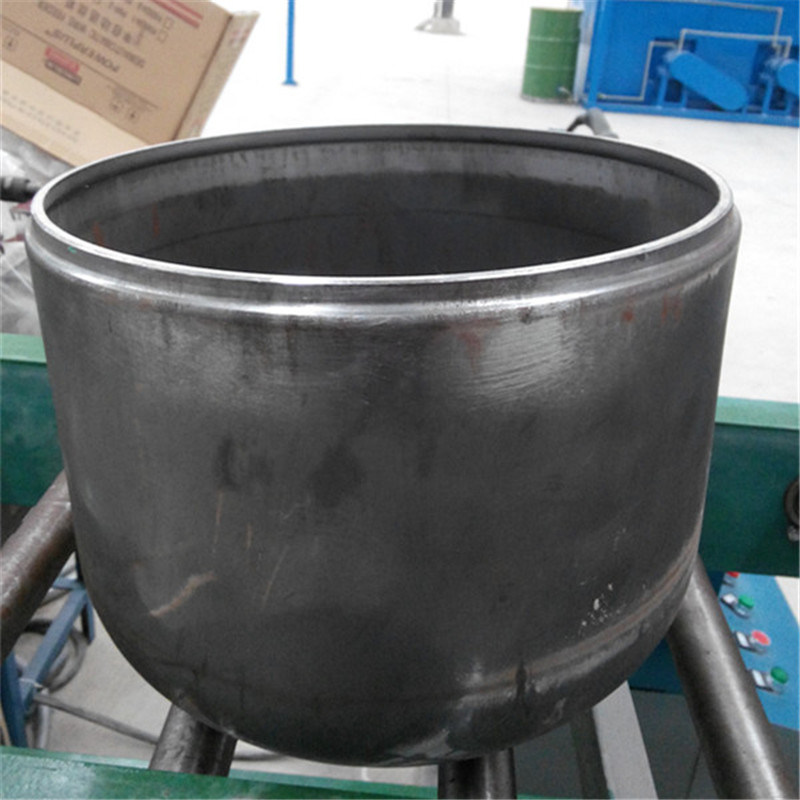

Semi Automatic End Dish Necking Machine

Quantity:
  • HLT2017

  • 3PCS/Min

  • 1600*650*1600mm

  • 5.5kw

  • Standard Seaworth Package

  • T/T

  • Standard Seaworthy Package

  • depends on machine

  • Longterm

  • Jiangsu China

  • 85152100

  • 500 Sets/Year

  • Available | Customized Request

Product Description

Semi Automatic End Dish Necking Machine

semi automatic end dish necking machine



Main technical parameter:
1. Motor power: 5.5KW
2. Air pressure: 0.6Mpa
3. Necking speed: 15s/pcs (adjustable)
4. Weight of machine: 1.5ton
5. Dimension: 1600*650*1600mm
No. Description Model & Size Unit
Main Manufacturing Equipment
1 Hydraulic presser for blanking sheet 630T set
2 Open mill and shearing machine set
3 Round sheet cutting/blanking mould 13KG set
4 Round sheet cutting/blanking mould 6KG set
5 Hydraulic Drawing machine 200/300 set
6 Drawing mould 13KG set
7 Drawing mould 6KG set
8 Trimmimg machine QK-5 set
9 Cleaning/polishing machine set
10 Hole punching machine set
11 Valve Seat Welding Machine set
12 Shroud/handle welding machine set
13 Bottom base welding machine set
18 Assembly machine/assemble the two halves into one ZH-3 set
19 Circumferential seam welding machine HJ-3 set
20 Heat treatment/annealing furnace set
21 Hydrostatic/pressure Testing Unit SY-4 set
22 Shot blasting machine set
23 Powder coating line set
24 Valve mounting machine set
25 Leakage testing machine CM-3 set
26 Printing machine ZS-3 set
27 Burst Test Unit set
Total
Auxilary Equipment
1 Mechanical power press 100T set
2 Mechanical power press 40T set
3 Hydraulic press 200T set
4 Coding machine set
5 Shrould rolling machine set
6 Bottom base rolling machine set
7 Bottom base welding fixure set
8 Upper raduis rolling machine 180T set
9 Mechanical power press 63T set
10 Shrould mould set
11 Bottom base mould set
12 Printing mould pair

1.De-coil and punching machine for small round sheet cutting from big sheet(material preparing for shell)

2. Hydraulic press drawing the head(200-300T)

Press the round sheet into a shell with dies

3. Automatic trimming machine
This machine is reliable, easy to operate .
Technical data
Motor power:5.5KW Air pressure:0.6Mpa Trimming time:20s Weight of machine:1.5T

4. End dish necking machine
Technical data
Motor power:4.5-11kw Air pressure:0.6Mpa Thickness of plate:1-10mm
Necking head diameter:150-1200mm Necking time:10-50s (adjustable)
Weight of machine:1.5-3T

5.Cleaning machine
Technical data
Motor power:1.5kw Polishing motor power:1.5kw*2 Air pressure:0.6Mpa
Polishing wheel feed range:0.2-20mm Efficiency:180Pcs/hour Weight of machine:1.2T


6.Hole punching machine
Punch the hole on head of the cylinder
Technical data
Motor power:5.5kw Punching speed:180Pcs/hour Weight of machine:1.5T


7.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time
Technical data
Rated voltage:220V Motor power:0.25kw Air pressure:0.6Mpa


8.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Current:AC380V+N Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa

Semi Automatic End Dish Necking Machine
9.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Rated voltage:AC380V Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa

Semi Automatic End Dish Necking Machine
10.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding
Technical data
Cylinder diameter:250mm Air cylinder pressure:0.5-0.7Mpa


11.Circumferential Seam welding machine
Technical data
Voltage:AC380V+N Motor power:0.55KW Rotation speed:Max.10rpm/min (adjustable)
Motor power:0.55kw


12. Gas car-bottom heat treating furnace machine
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.
Technical data
Producing efficiency:75pcs/hr Feeding type:Chain drive/cylinder feeding
Cleaning size:Ø320*700mm------Ø420*1250mm
Dimension:(L*W*H):12500*1390*1560mm removable transport




13.Hydrostatic Testing Machine
The machine is special for steel cylinder of liquefied gas cylinders,applicable to manufacturers and testing station for wuthstand voltage test on cylinder.Irrigation,pressurization,pressure,maintaining centralized control and automatic pouring completed by using water pump,equipped with a water tank,water can be recycled.
Technical data:
Pneumatic pressure:0.6Mpa Motor power:3kw
Hydrostatic test pressure:3.2Mpa Weight:1.1T

Semi Automatic End Dish Necking Machine
14. Cylinder drying machine
The equipment is used for drying the bottle cylinder after water pressure test.

Semi Automatic End Dish Necking Machine


15. Shot Blasting Machine
Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).
Technical data
Produing efficiency:80-120pcs/hr Shot blasting machine:2 sets
Hoist motor power:2.2KW Total power:31.2KW
Weight:16T Workpiece size:Ø320mm*680mm
Machine dimension:(L*W):7885*2460mm


16.Spraying production line
The spraying producing line for U track,using electric or natural gas,fuel oil,coal heating,hot air circulation,the allocation of fixed automatic spray gun 4,manual gun 1.Spraying powder or paint on the steel cylinders apperance.The cylinder into the oven drying after spraying
Technical data
Working voltage:380V 50HZ Air pressure:0.4-0.6Mpa
Total power:15KW Working efficiency:180Pcs/jr


17.Valve mounting machine
The equipment is suitable for the liquefied petroleum gas cylinder angle value installation and use,it absorbs the domestic and foreign advance technology,using electrical control,pneumatic clamping,torque adjustable device,when reaching a certain torque,and go to the specificed direction after the automatic shutdown.The machine operation and flexible,convenient and safe
Technical data
Motor power:2.2KW Motor speed:1400r/min
Work spindle speed:15.5r/min Working air pressure:0.5-0.6Mpa
Consumption per hour:1.14m3 Clamping cylinder stroke:120mm
Rotation speed ration:1:59 Weight:0.9T



18.Leakage Air Test Machine
The device for cylinder do tightness test with,composed of a water tank,a lifting cylinder,a bottle feeding machine,electric control part and other parts,work a bottle feeding mechanism of automatic cylinder will send to be test station,a lifting cylinder will fall into the water.the operating personnel rotation observations of the cylinder is not leaking cylinder,after the test and the cylinder out of water,a loop end.This machine is reasonable in structure,simple operation and maintenance.
Technical data
Air pressure:0.6Mpa Testing air pressure:2.2Mpa
Holding pressure time:60s Weight:1.8T

Semi Automatic End Dish Necking Machine

19.Burst Test Unit
Recorded automatically by computer. Easy operate and reliable.
