R134A R22 R410A Refrigerant Cylinder Welding Machine Production Line
1.It occupies a small area, low energy consumption, high degree of automation, convenient operation, and can save a lot of manpower;
2. High qualification rate and uniform film thickness;
3.It is convenient to add medicament, and it is equipped with an external liquid filling port;
4. Strong versatility, easy to adjust various parameters;
5.High quality materials, long use time and convenient maintenance;
6.The temperature of all drying rooms is automatically controlled and adjustable, and the heat preservation effect is good. Except for the thermal bridge or the furnace mouth, the temperature of all furnace walls is not greater than the environment + 10 ºC;

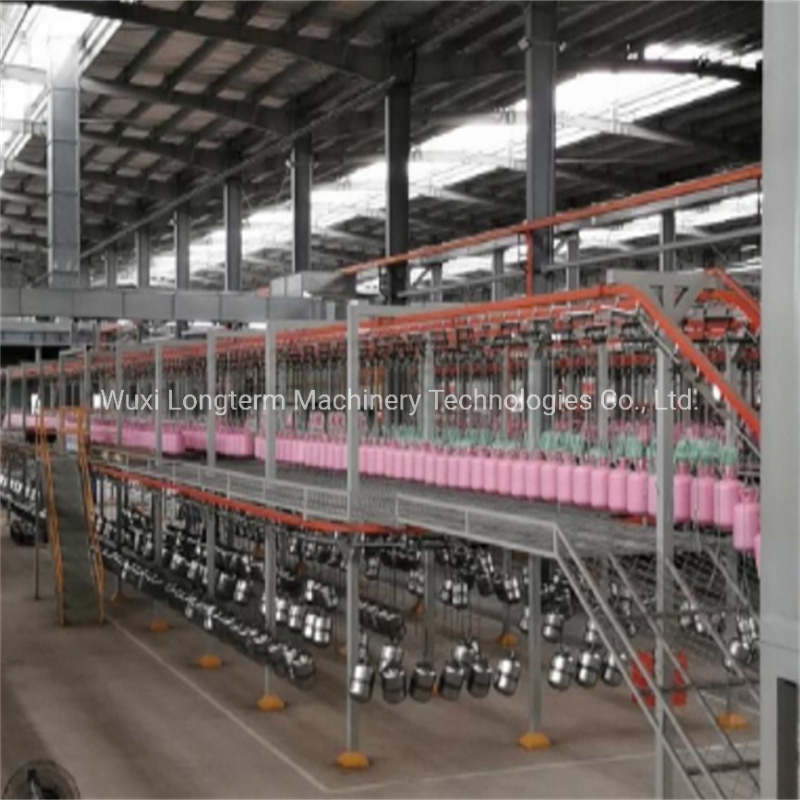

7.Hanging-air conveyor belt adopts long-life chain, which has balanced operation, low abrasion, and the entire spraying line runs smoothly.

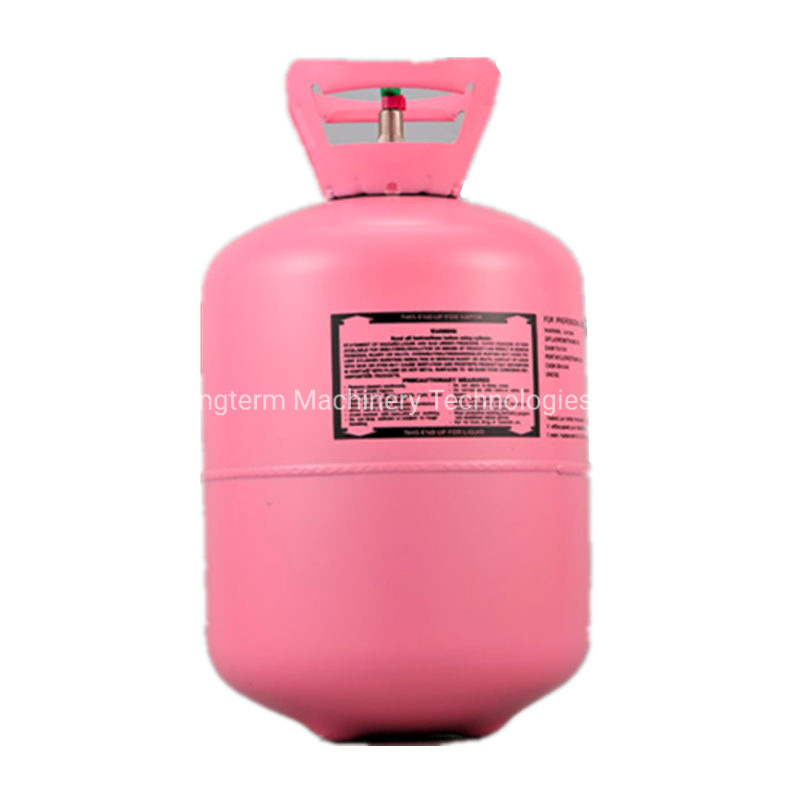

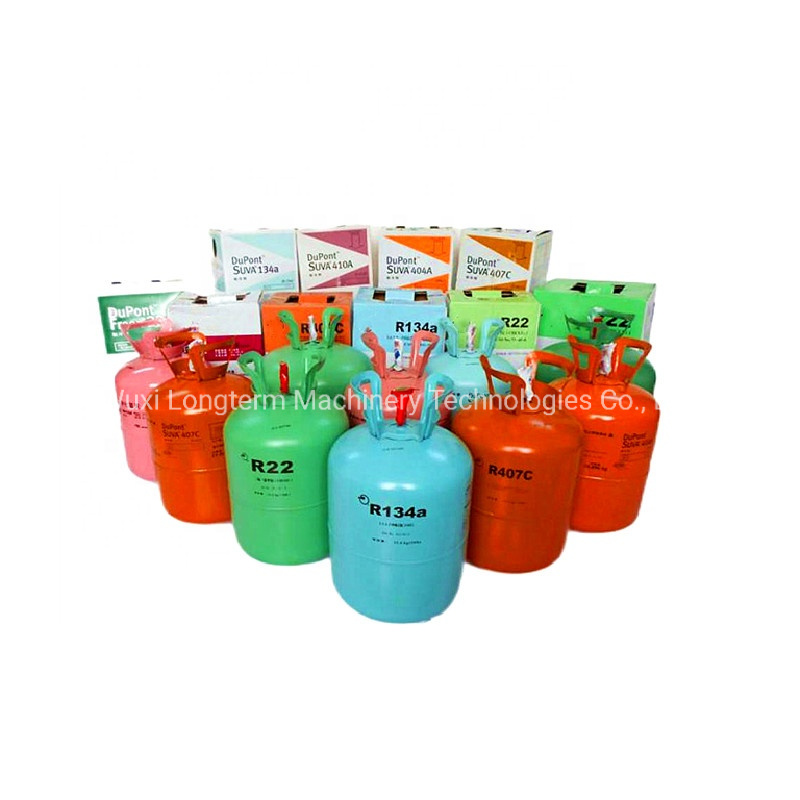

1. Workpiece name: Refrigerant cylinder
2. Workpiece material: iron
3. Heating energy: natural gas Application:

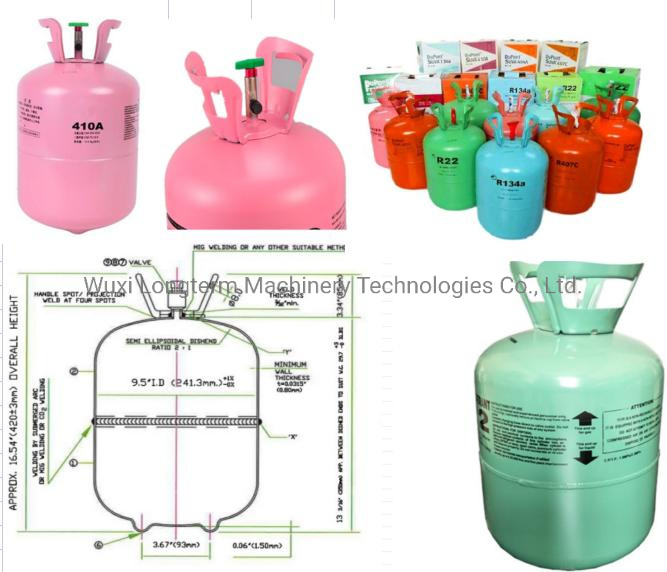

1. Wide use in household and commercial refrigeration, and automotive air-conditioning. Properties make R410A suitable for use in medium temperature food cabinets, water chillers and fountains, heat pumps and dehumidifiers.
2. Increasing use as a replacement for CFC-12.
3. Blowing agent for various foams.
4. Propellant for aerosol pharmaceuticals, lacquers, deodorants, perfumes, mousses, air fresheners, insecticides, cleaning and other household products.
Punching, Stretching According to the specifications of the workpiece, punch the workpieces of corresponding specifications; After the workpieceis punched, the upper and lower bottle bodies are stretched (automatic stretching is adopted to reduce the unsafe hidden dangers caused by manual operation); (according to needs, the upper and lower bottles are equipped with a set of stretching machines for automatic punching , Automatic trimming, automatic joggling)
|No. ||Process name ||Temperature /ºC ||Time /min ||Remarks |
|1 ||Punch || || || |
|2 ||Automatic stretching, punching, trimming, joggling || || || |
|3 ||Welding rupture disc || || || |
|4 ||Upload || || || |
|5 ||Pre-degreased ||RT ||1.5min || |
|6 ||Degreasing ||RT ||3.0min || |
|7 ||Washed 1 ||RT ||1.0min || |
|8 ||Washed 2 ||RT ||1.0min || |
|9 ||Silane ||RT ||1.5min || |
|10 ||Washed 3 ||RT ||1.0min || |
|11 ||Washed 4 ||RT ||1.0min || |
|12 ||Moisture drying ||120~150ºC ||16.0min ||Natural gas heating |
|13 ||Download || || || |
|14 ||Welding Valve || || || |
|15 ||Welding handle || || || |
|16 ||Circumferential welding || || || |
|17 ||Hydro testing || || || |
|18 ||Moisture drying ||80~100ºC ||20.0min ||Natural gas heating |
|19 ||Paint spraying || || ||Automatic spray + manual spray |
|20 ||Paint drying ||80~100ºC ||40.0min ||Natural gas heating |
|21 ||Cool down || || || |
|22 ||Download || || || |
|23 ||Silk printing, coding || || || |
|24 ||Package || || || |
|25 ||Warehousing || || || |

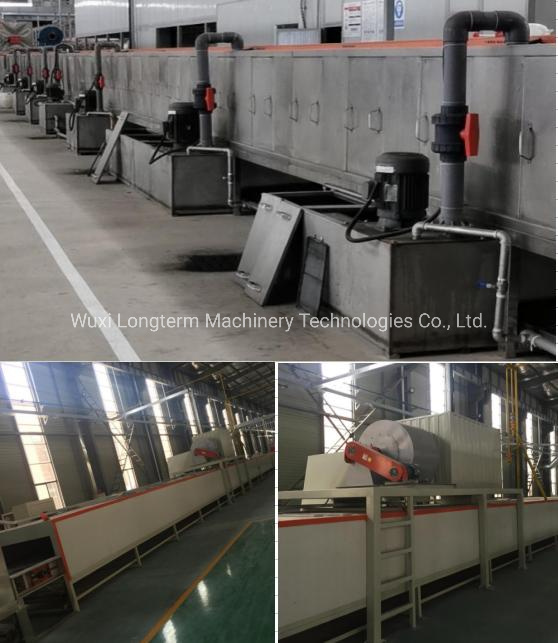

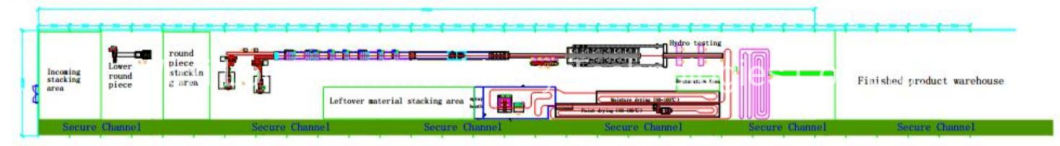

Desktop pretreatment and moisture drying equipment Process flow:
Upload→ pre-degreasing (RT*1.5min) Welding and pressure test equipment
→ dripping water (1.2min)
→ degreasing (RT*3.0min)
→ dripping water (1.5min)
→ washing 1(0.8min)
→ dripping (1.0min)
→ washing 2 (0.8min) )
→ dripping water (1.5min)
→ silane (1.5min)
→ dripping water (1.5min)
→washing 3 (RT*0.8min)
→ dripping water (1.0min)
→ washing 4 (0.8min)
→ dripping + blowing water 1.4min
→ water Drying (16.0min)→Download
After the moisture is dried, it is connected to a flat conveying line to welding.

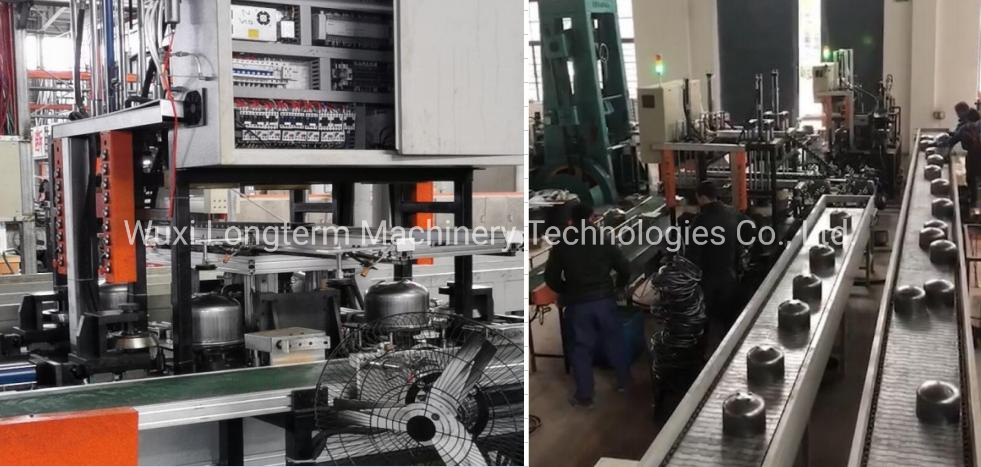

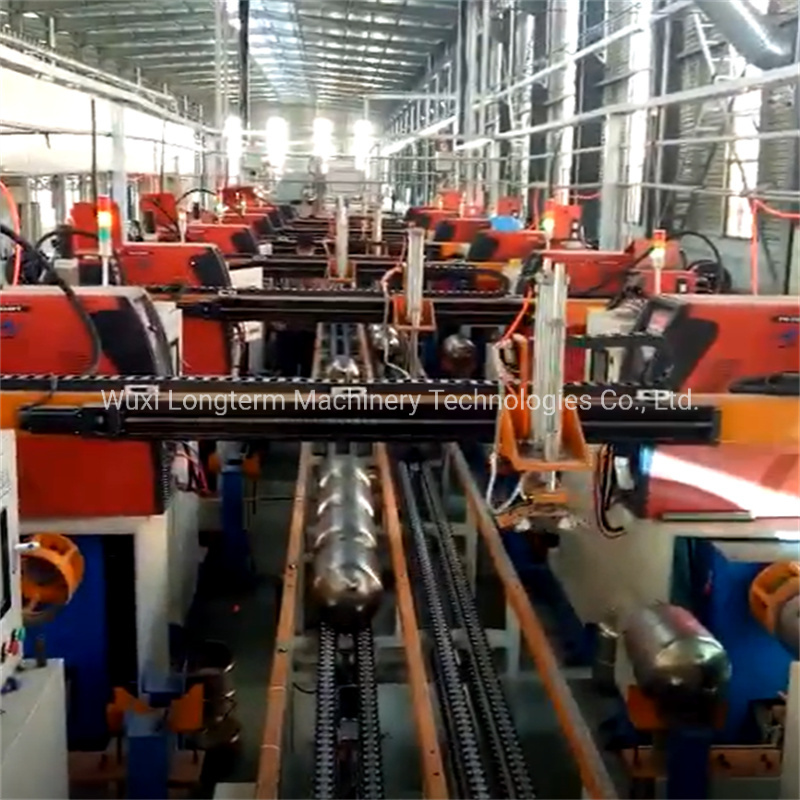

After the half-bottle body is assembled, it enters the welding process.

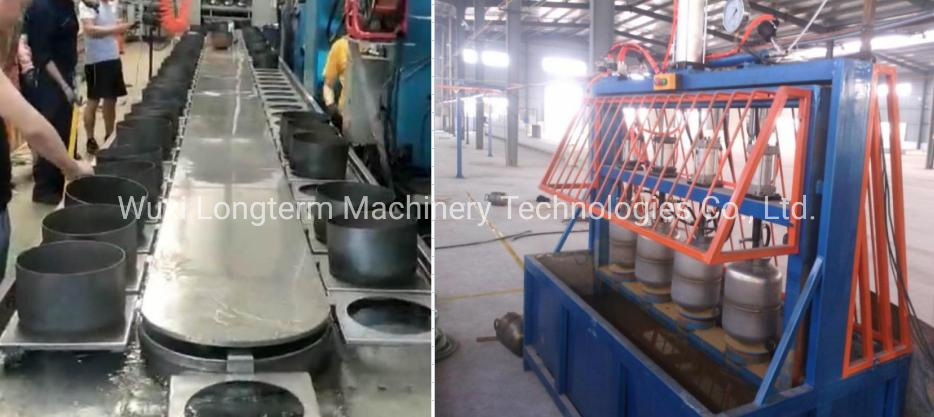

After the bottle body is welded, it will automatically flow to the chain conveyor line behind the welding machine, and then be transported to the pressure test conveyor line after the automatic grinding and welding machine.

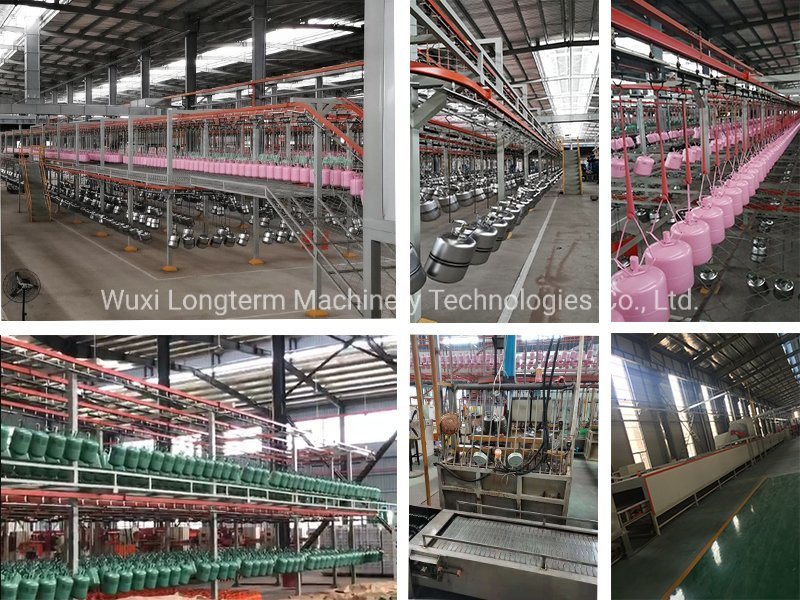

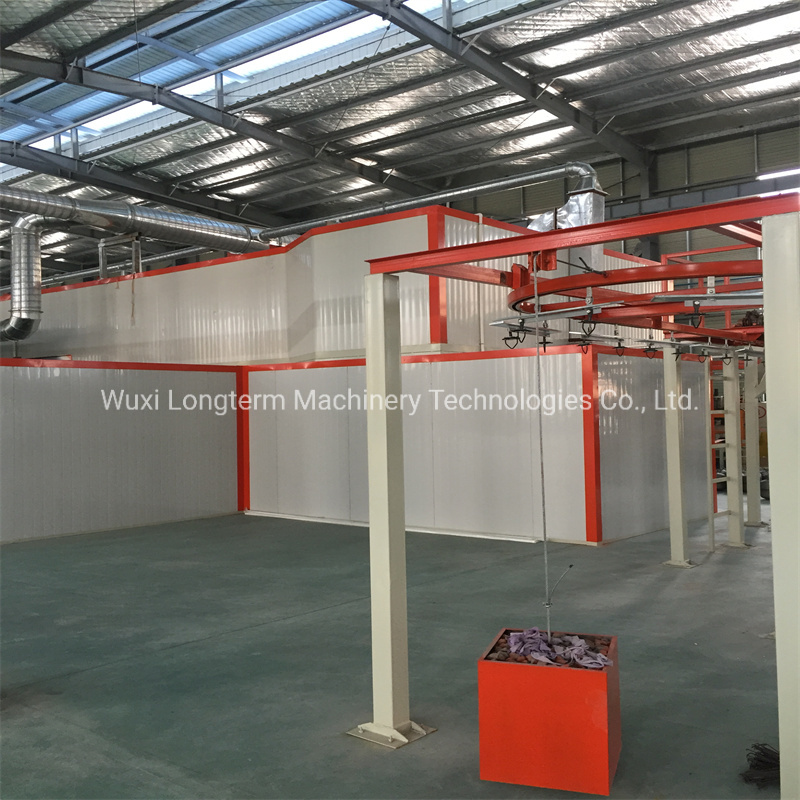

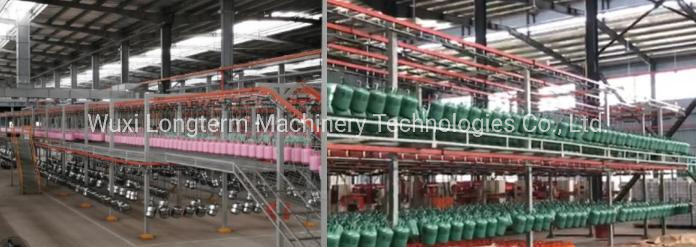

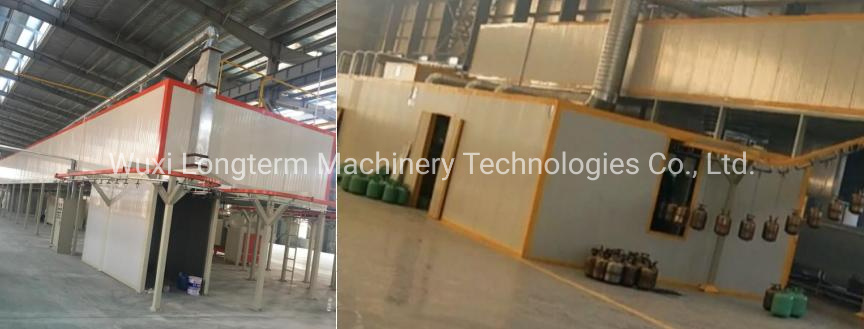

Moisture drying and paint drying system
After the pressure test is completed, proceed to the next process, moisture drying and powder spraying
The heating of the drying tunnel adopts the hot air circulation method. Its advantage is that the temperature in the drying tunnel is uniform, and the temperature difference between the middle and the lower three points along the cross section of the track is less than ±5ºC. The heating chamber is arranged in the lower part of the box. The hot air blower is used for circulation, and the circulation method adopts the downward air supply and the downward return air mode, which eliminates the upper return air and external return air ducts, and reduces the heat loss. Company Introduction Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-welding equipment (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related equipment.Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.
FAQ Refrigerant cylinder manufacturing equipment Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
To enable me give you correct proposal for correct machines, please tell me following details:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?
3.Are you new in this area or you already have some machines in the workshop?
4.Capacity you require, i.e. how many pieces and sizes you want to make per day?
