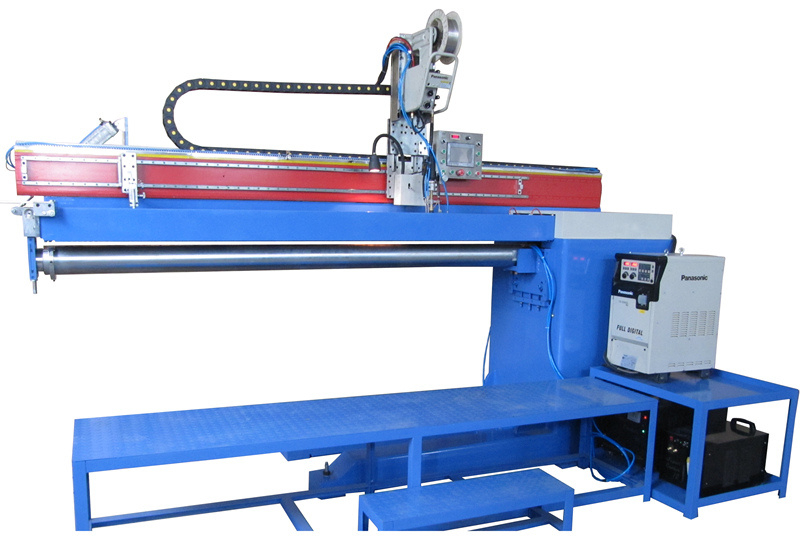

Longitudinal Seam Welding Machine for LNG Cylinders

MIG welding commonly function to weld seams at outside of inner cylinders. MIG welding is with high welding speed, 1000mm per minute. SS 304 below 4mm without opening groove could be full- penetration welded by one time. One side welding with double-side forming.
TIG welding commonly functions to weld seams at the outside surface of tanks.

Quantity:
  • HLT
  • LTM
  • 85153900

Product Description

Longitudinal Seam Welding Machine for LNG cylinders




Product Description

Item No. HLT-2000l
Features Strong and reliable structure & design
Fast welding speed (1m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding system
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union
OEM & ODM OK


Data sheet

Description Data
Effective length 3000
Clamping: pneumatic with keyboard and clamping board
Clamping control footswitch/remote control
Trolley motion speed 1000mm/min
Wall thickness 0.35-1.5mm
Mandrel cooling external water cooling
Cable assembly drag chain


FAQ: Solar water heater manufacturing equipment
Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type
Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
1.    Whether you have technical drawing of solar tank or not.
2.    Material of tank (galvanized steel or stainless steel 304,316)
3.    Thickness of the tank
4.    Diameter range of tank
5.    Length of tank
6.    Are you new in this area or you already have some machines in the workshop?
7.    Capacity you require, i.e. how many pieces and sizes you want to make per day?

Company Information
Our company is located in Wuxi new district, i.e.Wuxi National Hi-Tech Development Zone  where there are more than 300 international famous companies.
       Our company was established in the year of 2000, covering area more than 10000m2 and building area more than 8900m2. There are more than 100 empolyees working in our factory, among them, there are 10 engineers  for design machineries.
       We are very strong in stainless steel with thickness 0.31-3.0mm and carbon steel/galvanized steel 3-12mm with more than 30years of experience. We were listed as 'China Famous Brand' since 2010.  Our machineries were exported to Europe, Asia and South America. The main machineries are TIG, MAG and MIG welding machines for different application, including longitudinal seam welding machine and circumferential seam welding for solar water heater tank, LPG and LNG cylinder
