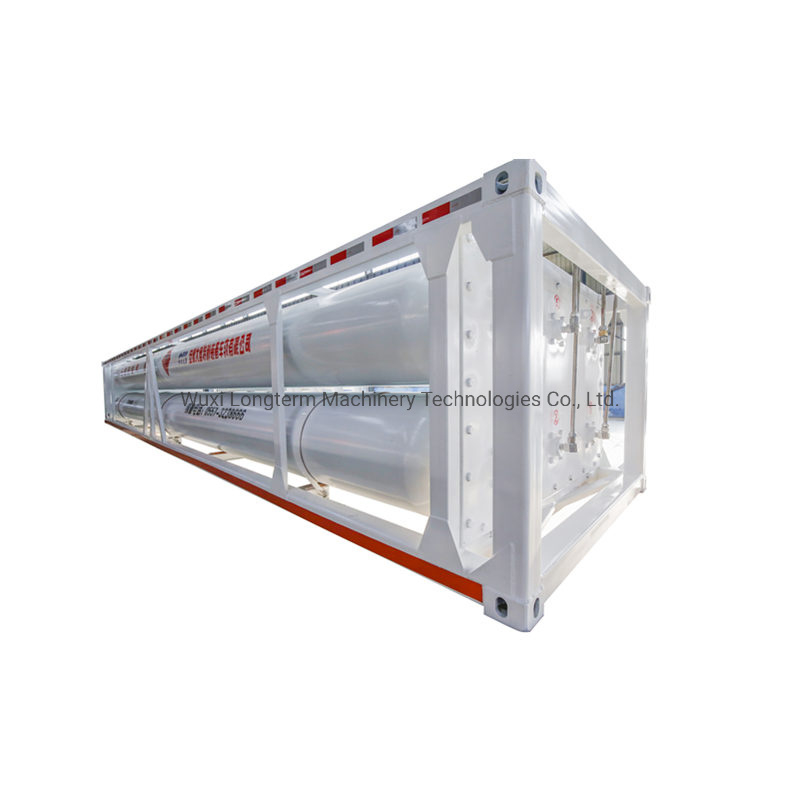

Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank

Quantity:
  • HS

  • Liquefied Gas

  • High Pressure (10.0MPa≤p<100.0MPa)

  • New

  • 250bar Storage Tank CNG Steel Jumbo Cylinders

  • CNG

  • 440L/470L/520L

  • 16.6MPa

  • 527kg/555kg/603kg

  • 2120mm/2235mm/2428mm

  • ISO11120

  • CNG Transportation

  • Qf-2/Qf-6A/Cga-540/Cga-580 etc

  • Standard Seaworthy Package

  • 440L/470L/520L

  • HS

  • China Jiangsu

  • 8716319000

  • 10000 Piece/Month

  • Available | Customized Request

Product Description

Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen Cng Cylinder Tube Bundle Container Tank

Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank
Product Description
This product is a mobile pressure vessel which is connected by cylinder group and container frame, pipeline, safety accessories, loading and unloading accessories and other components.
It is the special mobile pressure vessel that suitable for storing and transporting compressed gas such as air, hydrogen, natural gas and so on, suitable for road transportation, sea and land combined transportation.



Advantage
1. Large filling capacity, light weight, cost-effective;
2. High safety: the bottle material is good plastic toughness, uniform force, reasonable stress distribution;
3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;
4. Both ends of the bottle body are provided with safety discharge device. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will work automatically to ensure the safety of property and personnel.

Technical parameters
Skid size Working Pressure Tube Diameter Tube QTY Water Volume Gas Weight Gas Capacity
bar mm Kg SCM
20ft 250 559 8 8.68 1899 2637
20ft 250 559 12 13.02 2848 3955
40ft 250 559 8 19.44 4252 5903
40ft 250 559 9 21.87 4783 6641
40ft 250 559 10 24.30 5315 7380
40ft 250 559 11 26.73 5846 8117
40ft 250 559 12 29.16 6377 8855

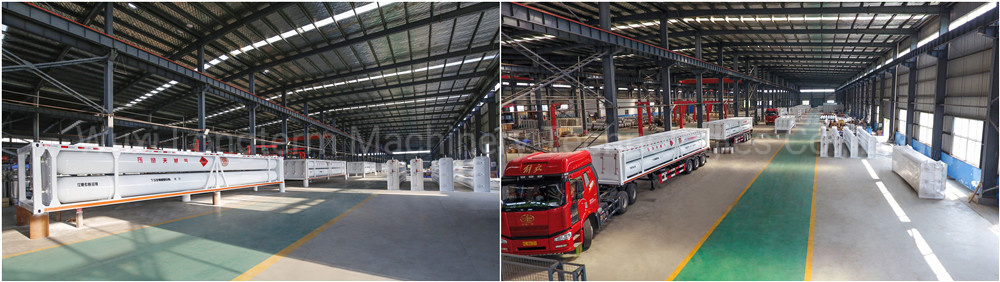

Production Site
Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank

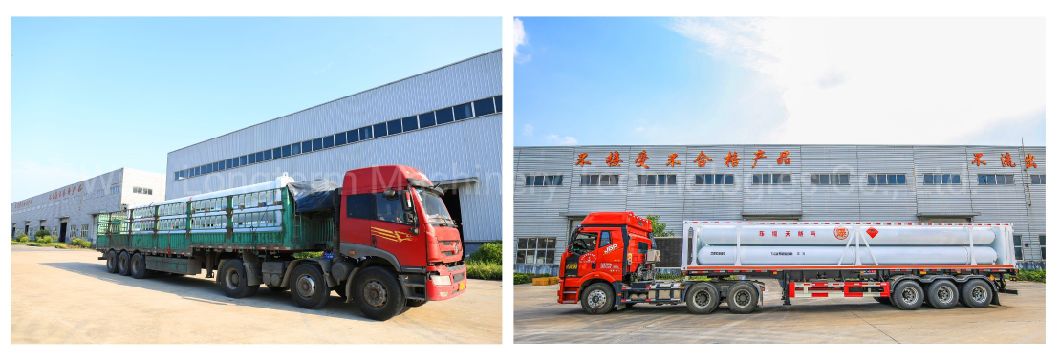

Package & Delivery

Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank

Certifications

Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank

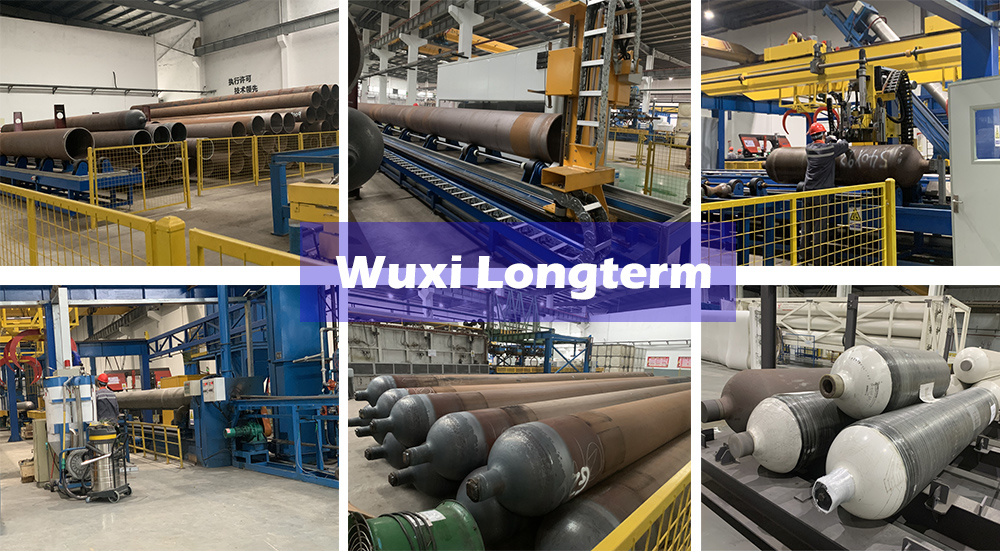

Company
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank
Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank

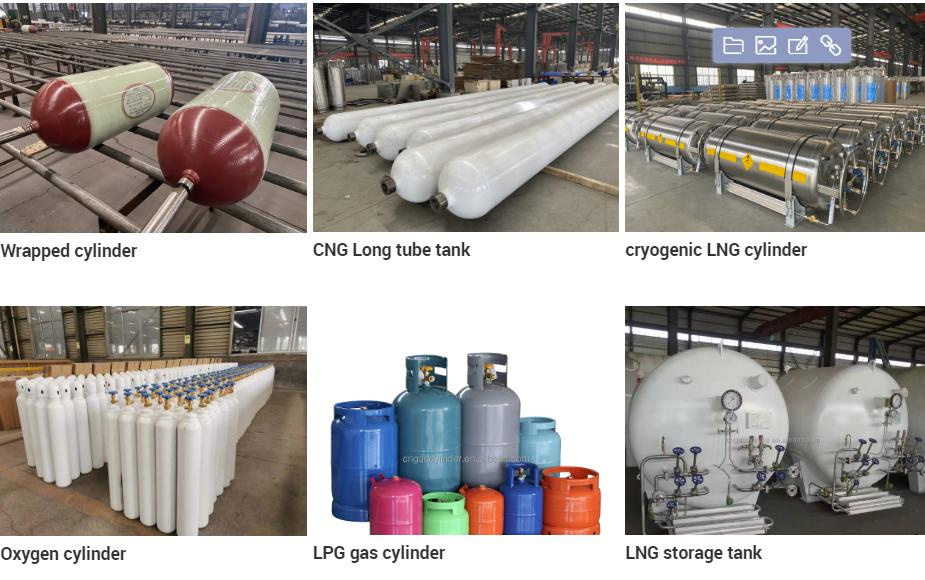

Related Products

Large Capacity Seamless Steel Gas Cylinder N2 He Air Hydrogen CNG Cylinder Tube Bundle Container Tank

FAQ
1. What's The Guarantee Period On Our Products ?
- All Products We Export Has 1 Year Guarantee Period, And For The Beam Is Lifetime Promise. As Exporting Experience For Years, All Products From Our Factory Can Meet The Exporting Country's Standards On Vehicles, All Vehicles Will Be Built Upon The Related Countries' Road Condition, And Our Sales Manager Will Provide Customer The Best Suggestions Before Placing The Order. If Some Easy Weary Small Parts, We Can Offer Free In 6 Months.

2. If Customized Service Provided ?
- Yes, Please Contact Our Sales Manger, We Can Offer Customized Service On Vehicle Design / Painting, Etc.
- Oem Available

4. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing, We Need To Adjust The Height And Overhang To Couple With The Using Truck.

5. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries, 25 Workdays Will Be Achieved.

In order to give you the accurate price, we need to check some information:
1.Working pressure?
2. Size, how many liters?
3.Certificate?
4. What's the medium?
