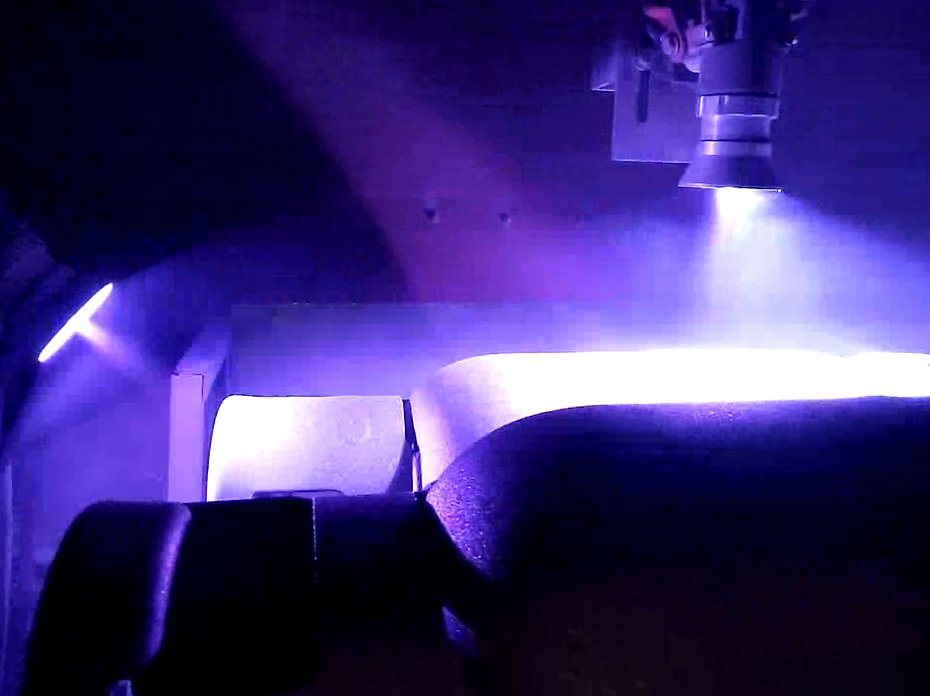

Zinc metalizing line:
Arc spraying zinc machine total power: 15KVA*N
Vacuum cleaner engine power: 5.5KW
The compressed air input pressure: 0.55~7Mpa
Diameter of the zinc wire: 2-3mm
Rated input voltage: 220V~280V
Productivity: Max. 90 pcs/hour
Full load power of zinc metalizing line: 50KW
Consumption of 0.5-0.7Mpa compressed air : 8m³/min
Automatic lpg gas cylinder production line
Production Process Mechanical decoiler, straightening and blanking line Deep drawing machine Automatic flushing machine for deep drawn heads
|No ||Machine name |
|1 ||Mechanical decoiler,straightening and blanking line(with scrap shearing machine) |
|2 ||Deep drawing machine |
|3 ||Auto flushing machine for deep drawn heads |
|4 ||Automatic trimming &polishing machine |
|5 ||Automatic hole punching &logo making machine |
|6 ||Automatic socket welding machine |
|7 ||Automatic handle welding machine |
|8 ||Lower end dish trimming and polishing machine |
|9 ||Lower end dish automatic joggling machine |
|10 ||Automatic bottom base welding machine |
|11 ||Assembly and spot welding machine |
|12 ||Circumferential welding machine |
|13 ||LPG gas furnace(heat treatment) |
|14 ||Automatic online hydro testing machine |
|15 ||Drying oven |
|16 ||Shot blasting machine |
|17 ||Zinc metalizing machine |
|18 ||Powder coating line or Liquid Painting Line |
|19 ||Valve mounting machine |
|20 ||Air leakage testing machine |
|21 ||Printing machine |
|22 ||Handle decoiler &straightening and cutting line |
|23 ||Handle hole punching machine |
|24 ||Hydraulic Presser-letter stamping(Optional) |
|25 ||Handle end bending machine(Optional) |
|26 ||Hydraulic coding machine |
|27 ||Handle rolling machine |
|28 ||Handle top R forming machine |
|29 ||Handle low R forming machine |
|30 ||Vertical Bottom base rolling machine |
|31 ||Double welding position welding fixture |
|32 ||Base forming machine |
|33 ||Hydraulic Precision sheet shearing machine(33KG only) |
|34 ||Sheet rolling machine(33KG only) |
|35 ||Automatic Seam Welder(33KG only) |
after deep drawing, the heads must be flushed before entering into the automatic welding machine Automatic trimming & polishing machine with arms for both end dishes
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line Automatic hole punching & logo making machine with arms for female half/top half
Punch the hole on top of the cylinder& stamp the logo Automatic socket welding machine with arms
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time Automatic handle welding machine with arms
Complete cylinder handle grip automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding. Automatic joggling machine with arms for male half/bottom half
complete with in and out conveyor, and with mechanical arms Automatic bottom base welding machine with arms
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding. Longitudinal seam welding machine
not for 12.5 or even smaller cylinders only for the bigger size cylinders Assembly &spot welding machine
To assemble both halves of the cylinder together and get ready for welding Double head Circumferential welding machine
fully automatic welding and monitoring. Hydraulic Precision Sheet Shearing Machine Four-roller rolling machine
incl. the loading and unloading LPG gas furnace
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.
Automatic hydro testing machine
For 35kg. One cylinder one pressure gage, can control separately.1, Air pressure:0.6Mpa 2.Testing pressure:3.2Mpa 3,Motor pressure:3KW, 8 stations are necessary Drying oven
the cylinder must be dried before blasting Shot blasting machine
Remove the rust, oxide layer and burr free of pipe. Clean welding slag, showing a metallic luster,
make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel tube Zinc metalizing machine Powder coating line
Coating the cylinder surface to protect the cylinder from rusting Valve mounting machine Automatic Air leakage testing machine
fully automatic leakage testing Printing machine
Print the paint and Logo or information
Conveyor including motor and bends
Steel Coil Decoiler and straightening
315 Ton hydraulic presser
for pressing the stamp on handle
Top quality 200T Mechanical punching machine
Punching the hole from the steel
Handle end bending machine
bend the handle end (optional)
Handle rolling machine
Roll the steel become the handle shape
160T Hydraulic Presser
Hydraulic coding machine
Steel Coil Decoiler and straightening - share with handle decolier & straightening
Vertical base Rolling machine
Double welding position welding fixture
can do two welding an the same time
Base forming machine/100T mechanical punching machine
Forming the base
If you interested and need more picture and more information, you are more than welcome to contact us. AND we can customize the equipment to follow your requirements.
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
