LPG Gas Cylinder Manufacturing Equipment Bottom Base Welding Machine

Quantity:
  • HLT

  • Max.2000mm

  • 250-400mm

  • 2.5-6mm

  • 6kg/12kg/15kg/50kg

  • 0.5-0.8mm

  • 250~800mm

  • 5-400A

  • 1000mm/Min

  • Standard Seaworthy Package

  • SGS, ISO9001

  • HLT

  • Wuxi, China

  • 85158000

  • 50000PCS/Year

  • Available | Customized Request

Product Description


LPG gas cylinder manufacturing equipment bottom base welding machine

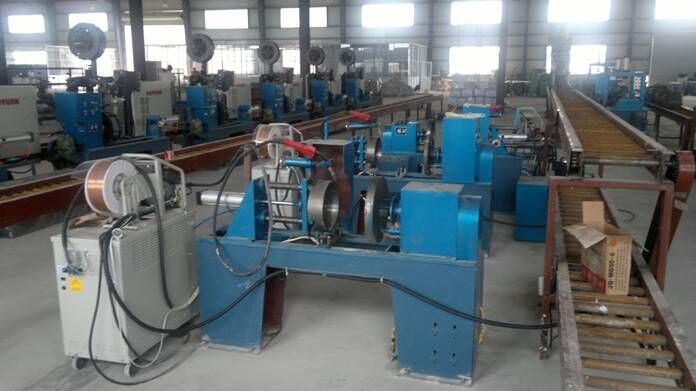

Detailed pictures of bottom base welding machine:
LPG Gas Cylinder Manufacturing Equipment Bottom Base Welding Machine
LPG Gas Cylinder Manufacturing Equipment Bottom Base Welding Machine


Application:

Application cylinder size: 6kg/12kg/15kg/50kg and customrized

Producing line machine list


Machine list:

Machine

Quantity (set)

1.Power press

1

2.Hydraulic Shell Forming machine

2

3.Automatic trimming machine

3

4.Hole punching machine

1

5.End dish shaping machine

3

6.Valve Seat Welding Machine

2

7.Bottom base welding machine

2

8.Protection enclosure welding machine

2

9.Metal printing machine

2

10.Assembling Machine

2

11.Circumferential Seam welding machine

6

12. Annealing furnace

1

13.Shot blasting machine

1

14.Sandblast machine

1


Technical data
Item No. HLT-12.5KG
Features Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding machines
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union
OEM & OEM OK

Longitudinal seam welding Data sheet
Description Data
Effective length 1500
Clamping pneumatic with keyboard and clamping board
Clamping control footswitch/remote control
Trolley motion speed 100-500mm/min
Wall thickness 2.0-4.0mm
Mandrel cooling external water cooling
Cable assembly drag chain

circumferential seam welding
Description Data
Payload capacity 200kg
Wall thickness 2.0-4.0mm
Rotation speed 0.05-0.5rpm
Diameter coverage OD300-OD500mm
Speed regulation AC frequency conversion
Suitable for work-piece length 1500mm
Clamping pneumatic cylinder
Support manual operation support





FAQ

LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
