LPG Gas Cylinder Body Welding Machine

  • longterm machinery

  • Product Line

  • 2.65-6mm

  • 2mins/PC

  • Mag Welding

  • 6kg, 12kg, 25kg, 48kg, or Customized

  • 00-500mm/Min

  • Footswitch/Remote Control

  • 250-400mm

  • <=120mm

  • Acceptable

  • External Water Cooling

  • Standard Seaworthy Package


  • China

  • 50/Year

  • Available | Customized Request

Product Description

Circumferential Welding Machine of 15kg Cylinder Production
Pressure cylinder welding machine is used for MAG welding of LPG, LNG cylinder, fire extinguisher bottle, etc...
Vessel diameter DN250-800mm
Wall thickness 2.5-8mm
Welding speed Depends on welding machine, Panasonic or Lorch
Material Carbon steel or stainless steel
Welding torch Double or single welding torch
Production capacity roughly 333pcs/8hours
LPG Gas Cylinder Body Welding Machine

Auto Circumferential & Linear Welding Machine
Features Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
Water cooling with copper backing covered with Argon gas
Applications Our Circumferential Welding Machines are most commonly used in tank production.
? LPG cylinder
? LNG gas station
? Cryoease
? Storage tank
Range of Working Piece Range of working piece Thickness of working piece: 2.5mm-6mm
Dia. of working piece: 250mm-400mm
Length of working piece: ≤1500mm, could be customized
Custom Designed Equipment Components For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical controls such as:
? Programmable Logic Controllers (PLCs)
? Standard Push Button Controls
? Emergency Stop Buttons
? Safety Sensors
? Audiovisual Alarms
? Data Acquisition
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding machines
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union
Longitudinal Seam Welding Machine
Description Data
Effective length 1500
Clamping pneumatic with keyboard and clamping board
Clamping control footswitch/remote control
Trolley motion speed 100-500mm/min
Wall thickness 2.0-4.0mm
Mandrel cooling external water cooling
Cable assembly drag chain

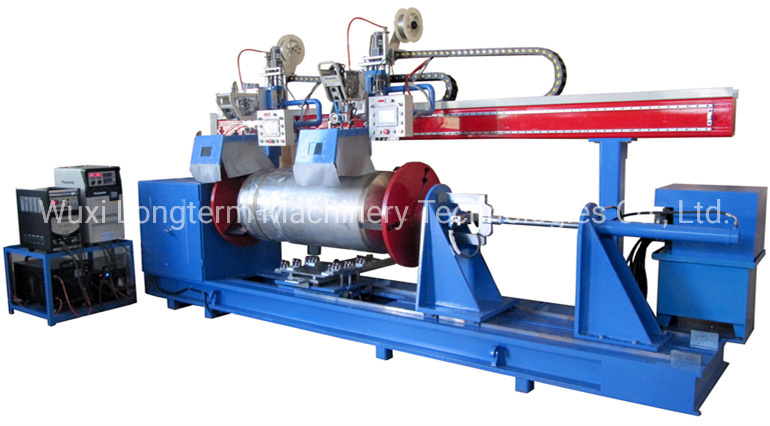

Circumferential Seam Welding Machine(Single Head & Double Heads Welding)
Description Data
Welding Speed 0-1000mm/min
Welding Current 5-400A
Payload capacity 200kg
Wall thickness 2.0-4.0mm
Rotation speed 0.05-0.5rpm
Diameter coverage OD300-OD500mm
Speed regulation AC frequency conversion
Suitable for work-piece length 1500mm
Clamping pneumatic cylinder
Support manual operation support
Capacity(for Double Heads Welding) 1.1or 2 torches are usually built in
2.Multiple torches up to 4-5
3.Adjustable for various thickness
4.Precision longitudinal track for smooth travel

LPG Gas Cylinder Body Welding Machine

Producing process chart
LPG Gas Cylinder Body Welding Machine

Producing Process
LPG Gas Cylinder Body Welding Machine

LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

Customer Reference List

1 .TK Group in Bangladesh

2. Hangzhou Yuhang Zhangshan Steel Cylinder Co.,Ltd., it is 3rd biggest LPG gas cylinder manufacturer in China, daily output is 18000pcs including all sizes from 2kgs to 50kgs.

3. TPA is manufacturing extremely high quality LPG cylinders for North America, European,UK and Australia., we supplied automatic welding line for their China plant in Dongguan. Now we are building new LPG gas cylinder factory in Vietnam, Hangphone, at the end of August , 2017, it will be set up and commissed.

4: Shandong Huanri Group co.,Ltd.,, they are biggest and strongest cylinder manufacturer in China, they bought our machines both for 12.5 and15kgs manufacturing and 50kgs manufacturing.

5.AYGAZ in Turkey,, last week, they have already ordered the complete welding line at us after comparing with SAW welding.

6. Manchester Tank from USA

7. Sahuwala Cylinder in India

8 . Delta LPG Limited (SEACOM Group), they are setting up a new plant and we will take responsible for their 12.5kgs and 33kgs production line.
To enable me give you correct proposal for correct machines, please tell me following the details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
