LPG Cylinnder Low Halves Automatic Joggling Machine

  • 12kgs

  • Od300-Od500mm

  • LPG, LNG, Solar Water Tank

  • Manual Operation Support

  • Pneumatic Cylinder

  • AC Frequency Conversion

  • Direct Current

  • Standard Seaworthy Package

  • SGS

  • HLT

  • China Jiangsu

  • 844790900

  • 300 Piece/Year

  • Available | Customized Request

Product Description

LPG Cylinnder Low Halves Automatic Joggling Machine
LPG cylinnder low halves Automatic joggling machine

1.Product description
This production line is specially used for 12kg cylinder automatic and continuous circumferential welding after assembly of upper shell and lower shell. Provide the users a complete, high efficiency and high quality solution for circumferential welding line to maximumlly improve the competitiveness of enterprises products.
It adopts automatic circumferential welding machine, magnetic suction loading arms device, three-station feeding mechanism. This kind of devices can complete the workpiece loading and unloading action automatically to achieve high efficient, safe interlocking, coordination and linkage. Maximumlly improving the working efficiency, reducing laor-assisted operations and labor intensity. Getting rid of the dependence on the operators, while stably improving the quality of cylinder circumferential welding seam.
1.1 Main technical and economic indicators
1) Production capacity of this production line: 1500pcs/7.5hours
2) One machine working efficieny: 88seconds/cylinder,
elaboration: welding time: 68 seconds + feeding time: 20 seconds. (cylinder diamter: 360mm)
3) Operator: 3 persons
2 persons take charge of 2 sets of vertica assembly & spot welding machine, 1 person takes charge of 5 sets of circumferential welding machine.

2.Production line Machine list
7 Automatic welding line
7.1 Automatic trimming & polishing machine
7.2 Automatic hole punching & logo making machine for female half/top half
7.3 Automatic socket welding machine
7.4 Automatic handle welding machine with arms
7.5 Automatic joggling machine
7.6 Automatic bottom base welding machine
7.7 assembly & spot welding machine
7.8 Circumferential seam welding machine

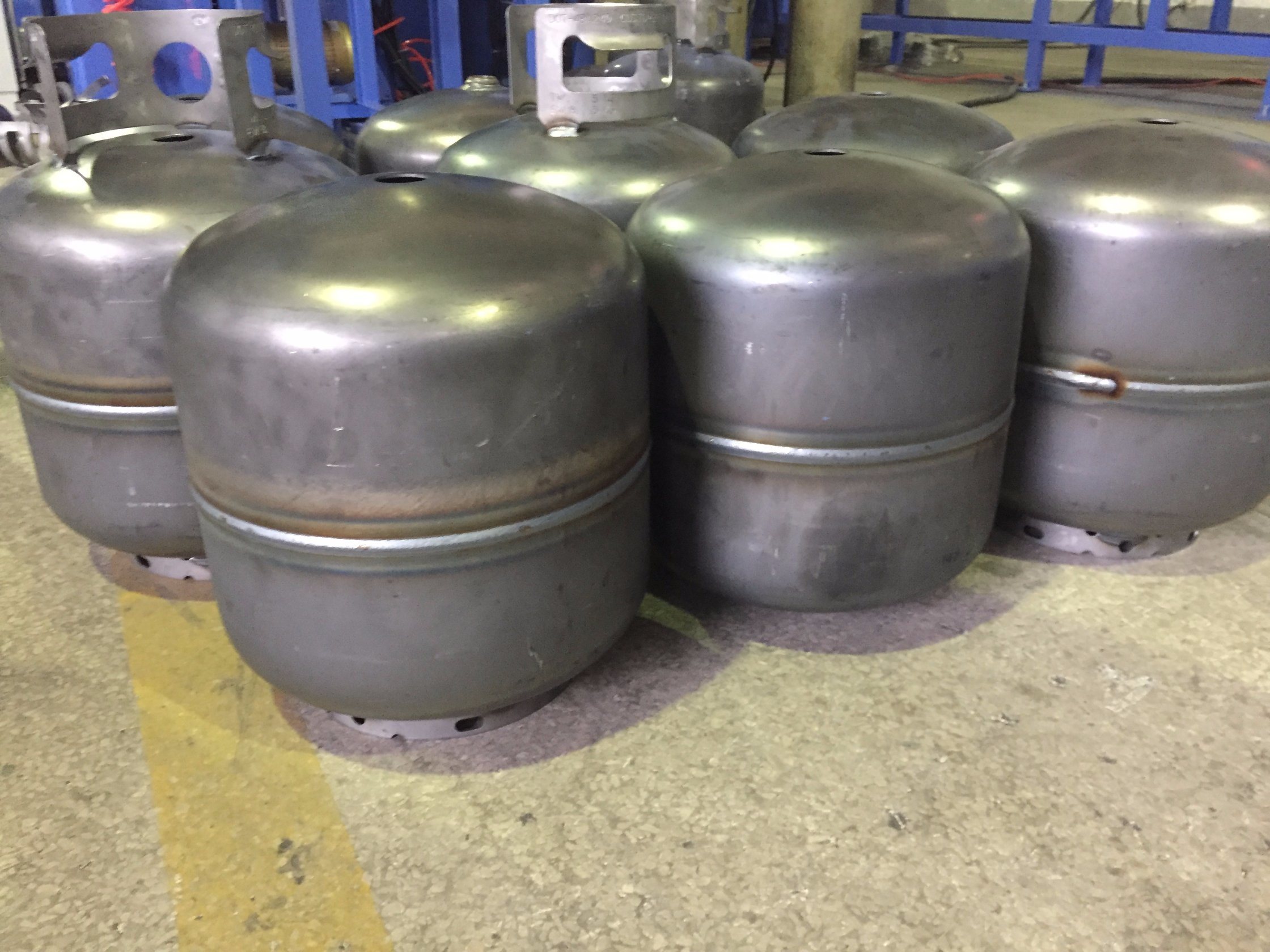

3.All kinds of cylinder

LPG Cylinnder Low Halves Automatic Joggling Machine

4.Automatic trimming & polishing machine
5.Automatic hole punching & logo making machine for female half/top half
6.Automatic socket welding machine
7.Automatic handle welding machine with arms
LPG Cylinnder Low Halves Automatic Joggling Machine

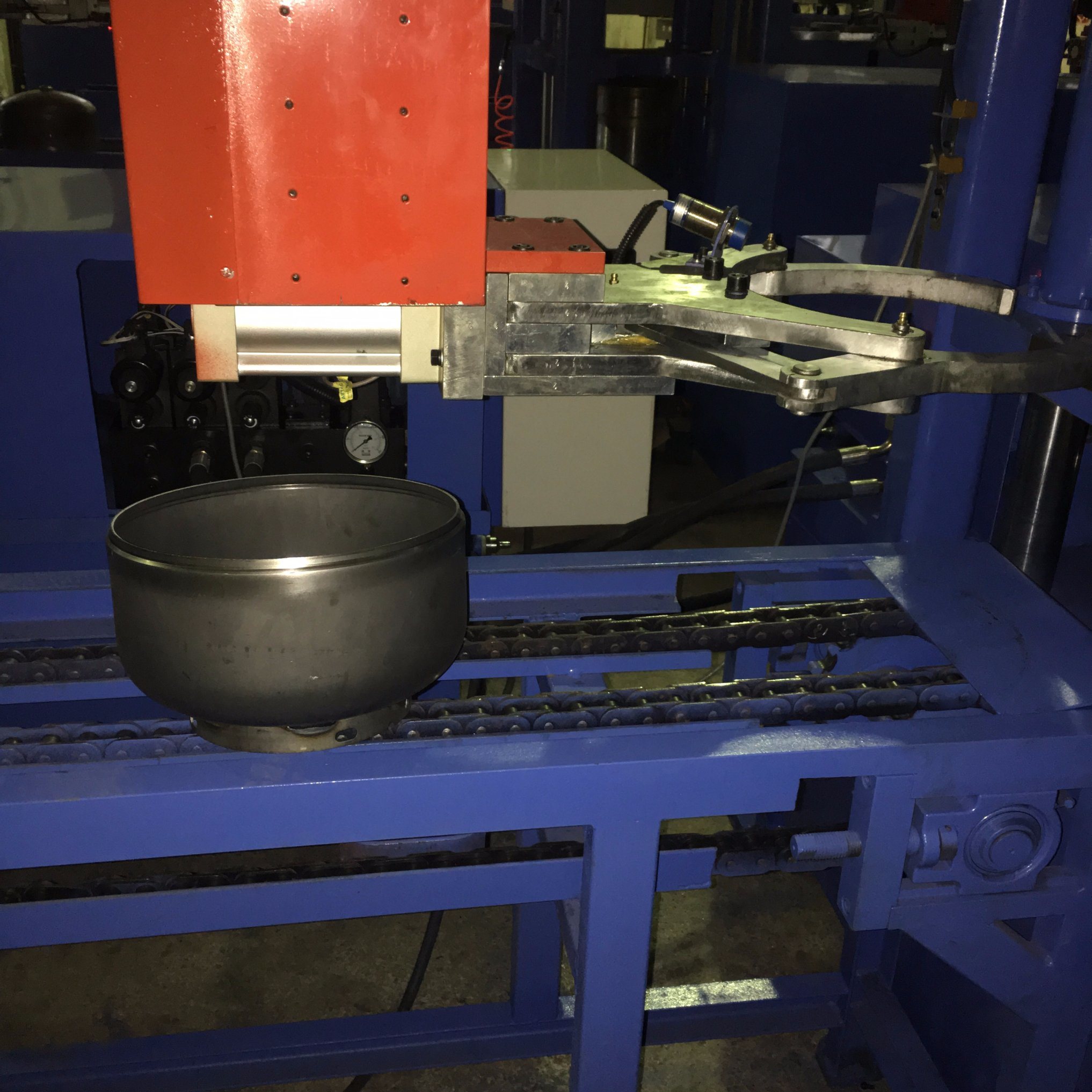

8.Automatic joggling machine
9.Automatic bottom base welding machine
10.Bottom assembly machine & spot welding machine

11.Circumferential seam welding machine

LPG Cylinnder Low Halves Automatic Joggling Machine

12.High quality welding line

LPG Cylinnder Low Halves Automatic Joggling Machine

13.picture of factory

LPG Cylinnder Low Halves Automatic Joggling Machine

14.Company information
Our company boasting tremendous technological strength,rich experience and one high qualitytechnical team,our company has been engaged in research of welding technology for more than 40 years.Machineries have been expored to Europe,Asia, and America with good quantity and enjoyed good fame.
Our company is specialized in designing and producing complete sets of Auyo.welding equipment(TIG,MAG,PAW),Auto.welding system integrations and related equipments.Being eide used in lines of aerospace industry,chemical industry mechanical industry,pressure vessel making,water heater making and stainless steel products

15.FAQ for LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg, 15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce? (6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i. e. How many pieces and sizes you want to make per day?
