| Quantity: | |
|---|---|
HLT
New
333PCS/8hours
Dn250-800mm
2.5-8mm
Double or Single Welding Torch
HP295
<45dB
1 Year After Delivery
6kg, 12kg, 25kg, 48kg, or Customized
Ok
100-500mm/Min
Standard Seaworthy Package
ISO9001
LONGTERM
China
830710000
500
Available | Customized Request
Product Description
Modle | Auto Circumferential & Linear Welding Machine |
| Features | Strong and reliable structure & design Fast welding speed (0.8m/min) Low noise level<45dB Easy operation Water cooling with copper backing covered with Argon gas |
| Applications | Our Circumferential Welding Machines are most commonly used in tank production. ? LPG cylinder ? LNG gas station ? Cryoease ? Storage tank |
| Range of Working Piece | Range of working piece Thickness of working piece: 2.5mm-6mm Dia. of working piece: 250mm-400mm Length of working piece: ≤1500mm, could be customized |
| Custom Designed Equipment Components | For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical controls such as: ? Programmable Logic Controllers (PLCs) ? Standard Push Button Controls ? Emergency Stop Buttons ? Safety Sensors ? Audiovisual Alarms ? Data Acquisition |
| Standard Assessories | water cooling welding torch automatic cycling water tank Panasonic welding machines |
| Packing Details | Plywood cases/boxes |
| MOQ | 1set |
| Warranty | 1 year after delivery |
| Payment | T/T,L/C,D/P, Western Union |
| OEM & OEM | OK |
| Longitudinal Seam Welding Machine | |
| Description | Data |
| Effective length | 1500 |
| Clamping | pneumatic with keyboard and clamping board |
| Clamping control | footswitch/remote control |
| Trolley motion speed | 100-500mm/min |
| Wall thickness | 2.0-4.0mm |
| Mandrel cooling | external water cooling |
| Cable assembly | drag chain |

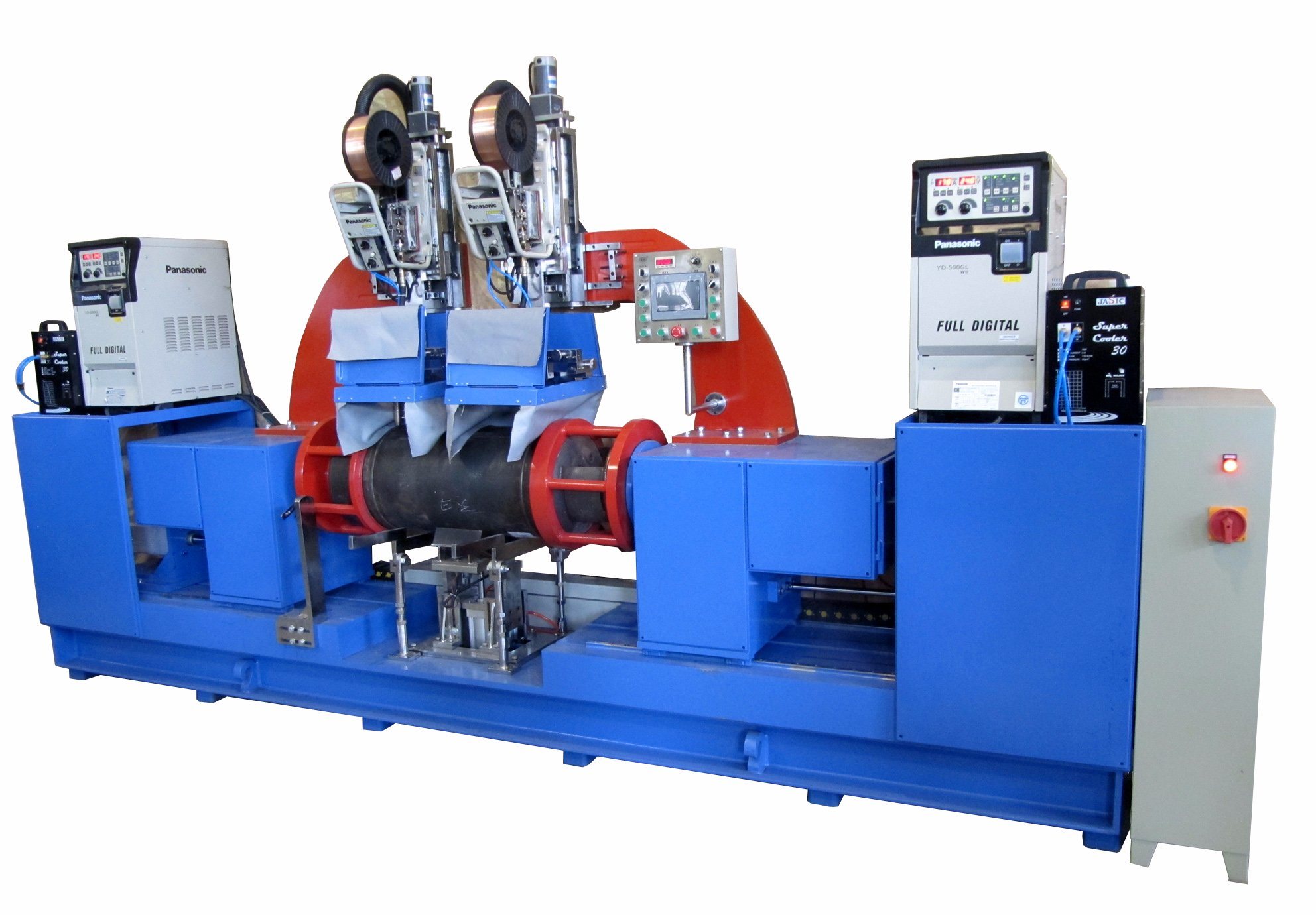

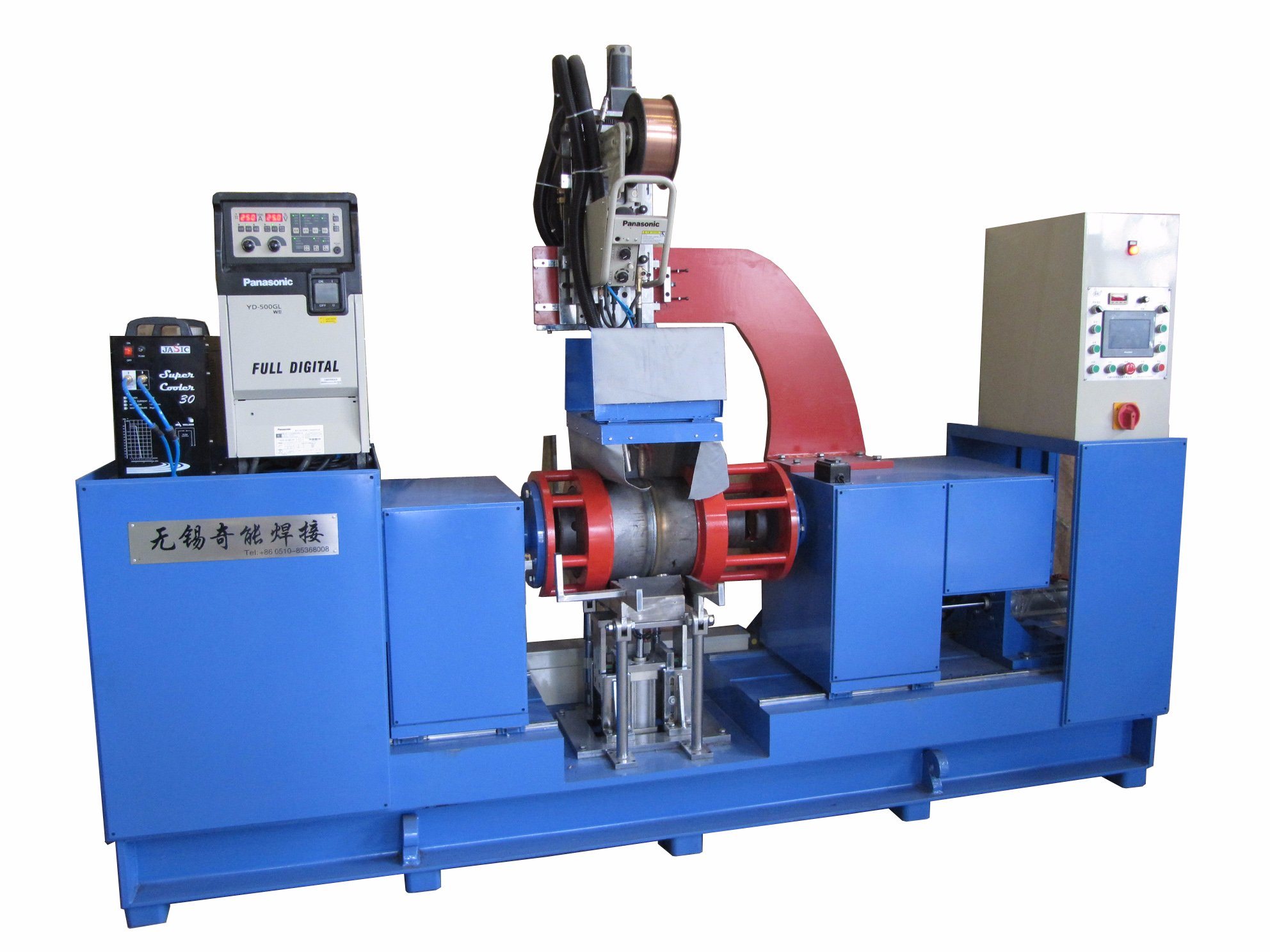

| Circumferential Seam Welding Machine(Single Head & Double Heads Welding) | |
| Description | Data |
| Welding Speed | 0-1000mm/min |
| Welding Current | 5-400A |
| Payload capacity | 200kg |
| Wall thickness | 2.0-4.0mm |
| Rotation speed | 0.05-0.5rpm |
| Diameter coverage | OD300-OD500mm |
| Speed regulation | AC frequency conversion |
| Suitable for work-piece length | 1500mm |
| Clamping | pneumatic cylinder |
| Support | manual operation support |
| Capacity(for Double Heads Welding) | 1.1or 2 torches are usually built in 2.Multiple torches up to 4-5 3.Adjustable for various thickness 4.Precision longitudinal track for smooth travel |
