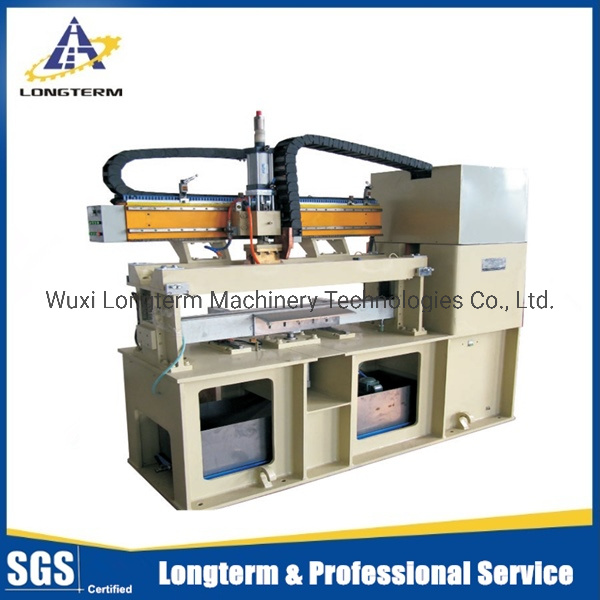

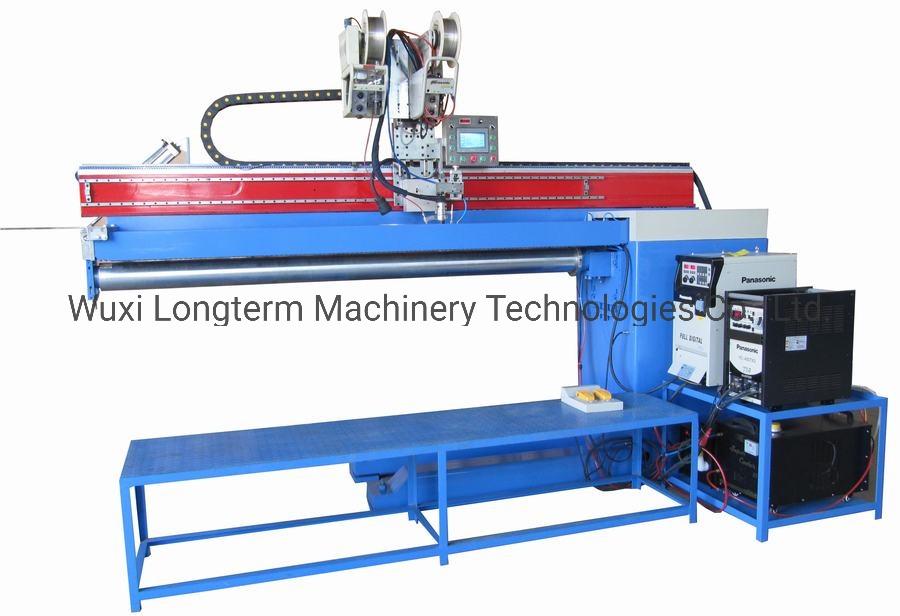

LPG Cylinder Auto Body Welding Machine

Quantity:
  • HLT

  • Can Be Customrized

  • AC Frequency Conversion

  • Pneumatic Cylinder

  • Manual Operation Support

  • LPG Cylinder Production Line

  • Standard Seaworthy Package

  • ISO9001

  • LONGTERM

  • Jiangsu, China

  • 844790900

  • 1000sets/Year

  • Available | Customized Request

Product Description

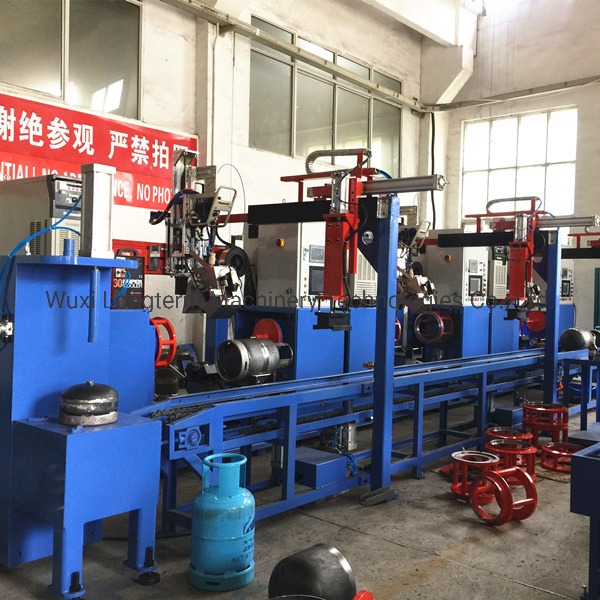

LPG Cylinder Auto Body Welding Machine

LPG Cylinder Auto Body Welding Machine

Machine list:
Machine
1. De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell)
Press mould
2. 63ton hydraulic logo printing machine

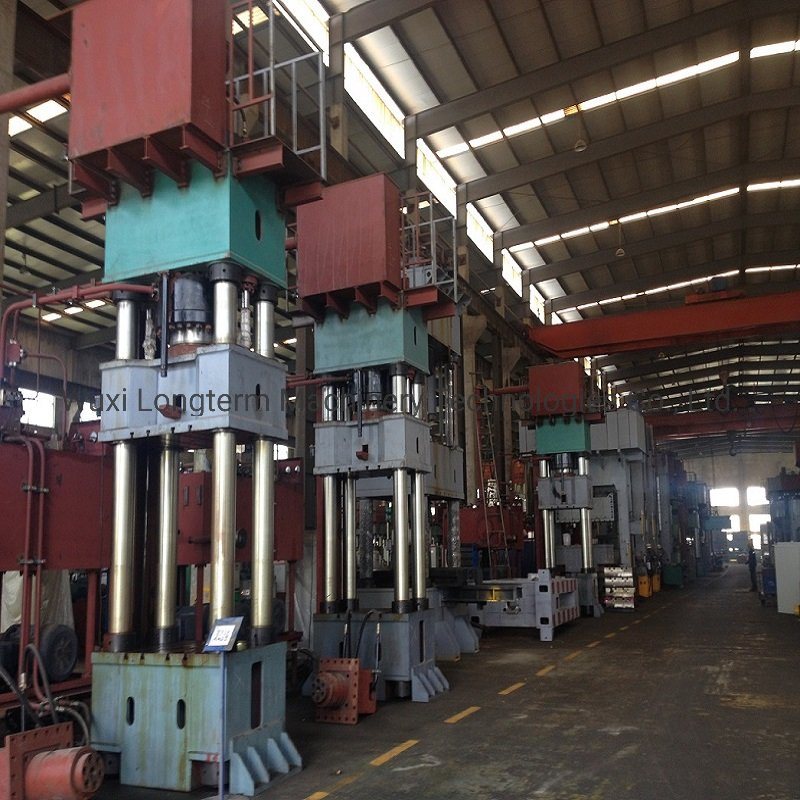

3. Power press drawing the head
Shell forming mould
4. Automatic trimming machine
5. End dish necking machine
6. Cleaning machine
7. Hole punching machine
8.Valve Seat Welding Machine
9.Bottom base welding machine
10.Protection enclosure welding machine
11.Assembling Machine
12.Circumferential Seam welding machine
13. Gas car-bottom heat treating furnace
14. Hydrostatic Testing Machine
15. Cylinder drying machine
16. shot blasting machine
17. Spraying production line
18. Valve mounting machine
19. Leakage Air Test Machine
LPG Cylinder Auto Body Welding Machine


Enclosure forming machine
1.Shearing machine
2.Hole punching machine
3.Printing machine
4.Rolling machine
5.Hydraulic enclosure forming machine for R
Forming mould


Bottom base forming machine
1.Shearing machine
2.Hole punching machine
3.Rolling machine
4.Hydraulic bottom base forming machine
Forming mould
5.Seam welding machine

LPG Cylinder Auto Body Welding Machine

1. De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell)

2. 63ton hydraulic logo printing machine


3. Power press drawing the head
Press the round sheet into a shell with dies.



4. Automatic trimming machine
This machine is reliable, easy to operate.



5. End dish necking machine



6.Cleaning machine



7.Hole punching machine
Punch the hole on head of the cylinder

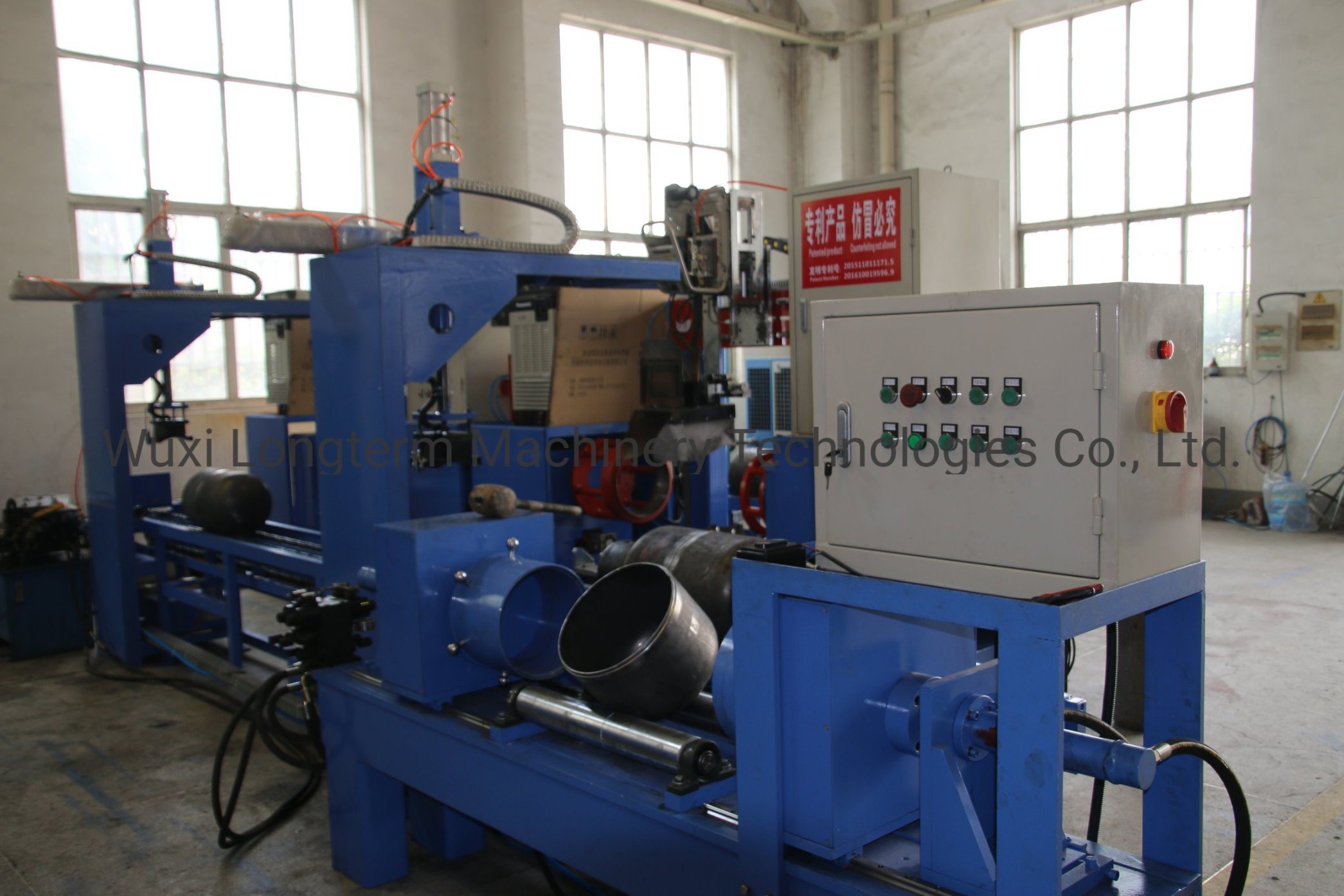

8.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time

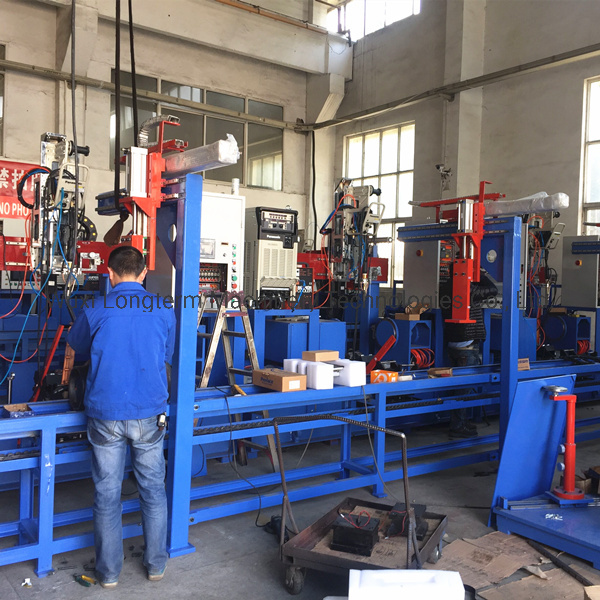

9.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.



10.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.



11.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding

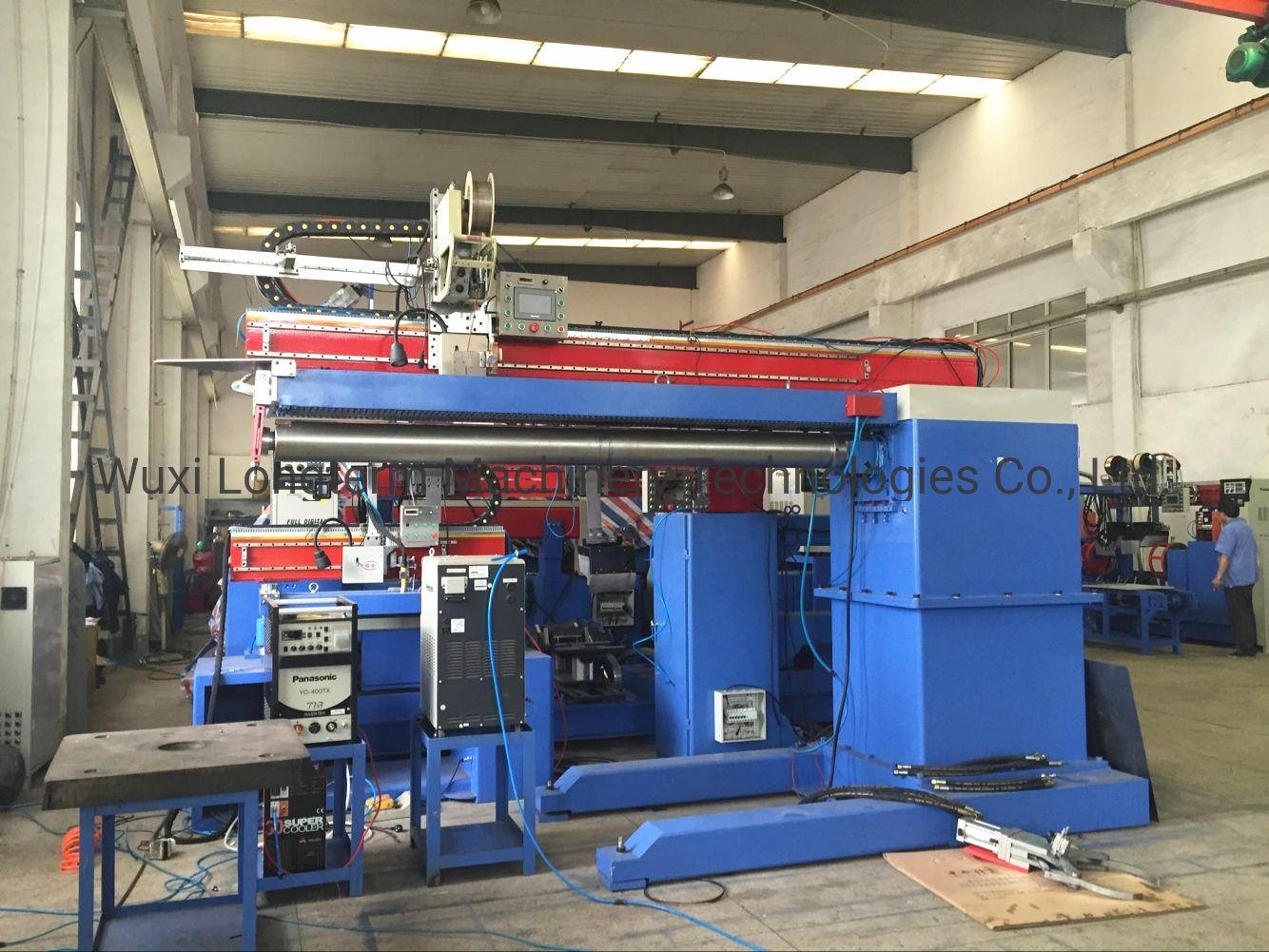

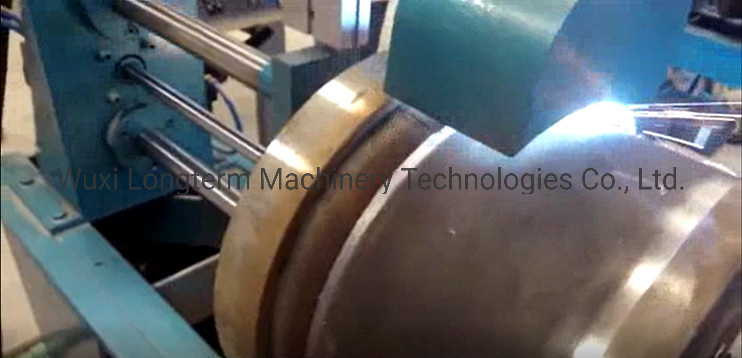

12.Circumferential Seam welding machine



13. Gas car-bottom heat treating furnace machine
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.

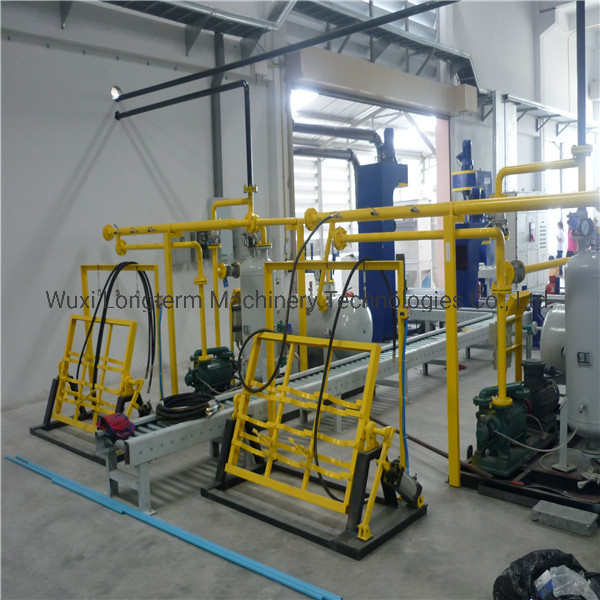

14. Hydrostatic Testing Machine



15. Cylinder drying machine



16. Shot Blasting Machine
Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).



17. Spraying production line



18. Valve mounting machine




19. Leakage Air Test Machine


LPG Cylinder Auto Body Welding Machine


FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
