LNG Cylinder Assembly and Spot Welding Machine
1.Technical Parameter
(1)LNG Insulated cylinder housing:
OD:Φ500mm~Φ850mm;
Length(Not including heads):800mm~1700mm;
Thickness:3.0mm~4.0mm;
Material:304 Stainless steel;
(2)LNG Insulated cylinder liner:
OD:Φ450mm~Φ800mm;
Length(Not including heads):800mm~1700mm;
Thickness:3.0mm~5.0mm;
Material:304 Stainless steel;
(3)Production Speed: 7min/set.
2.Description The welding main machine adopts C-type structure, the workpiece advances forward and forward, and the clamp is pressed by the piano key or the cylinder type pressing plate, the workpiece is fixed, and the welding torch walks the straight seam welding; The feeding and discharging of the equipment adopts hydraulic trolley lifting or electric lifting, artificial auxiliary form, and the welding process is automatic; According to the welding process of the workpiece, TIG process, MIG process, PAW process, PAW+TIG process, etc. can be selected; Optional configurations include TV monitoring systems, weld trackers, arc length tracking devices, TIG (or PAW) wire fillers, weld centering devices, welding shakers, work platforms, and more.

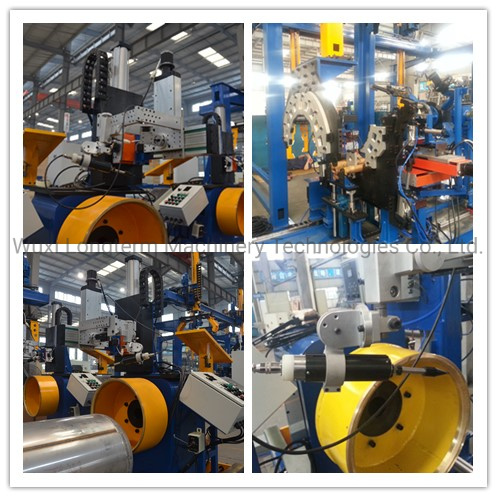

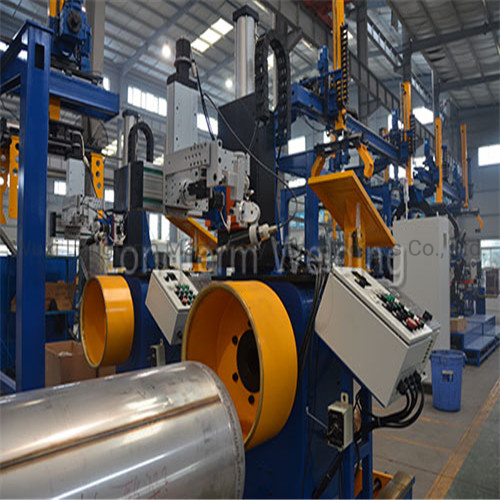

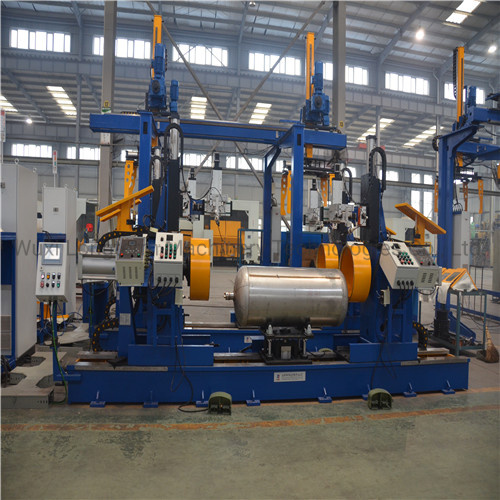

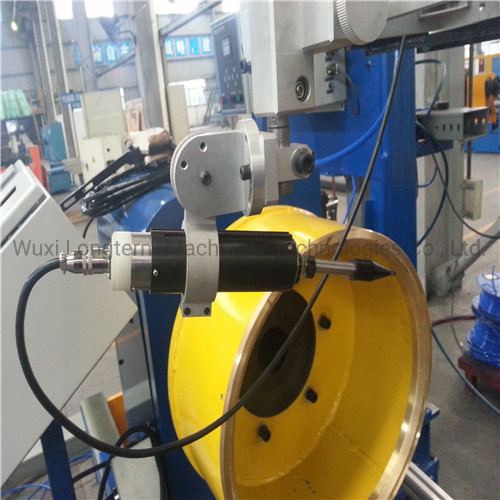

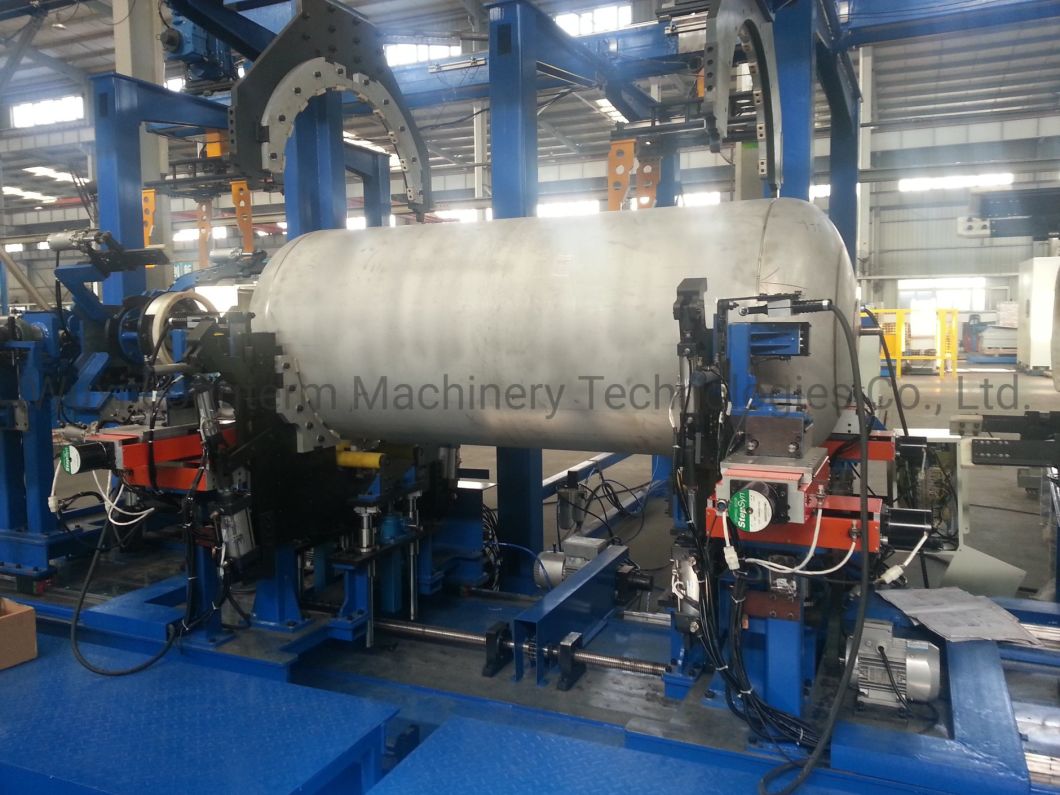

3.Characters (1)The equipment is fully automatic; the cylinder and the front and rear heads are automatically transported separately; the front and rear heads are respectively loaded and loaded by the air manipulator; (2)The head is automatically press-fitted, automatically scans the weld position and automatically compensates, the workpiece is rotated and positioned, and multiple shots are simultaneously fixed by TIG; (3)After the cylinder body-front and rear head sets are fixed, they are automatically transferred backwards to the automatic circumferential seam welder for automatic welding of double-ring seams. 4.Machine details

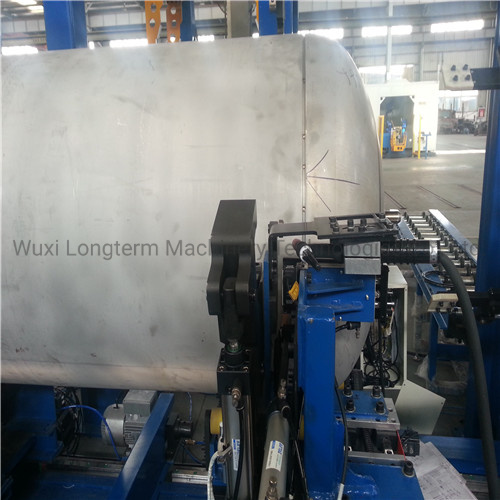

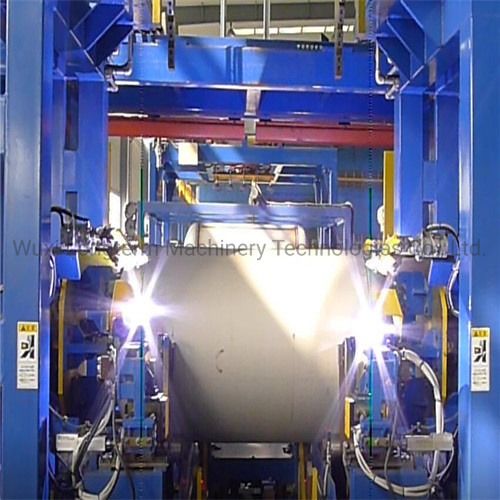

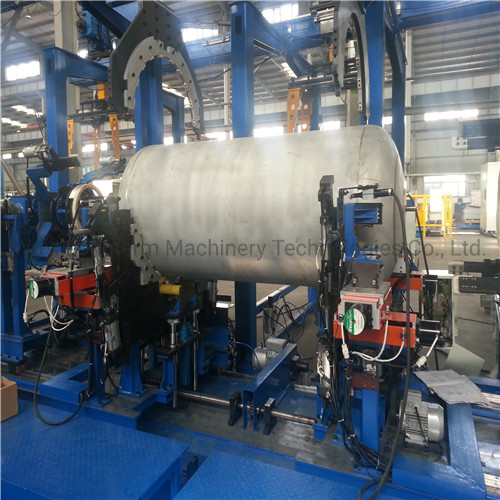

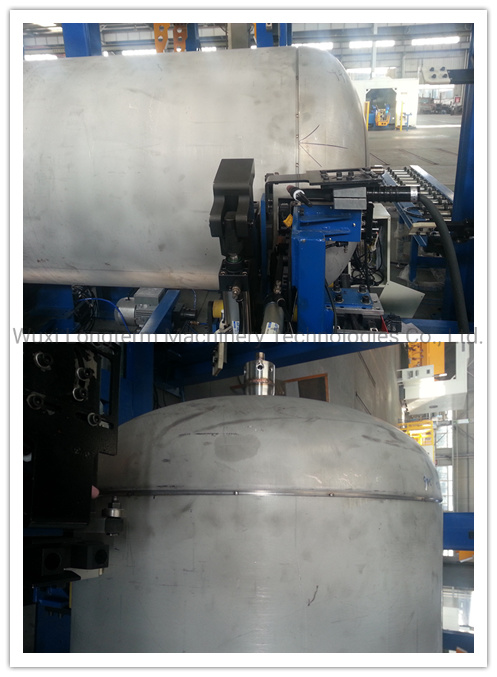

5.welding details

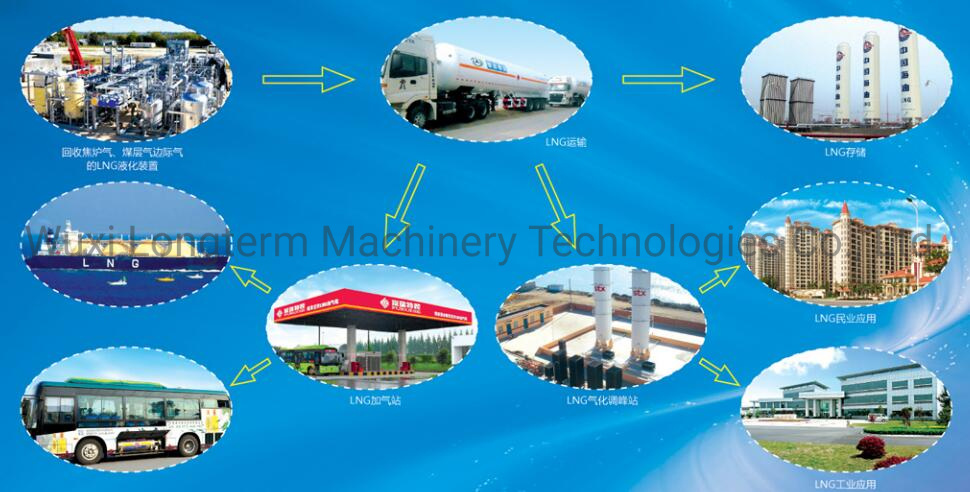

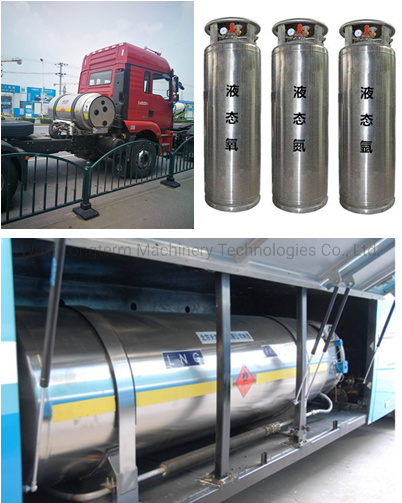

6.Application

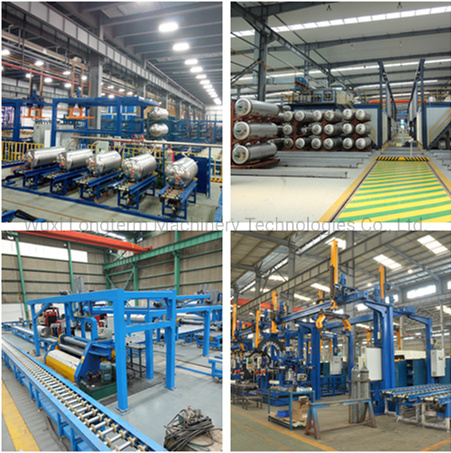

7.Our Factory Site
8.FAQ Q: Can your machine be customized? A: Yes, we are a professional manufacturer specialized in automatic welding equipment for more than 30 years, we have strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation? A: Please provide us the detail of the workpiece such as technical drawings or daily output
We need to know the following information to quote you correct machinery:
1. Size/Technical Drawing of the cylinders you want to make?
2. Are you new in this area or you already have some machines in the workshop?
3 Capacity you require, How many pieces and sizes you want to make per day?
