Induction Furnace Equipped CNG Cylinder Hot Spinning Forming Machine Gas Tank Spinning Machine

Share to:

Induction Furnace Equipped CNG Cylinder Hot Spinning Forming Machine Gas Tank Spinning Machine

Quantity:



Inquire Add to Basket

Model NO.:
LTMM406
Cylinder Weight:
<200kg
Production Rate:
<80s/Bottle
Equipment Total Power:
Around 500kw
Customized:
Acceptable
Structure:
Main Engine, Hydraulic System, Feeding
Bottom Pushing Device:
Automatic or Manual
Machine Name:
Pipe Neck in Machine for CNG and LNG Cylinder
Transport Package:
Standard Seaworthy Package
Specification:
customized
Trademark:
LONGTERM
Origin:
China
HS Code:
8463900090
Production Capacity:
50 Sets/Year
Samples:
US$ 200/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Seamless CNG cylinder Necking & Bottom Closing Hot Spinning Machine

Parameter

Double Roller Series CNC Playback General Spinning flow forming machine
Model	Max.Rough Diameter (mm)	Height from Spindle to Tailstock (mm)	Longitudinal Trust (KN)	Radia Trust (KN)
350PCNC	690	1100	24	24
450PCNC	890	1250	65	65
800PCNC	1590	1250	65	65
700PCNC	1400	2300	150	150
900PCNC	1800	2500	200	200
1200PCNC	2400	2500	300	300
1500PCNC	3000	3500	400	400

Name	Unit	QX63-10CNC	QX63-20CNC	QX63-30CNC
Max.Rough Diameter	mm	400	600	700
Min.Rough Diameter	mm	60	60	100
Max.Length of workpiece (Positive rotation)	mm	1200	2000	2500
Max.Length of workpiece (Contrarotation)	mm	2200	3000	4000
Double center distance	mm	4700	6000	6500
Spindle speed	rpm	30-600	30-600	30-500
Main engine power	KW	37/40	100/110	120
Tail force	KN	50	75	150
Spinning roller base longitudinal stroke	mm	1500	2000/2500	2500/3000
Spinning roller base longitudinal thrust	KN	170	250/300	400/450
Spinning roller base horizontal stroke	mm	170	270	300
Spinning roller base horizontal thrust	KN	3*100	3*200	3*300

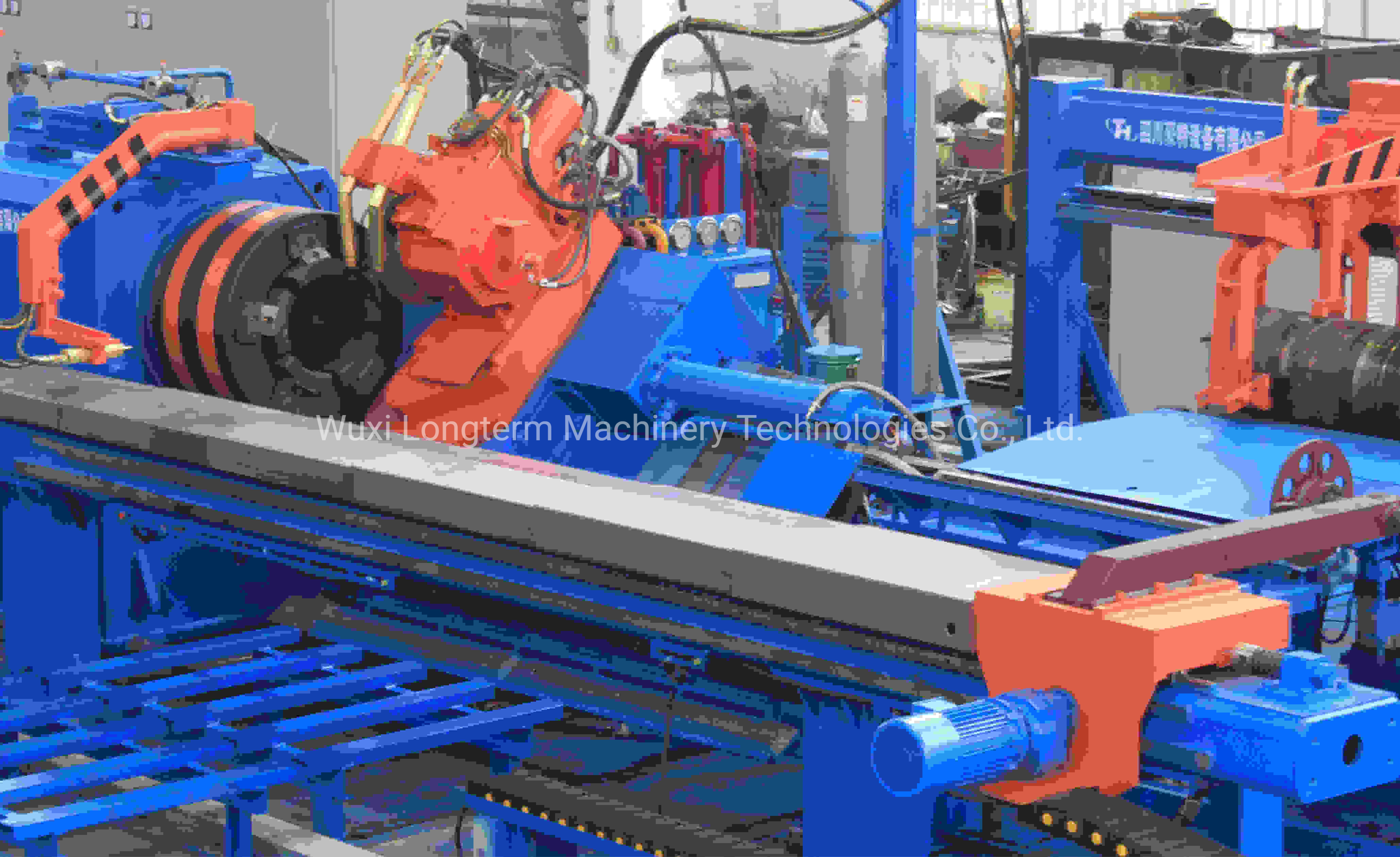

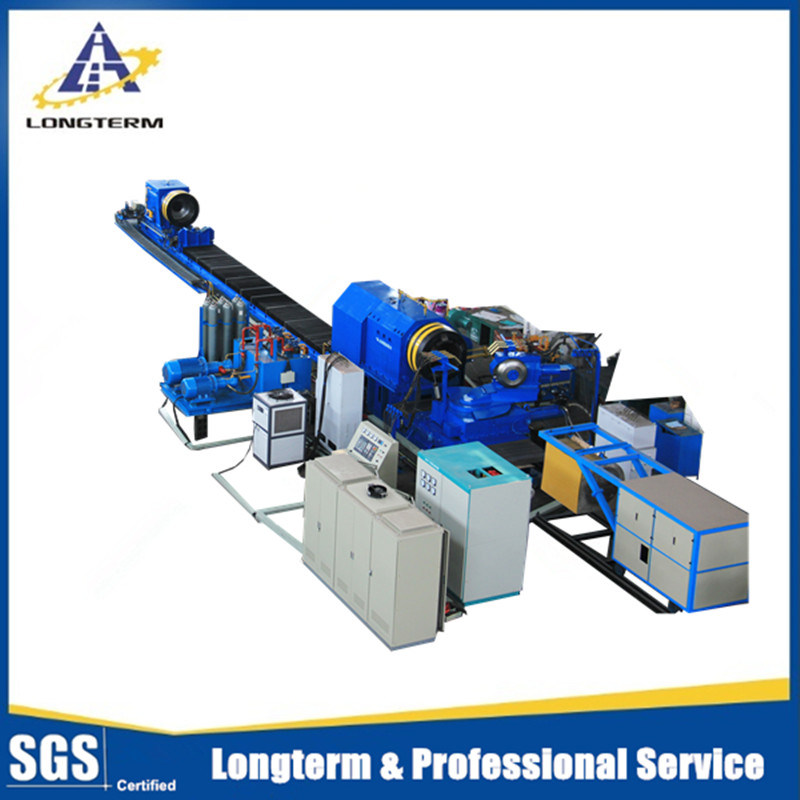

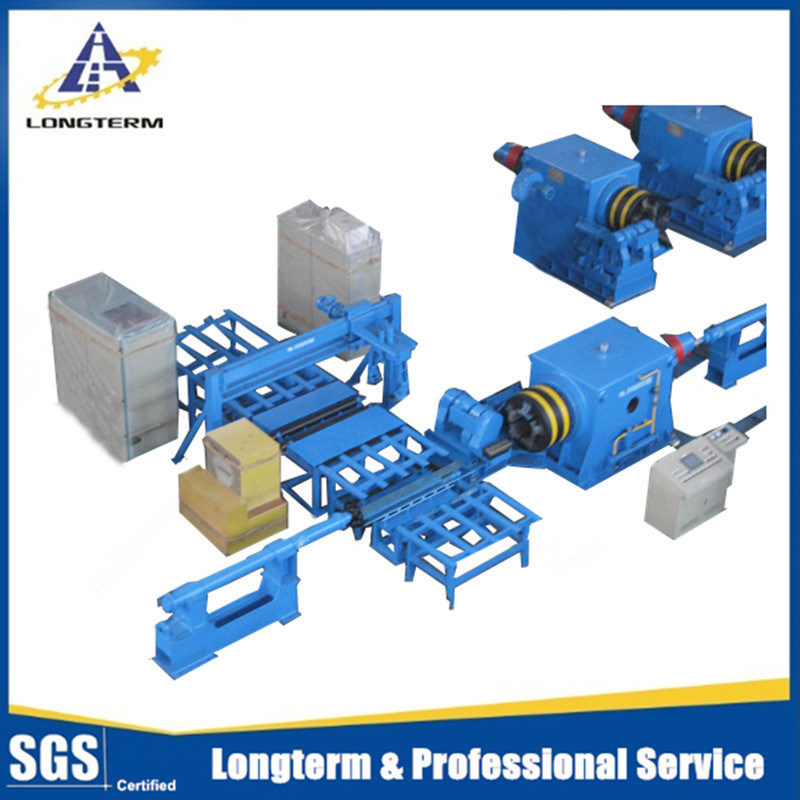

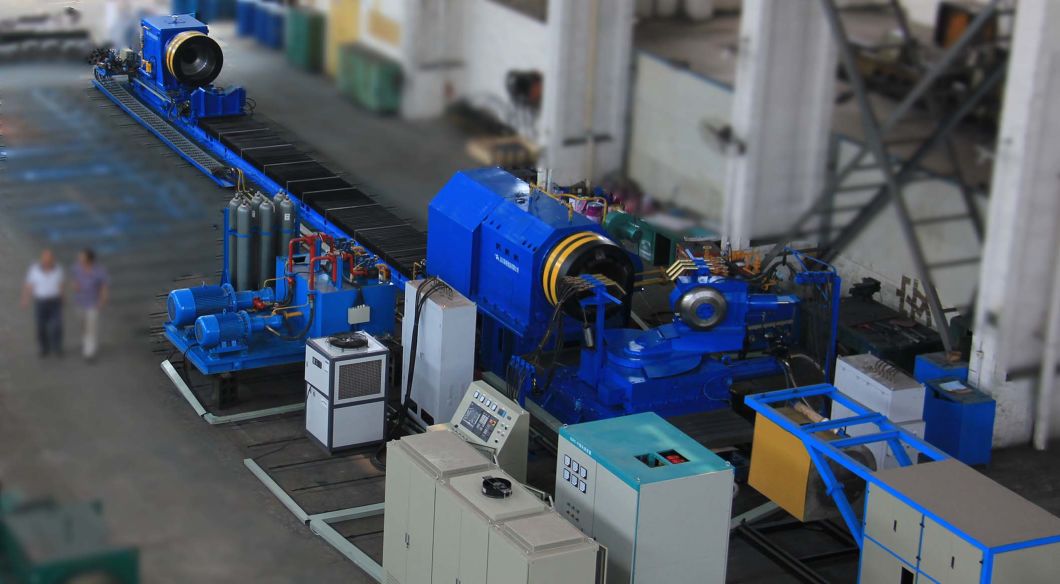

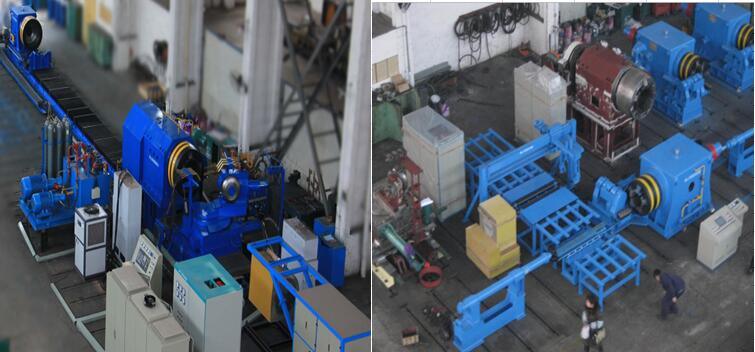

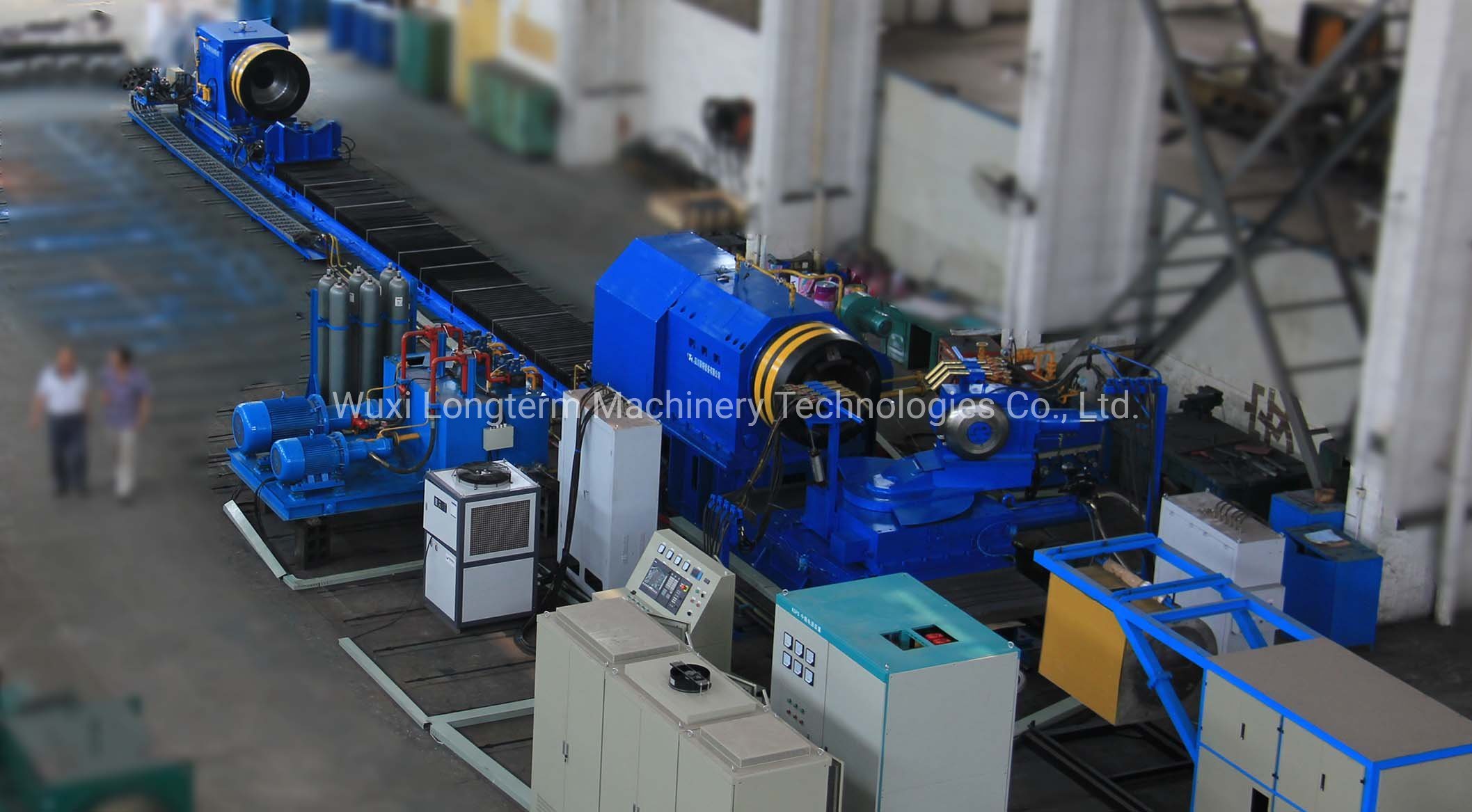

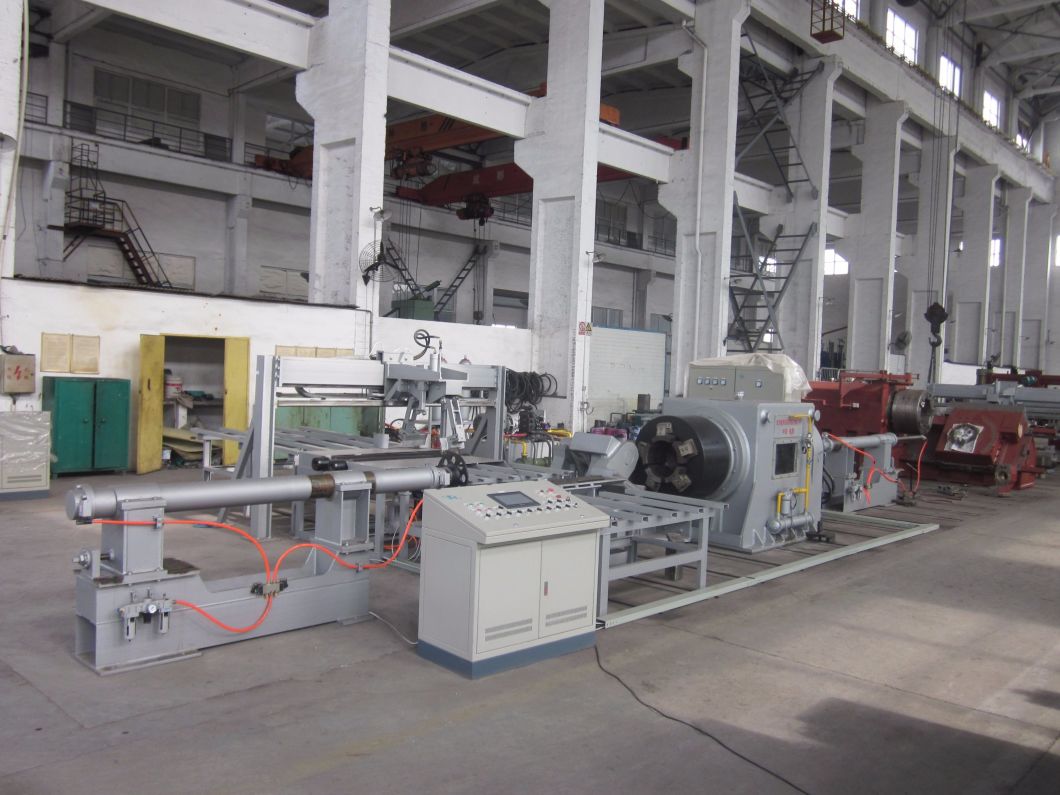

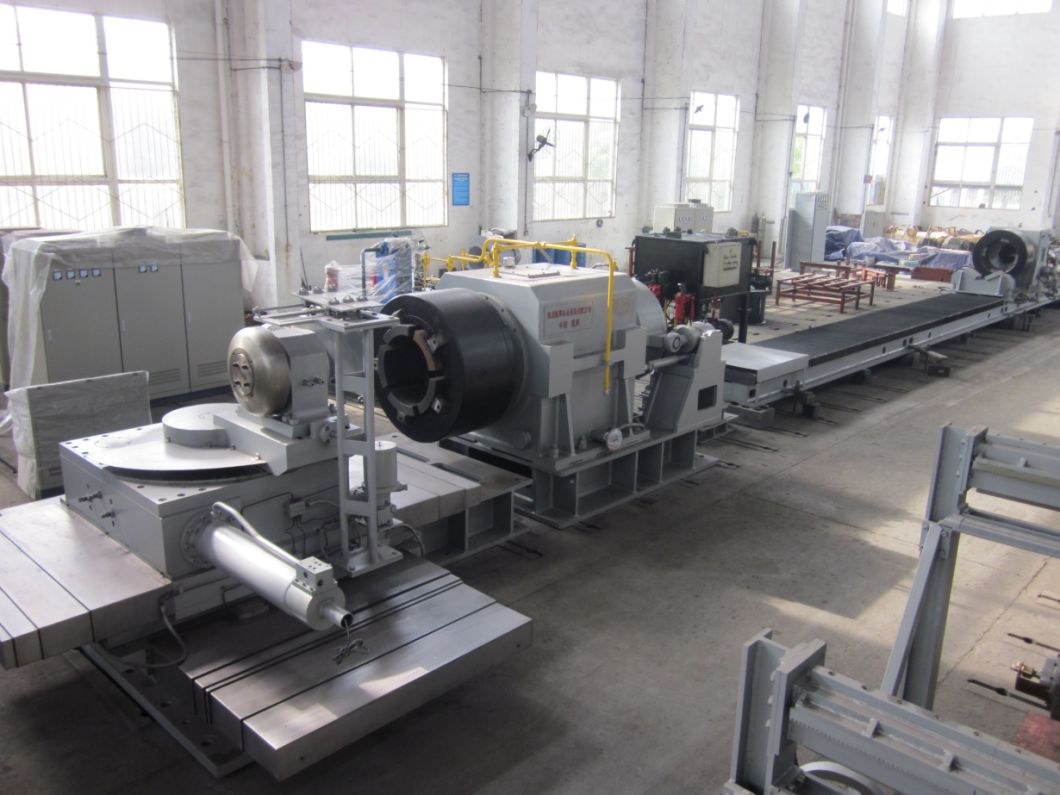

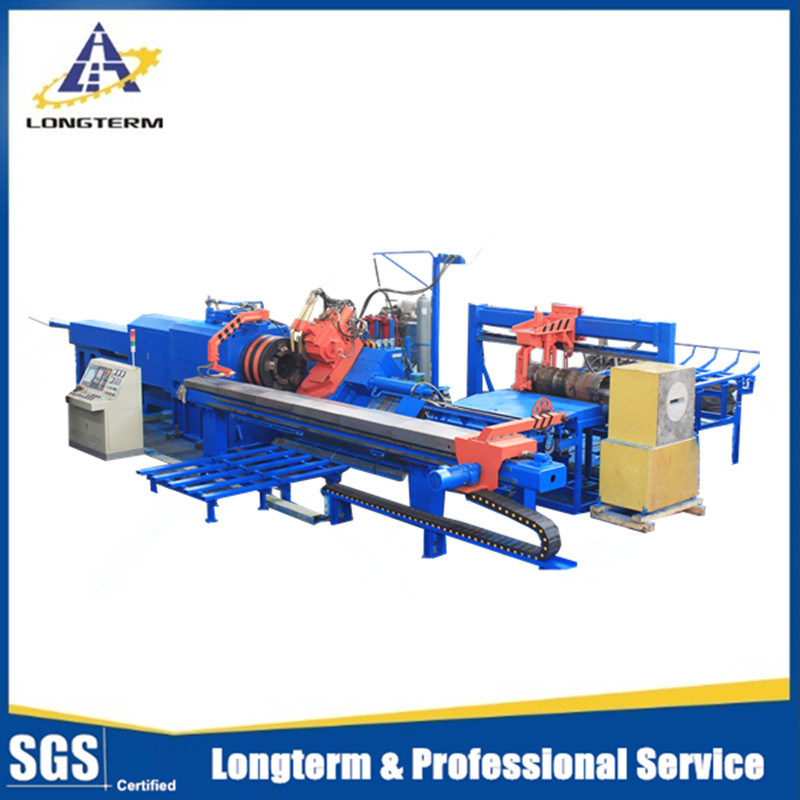

Picture of machine
Seamless CNG Cylinder Necking Spinning Machine

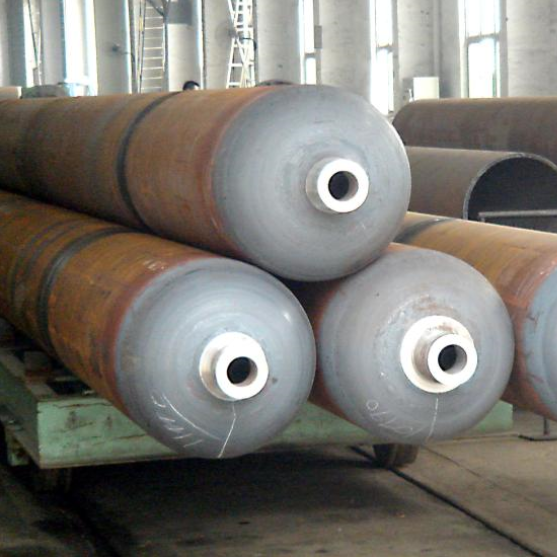

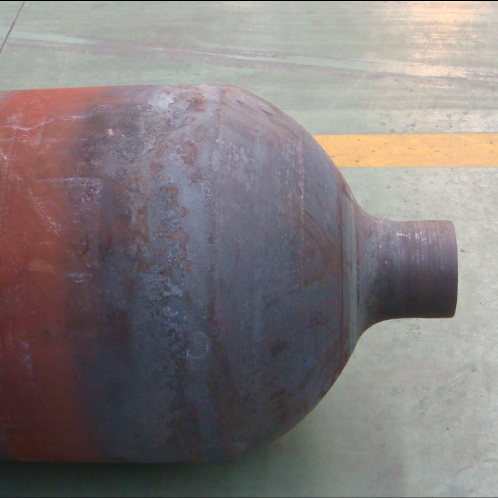

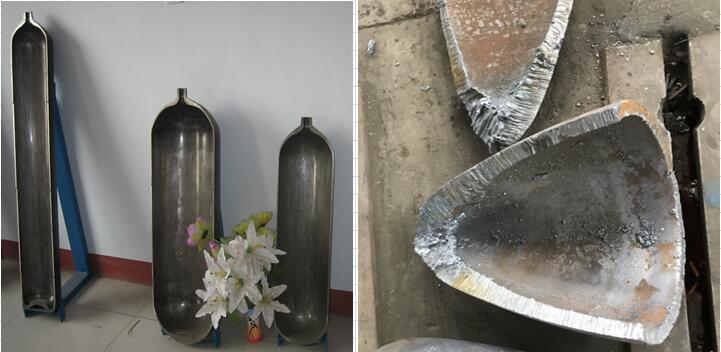

Picture of cylinder

Induction Furnace Equipped CNG Cylinder Hot Spinning Forming Machine Gas Tank Spinning Machine

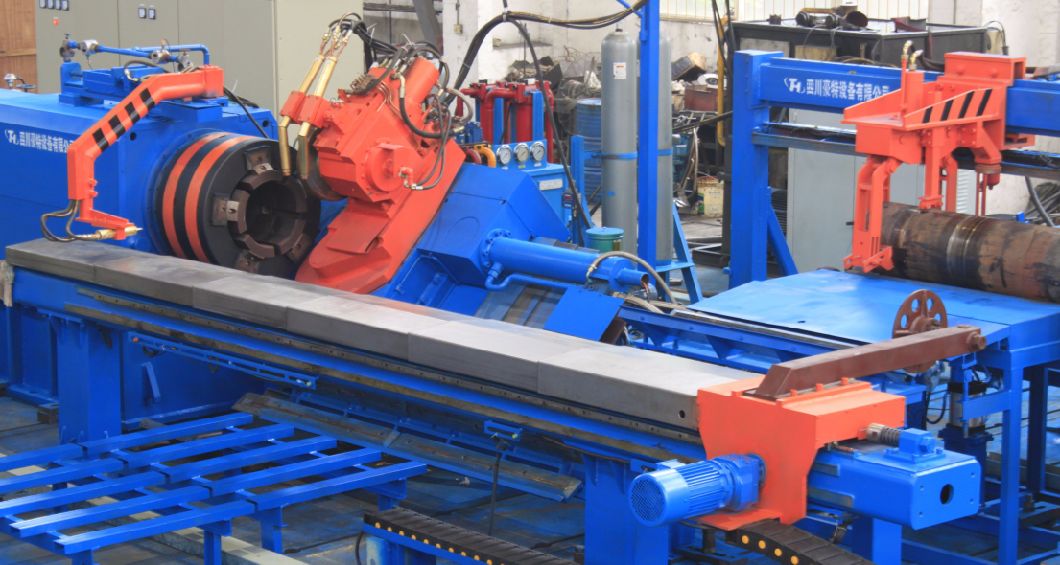

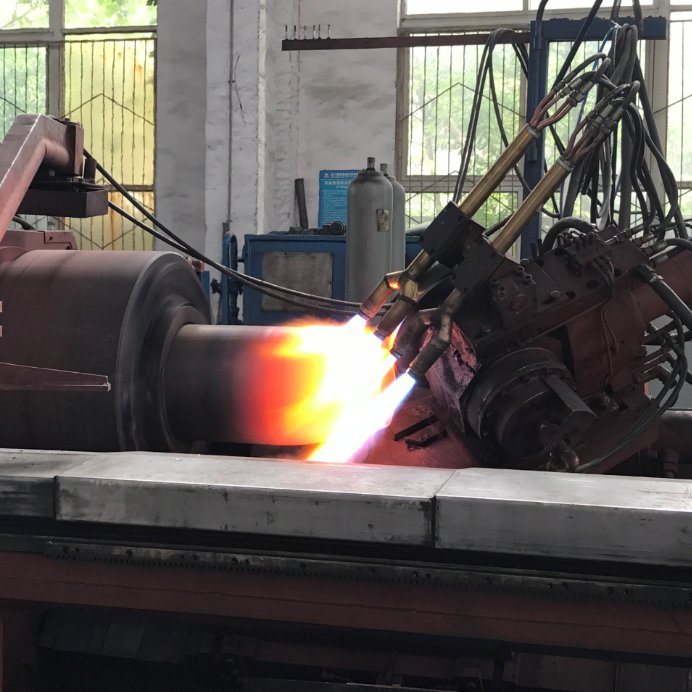

Picture of details

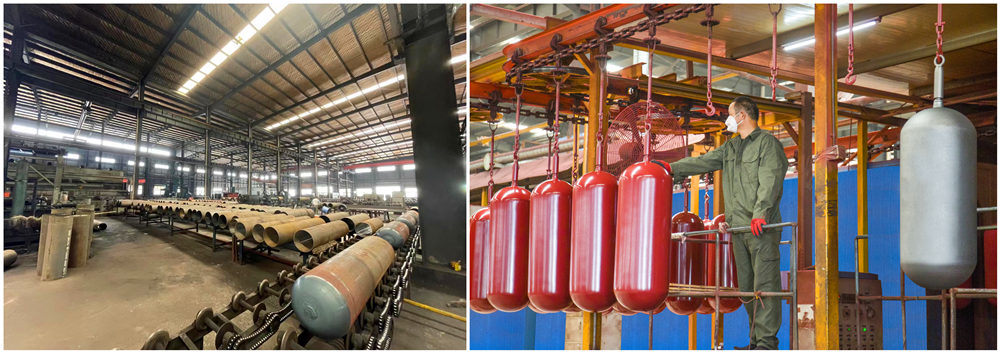

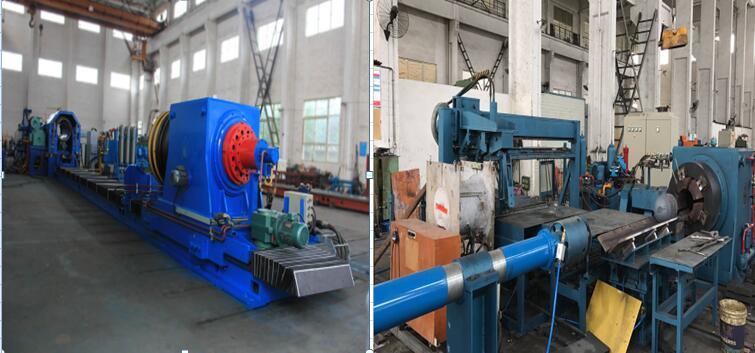

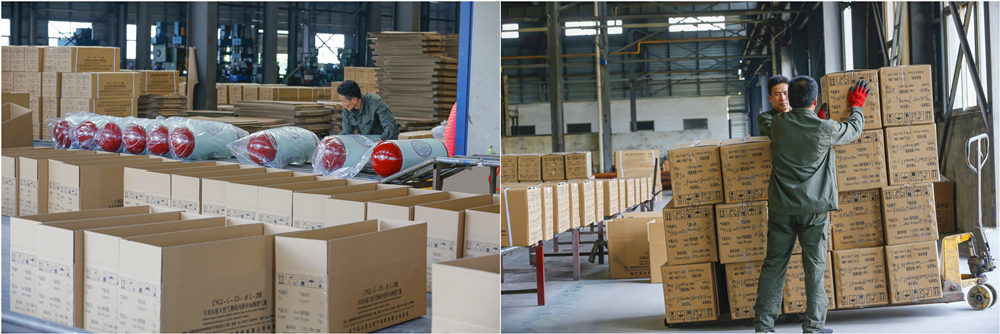

Picture of factory

Brief Introduction:

Wuxi Longterm has been focused on the hot-spinning machinery production for more than 30 years. We own a professional technical team to provide all-sides service. We put ourselves to the development of this industry since establishing the company. With the advanced technology and the mature service, we cooperate with many clients from the worldwide, such as Russia, India, Iran, Turkey, Serbia etc. For more info, please feel free to contact us.

We've served CIMC Group for more than 10 years. Over these years, we've helped them built 6 production lines for CNG Tank Truck. It's our honor to have the chance to further cooperate with you.

Enable us to send you the more precise quotation, may we know the following questions?

1.May I have the technical drawing of the cylinders you want to product? If you don't have, pls let us know the size (diameter ) and the volumn (how many liters). Better with the picture

2.What's the daily capacity you need?

LTMTHG660 Hot Spinning Machine Technical Parameters

Induction Furnace Equipped CNG Cylinder Hot Spinning Forming Machine Gas Tank Spinning Machine

Machine Model	THG622	THG660	THG720	THG920
Processing Diameter	Φ406-Φ622mm	Φ406-Φ660mm	Φ559-Φ720mm	Φ559-Φ920mm
Processing Length	5500-12500mm	5500-12500mm	5500-12500mm	5500-12500mm
Processing Thickness	10-30mm	10-30mm	10-30mm	10-30mm
Machine Central Height	1300mm	1300mm	1300mm	1300mm
Main Engine Power	200KW	250KW	280KW	355KW
Template Rotroflexion Angle	90°	90°	90°	90°
Control Type	CNC	CNC	CNC	CNC
Machine Dimension(MM)	2300032002300	2300032002300	3100032002500	3100032003300
