High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

Quantity:
  • LTM

  • MIG Welding

  • Air Storage

  • Installation and Commissiong

  • 4 Months

  • Customized

  • 380V 3 Phase

  • Unlimited

  • Carbon Steel

  • Laser Trackng Device

  • One Year

  • 1000 PCS/8 Hours

  • 1.2mm Steel Wire

  • Ar, CO2

  • Siemens

  • Container

  • all sizes cylinders

  • HLT

  • Wuxi, Jiangsu

  • 8515390000

  • 1000 Per/8 Hours

  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

High welding speed air compressor longitudinal seam automatic welding machine / seam welder

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder



Production Description

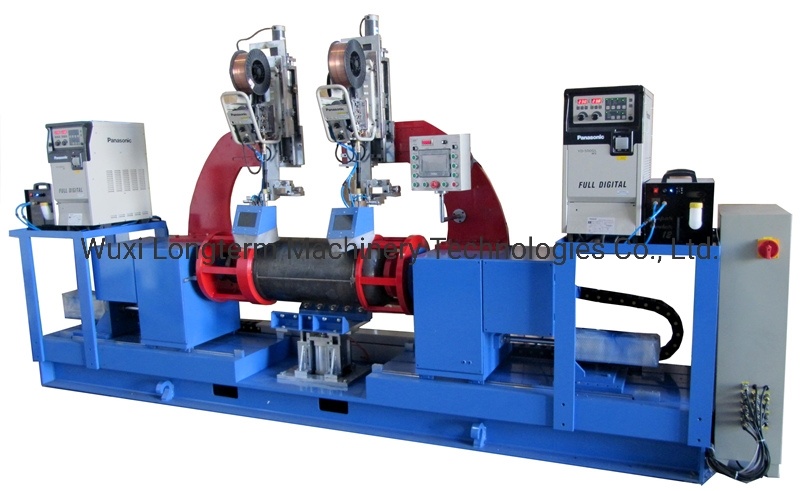

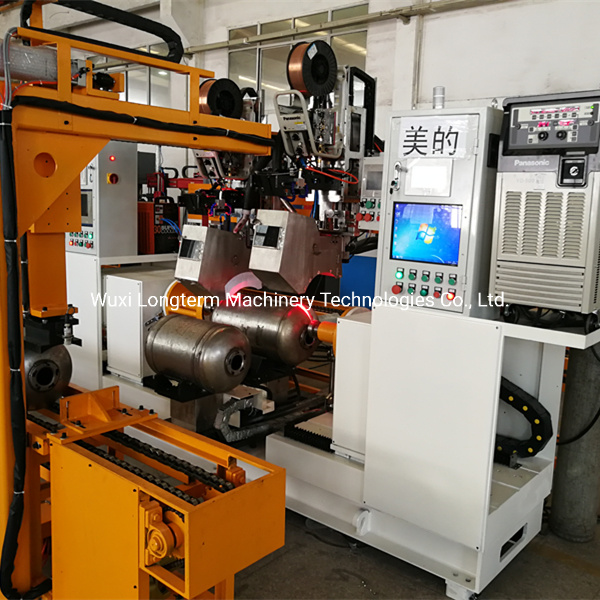

Our circumferential welding machine adopts automatic circumferential welding machine, magnetic suction loading arms device, three-station feeding mechanism. This kind of devices can complete the workpiece loading and unloading action automatically to achieve high efficient, safe interlocking, coordination and linkage. Maximumlly improving the working efficiency, reducing labor-assisted operations and labor intensity. Getting rid of the dependence on the operators, while stably improving the quality of cylinder circumferential welding seam.

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder
No. Item Unit Specification
1 Rated input voltage V AC380
2 Phase number phase 3
3 Rated freguency Hz 50/60 (shared)
4 Control type IGBT Inverter way
5 Welding Type CO2/MAG/pulse MAG/stainless steel MIG/stainless steel pulse MIG
6 Waveform control function Digital setting
7 Suitable welding gas CO2(100%)/MAG(Ar:80%, CO2: 20%)/stainless steel MIG(Ar: 98%, CO2: 2%)
8 Suitable welding wire diameter mm 1.0/1.2/1.4/1.6
9 Suitable wire material carbon steel/carbon steel flux-cored wire/stainless steel/stainless steel flux-cored wire
10 Dimension(W*T*H) mm 3800*715*915
11 Weight kg 115
12 Insulation class 200(main transformer150)

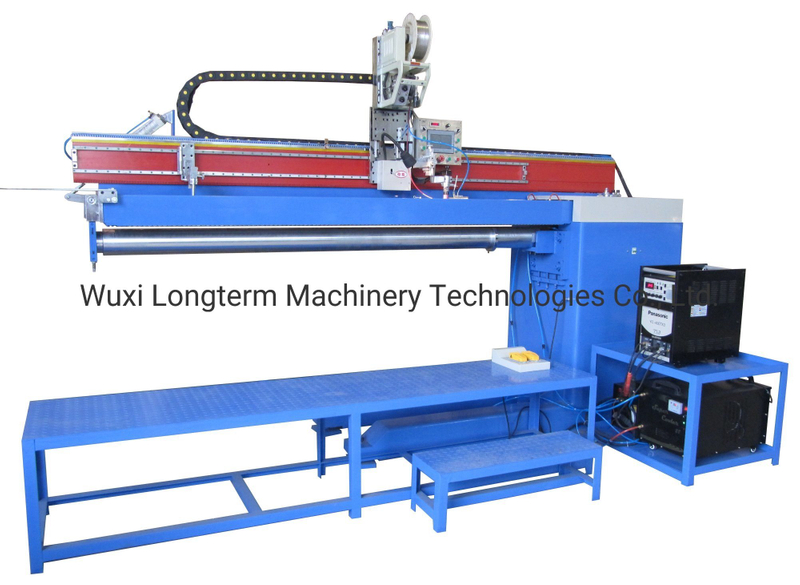

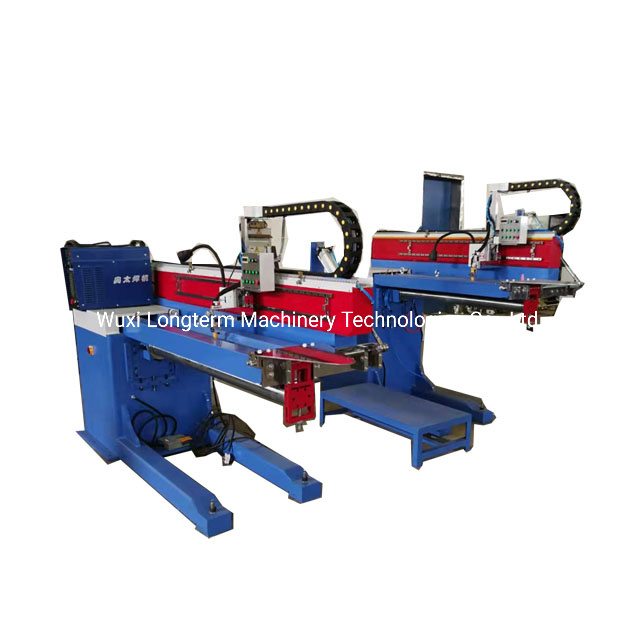

Longitudinal Welding Machine

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

Welding diameter 300-800mm
Welding length 2500mm
Thickness range 1.2-3.0mm
Welding material Metal and stainless steel
Dimension 1500*700*900mm
Weight 500KG

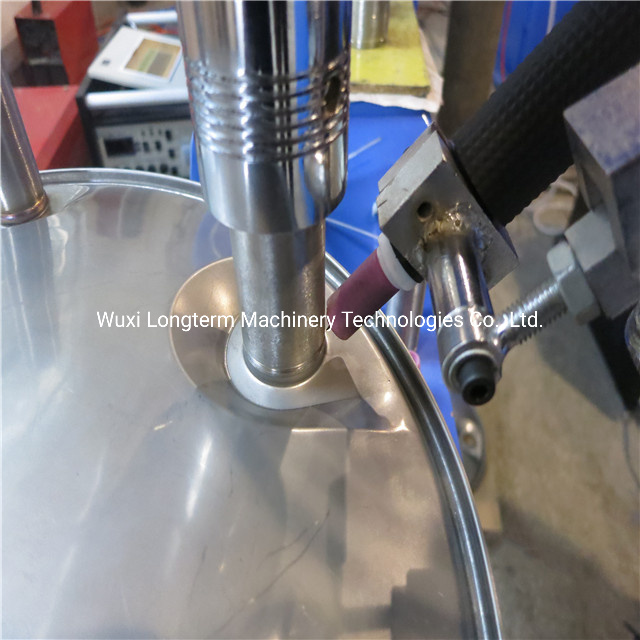

Flange welding machine

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

Item Specification
Power supply single phase 50Hz, AC220V
Input power Three phase 50Hz AC 380V
Tailstock lift stroke 150mm
Compressed air pressure range 0.3-0.5MPa
Welding wire specification Diameter: 1.0-1.2mm
Welding speed range 200-1500mm/min

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

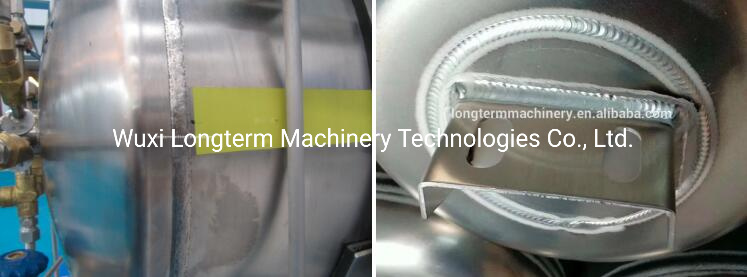

Details

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

Packing&shipping

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

Our customer

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

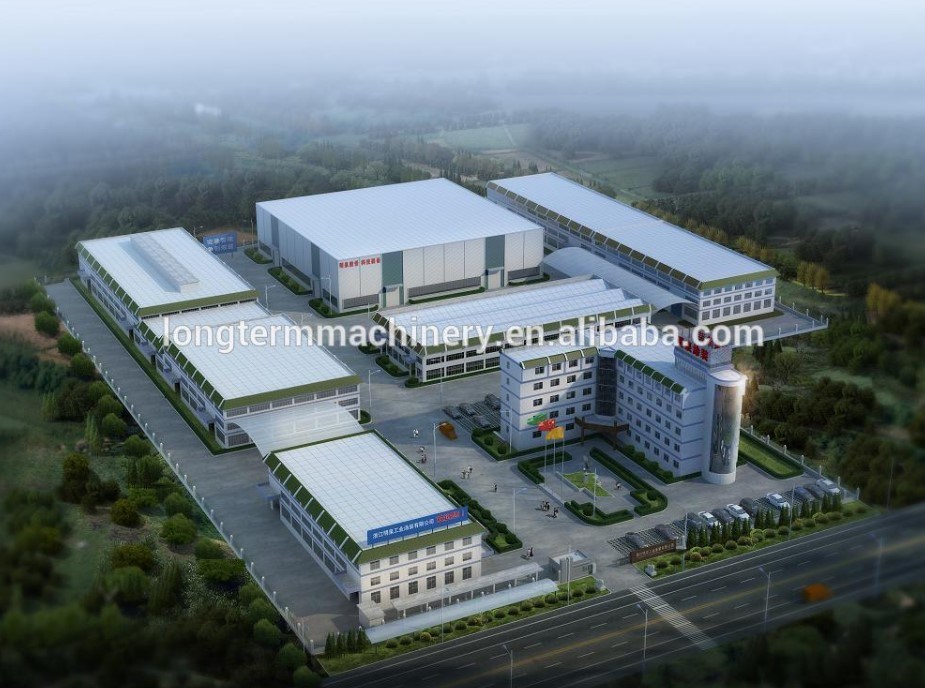

Company introduction

Wuxi Longterm Machinery Technologies Co., Ltd is the leading supplier of welding machine for the air compressor cylinder. we have been engaged in welding research since 1975. We have fully automatic circumferential welding machine, seam welding machine and fitting welding machine. The circumferential seam welding machines are completed with both video and laser tracing devices which ensure good welding quality continuously. Our machine has been exported to many country, such as America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc..They are popular all over the world and bring big profit by saving a lot of labor, electricity and time.

High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

Our team
High Welding Speed Air Compressor Longitudinal Seam Automatic Welding Machine / Seam Welder

FAQ

Q:How can you guarantee the quality of welding machine?
A: we have passed the ISO test,we warmly welcome you and your technical team visit our factory to check the machine before order, And we have one year guaranteed,free parts can be send free within one year.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

Q:How long is the warranty for machines?
A:Machines warranty is 12 months after receive our machine. in Warranty time,we can provide new free parts for changing.

Q:Can you engineer come to our place to help with machine installation & commission?
A:Yes, our engineers are available to travel to your factory for machine installation and commissioning

RFQ

To enable us to give your a better quotation, please help me confirm the information below:
1. Please kindly provide the technical drawing about the cylinder you want to produce, size range, material, shape as well
2. Which air will be filling in the cyinder, O2, CO2, Ar or other air ?
3 How many cylinders do you want to produce per 8 hours ?
