Zinc Metailzing Machine
Standard Seaworthy Package
Available | Customized Request
1.Desription of machine

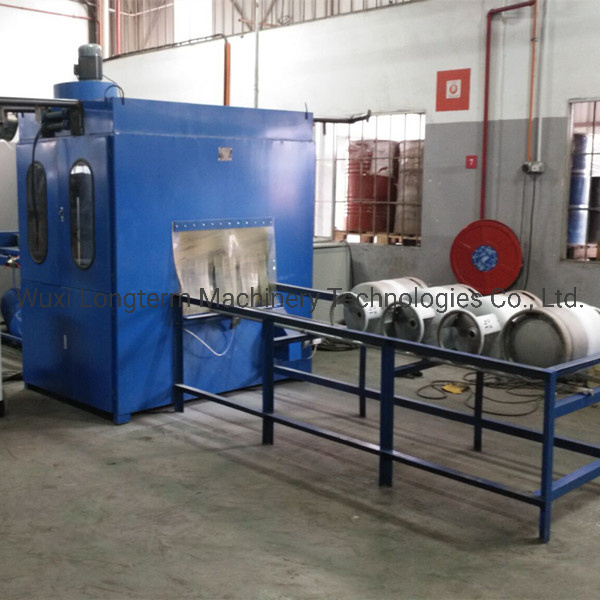

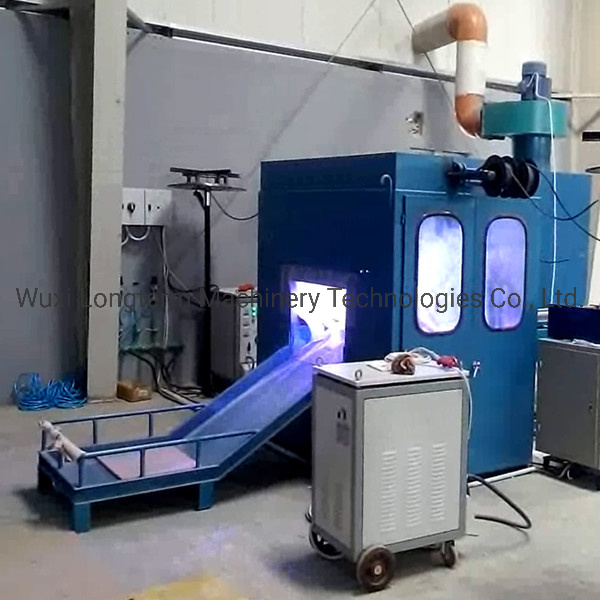

Zinc metalizing line consists of arc spraying zinc machine, spray gun automatic mechanism, automatic transmission and the workpiece rotation speed change mechanism, spraying room, vacuum cleaners, electrical control parts. It is especially used for LPG cylinders' surface. With arc as the heat source, using the high speed gas atomize the melting zinc wire, then high speed spraying to coating the surface of the cylinder. This line combined three arc spraying zinc machines, using three or a plurality spray gun at the same time from different sides of the cylinders.
2. Main technical parameters
Arc spraying zinc machine total power: 15KVA*N
Vacuum cleaner engine power: 5.5KW
The compressed air input pressure: 0.55~7Mpa
Diameter of the zinc wire: 2-3mm
Rated input voltage: 220V~280V
Productivity: 60 pcs/hour
Zinc wire consumption: 93 kgs/hour
3. Main structure and function
Arc spraying zinc machine(3 sets)
Hydraulic pressure station(1 set)
Vacuum cleaner and fan(1 set)
Spraying gun clamp

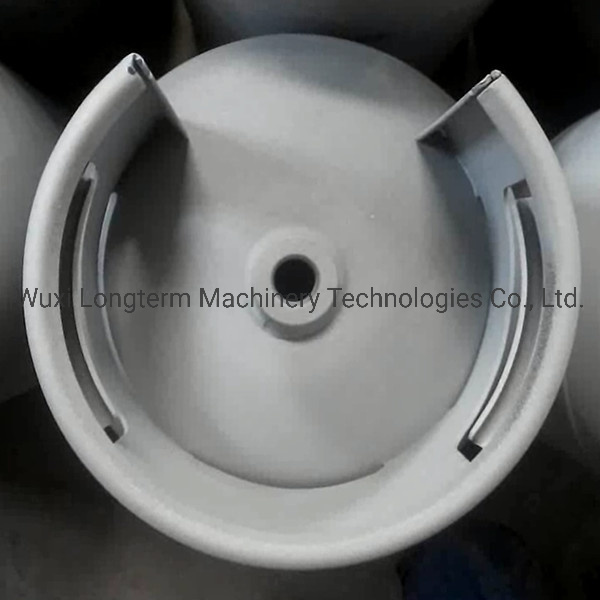

4.Detailed cylinder images after Zinc Metalizing
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
