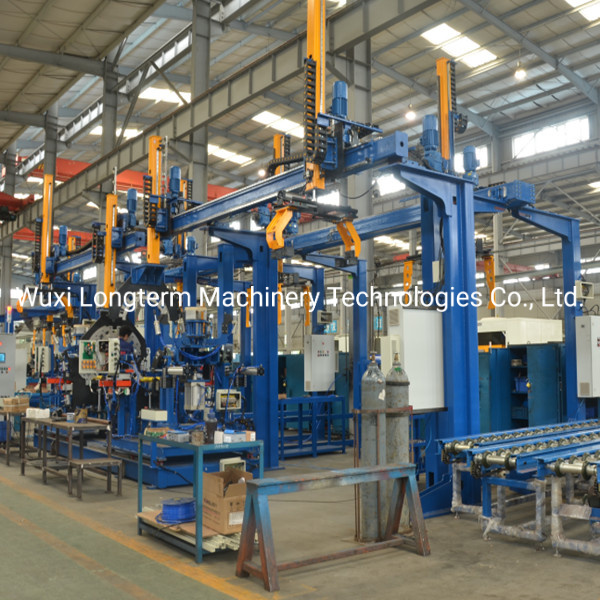

High Quality LNG Cryogenic Automobile Cylinder/Dewar Seam Welding Machine

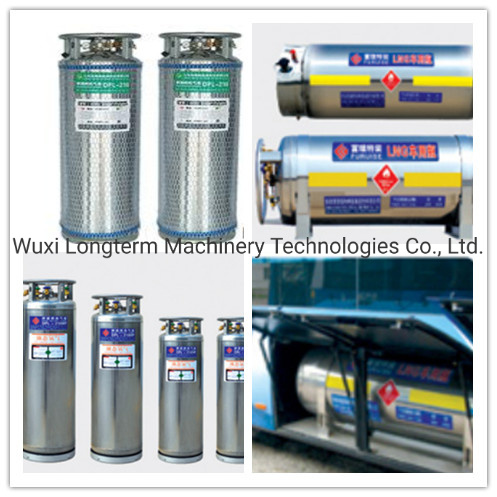

1.Different applications of LNG cylinders:


2.Product requiremet:

• LNG Insulated cylinder housing:

1. OD:Φ500mm~Φ850mm;
2. Length(Not including heads):800mm~1700mm;
3. Thickness:3.0mm~4.0mm;
4. Material:304 Stainless steel;

• LNG Insulated cylinder liner:

1. OD:Φ450mm~Φ800mm;
2. Length(Not including heads):800mm~1700mm;
3. Thickness:3.0mm~5.0mm;
4. Material:304 Stainless steel;

• Production Speed:

1. 7min/set.

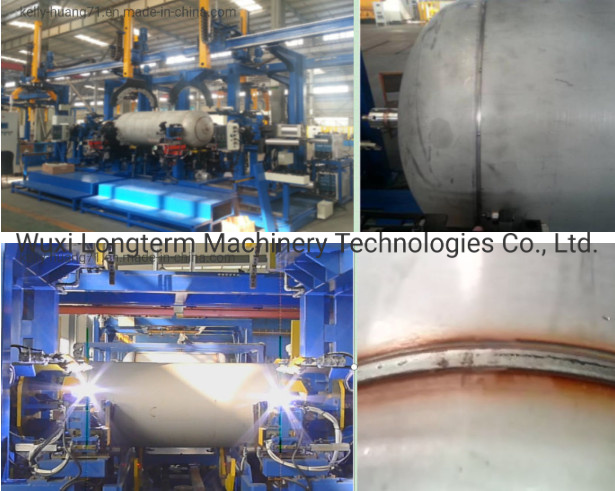

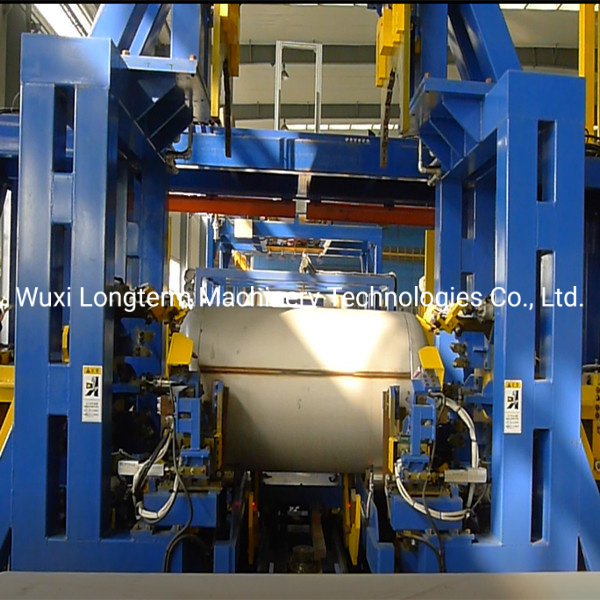

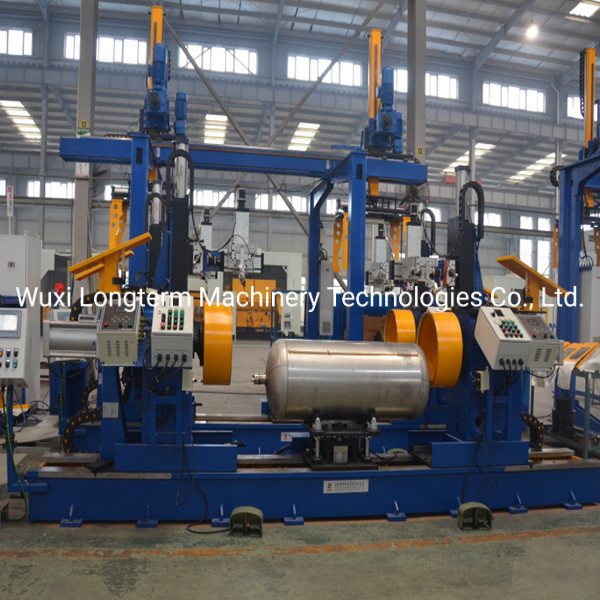

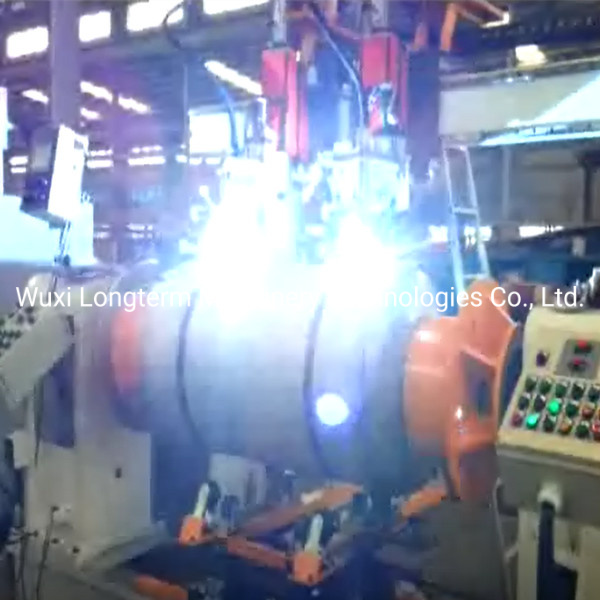

3.LNG cylinder circumferential seam welding details:

<sup>The circumferential seam welding machine can be in the form of special machine welding or robot welding, and the workpiece can be automatically loading and unloading by mechanial arms or manually loading and unloading.

Contact or non-contact weld automatic tracking system can be configured to automatically track welding seam position.</sup>

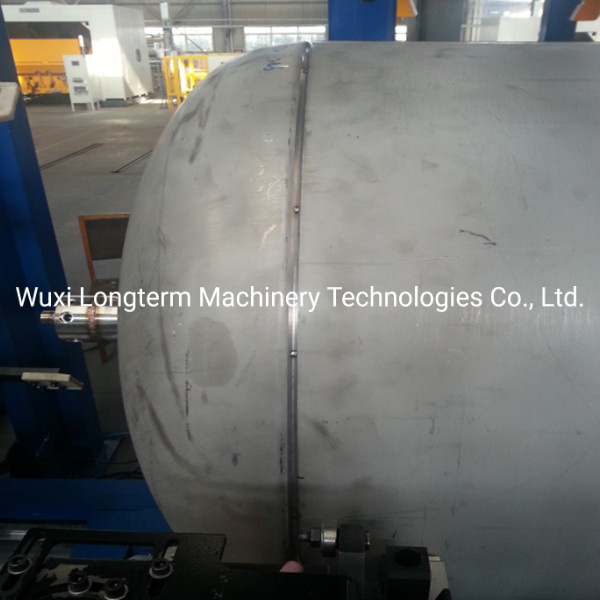

Good quality welding seam details:

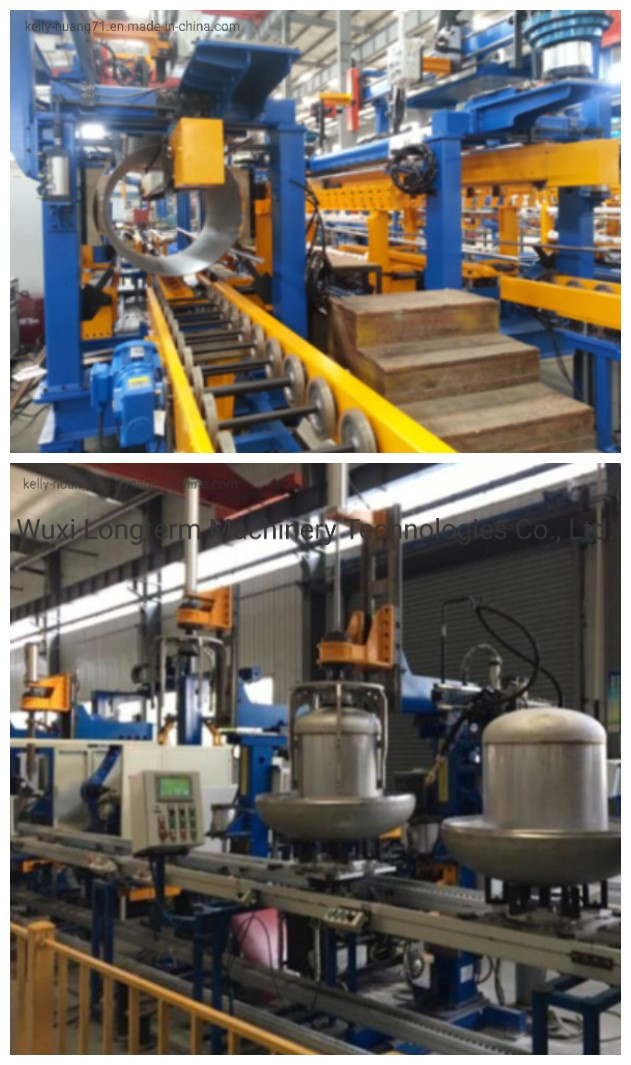

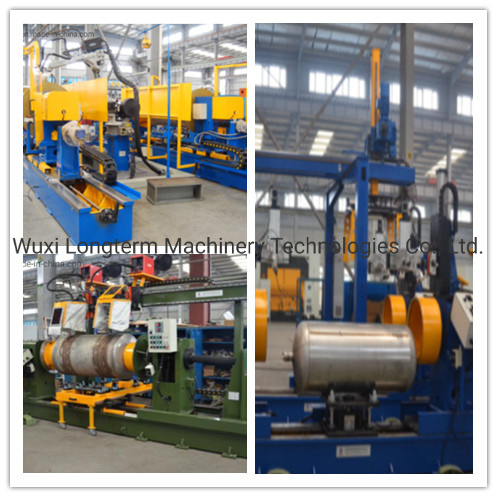

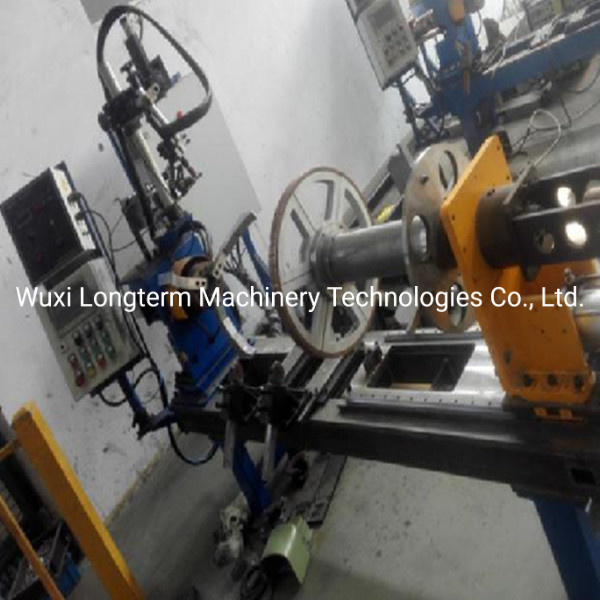

4.Longitudinal seam welding machine for LNG reserved cylinder:

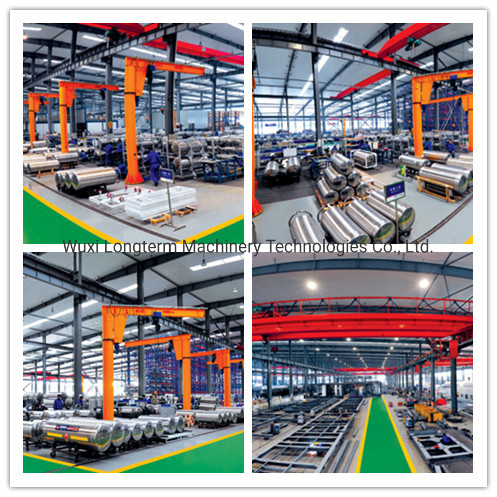

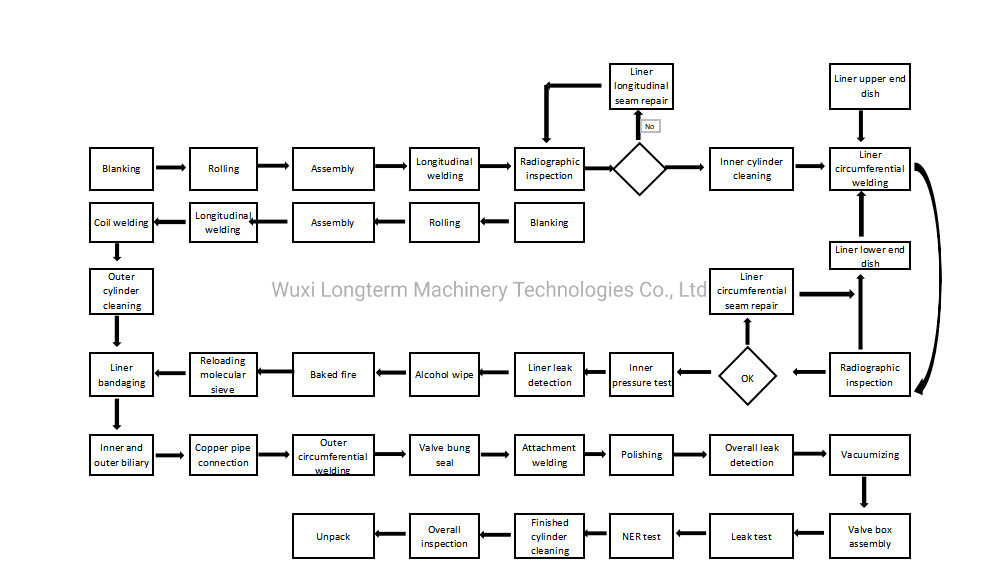

5.The production process of LNG cylinder:






6.Our Service
<sub>* Inquiry and consulting support.
* Sample testing support.
* View Factory.
* Training how to install and use the machine.
* Engineers available to service machinery overseas</sub>

Q: Can you design machines according LNG cylinder technical drawing?

A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

8.We need to know following information to quote you correct machineries:

1. Size/Technical Drawing of the cylinders you want to make?

2. Are you new in this area or you already have some machines in the workshop?

3 Capacity you require, How many pieces and sizes you want to make per day?
