| Quantity: | |
|---|---|
LTM
for Seamless Cylinder Tank
34CrMo4, 45 Steel
Acceptable
Standard Seaworthy Package
T/T
Standard Seaworthy Packages
13000 x 8000mm
HLT
Jiangsu, Wuxi
8479300000
100 Sets
Available | Customized Request
Product Description

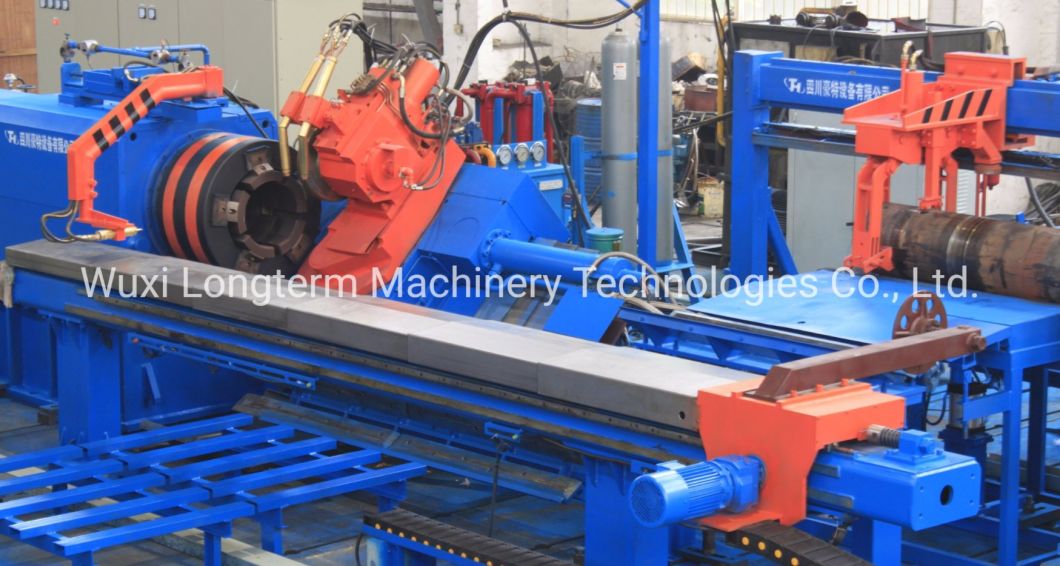

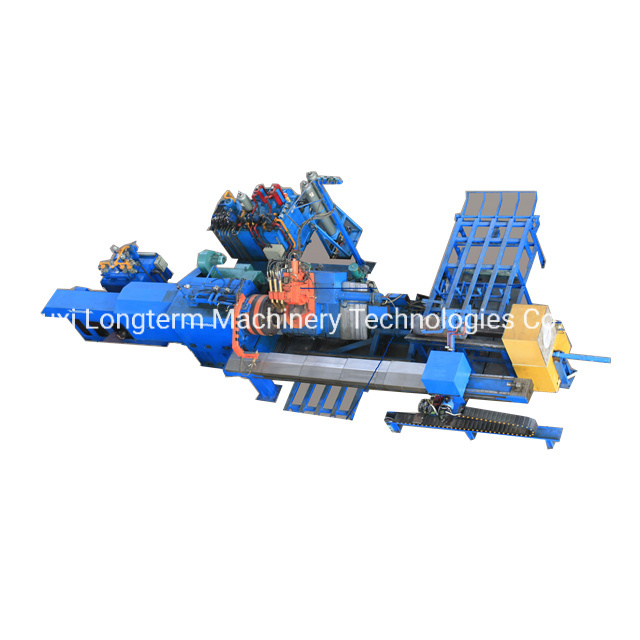

| Double Roller Series CNC Playback General Spinning flow forming machine | ||||
| Model | Max.Rough Diameter (mm) | Height from Spindle to Tailstock (mm) | Longitudinal Trust (KN) | Radia Trust (KN) |
| 350PCNC | 690 | 1100 | 24 | 24 |
| 450PCNC | 890 | 1250 | 65 | 65 |
| 800PCNC | 1590 | 1250 | 65 | 65 |
| 700PCNC | 1400 | 2300 | 150 | 150 |
| 900PCNC | 1800 | 2500 | 200 | 200 |
| 1200PCNC | 2400 | 2500 | 300 | 300 |
| 1500PCNC | 3000 | 3500 | 400 | 400 |
| Name | Unit | QX63-10CNC | QX63-20CNC | QX63-30CNC |
| Max.Rough Diameter | mm | 400 | 600 | 700 |
| Min.Rough Diameter | mm | 60 | 60 | 100 |
| Max.Length of workpiece (Positive rotation) | mm | 1200 | 2000 | 2500 |
| Max.Length of workpiece (Contrarotation) | mm | 2200 | 3000 | 4000 |
| Double center distance | mm | 4700 | 6000 | 6500 |
| Spindle speed | rpm | 30-600 | 30-600 | 30-500 |
| Main engine power | KW | 37/40 | 100/110 | 120 |
| Tail force | KN | 50 | 75 | 150 |
| Spinning roller base longitudinal stroke | mm | 1500 | 2000/2500 | 2500/3000 |
| Spinning roller base longitudinal thrust | KN | 170 | 250/300 | 400/450 |
| Spinning roller base horizontal stroke | mm | 170 | 270 | 300 |
| Spinning roller base horizontal thrust | KN | 3*100 | 3*200 | 3*300 |
