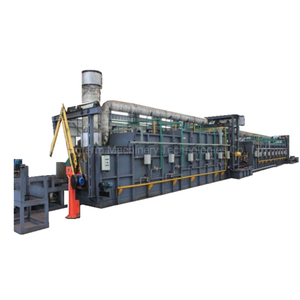

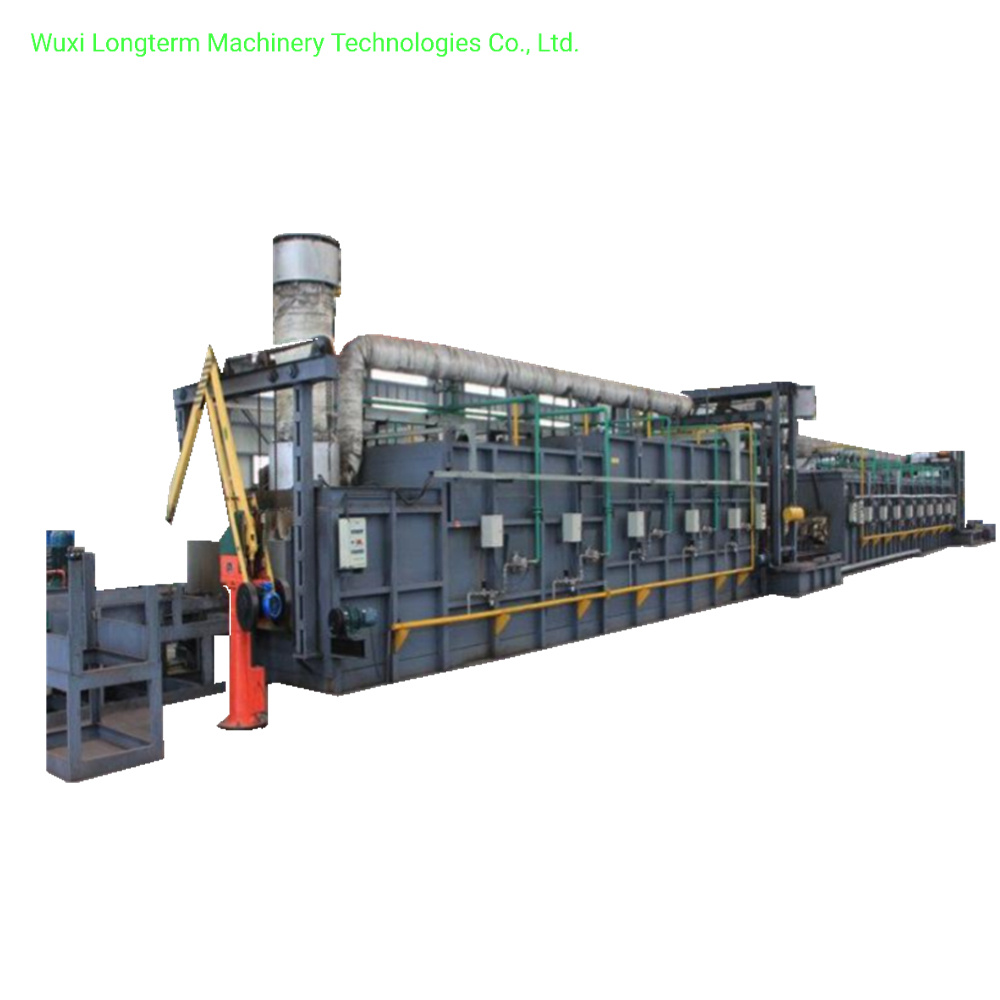

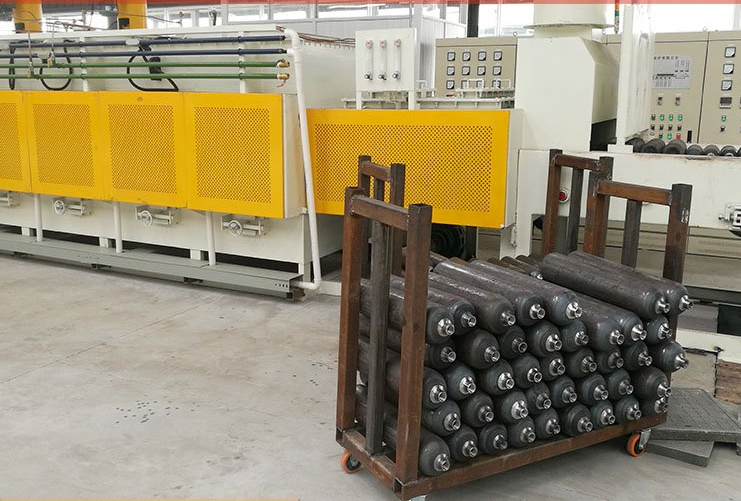

Hardening Furnace,CNG Cylinder Heating Furnace,Oxygen Cylinder Heating Furnace
Product Features: The line is comprised of three main parts :
1- Hardening furnace
2- Automatic quenching tank
3- Tempering furnace

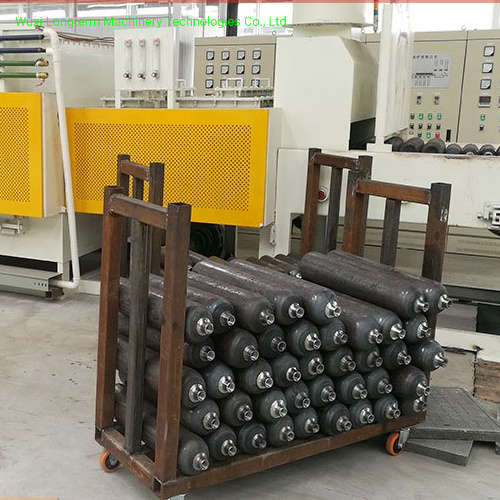

Capable of charging CNG cylinders in different sizes and weights
Continuous with adjustable motion pace

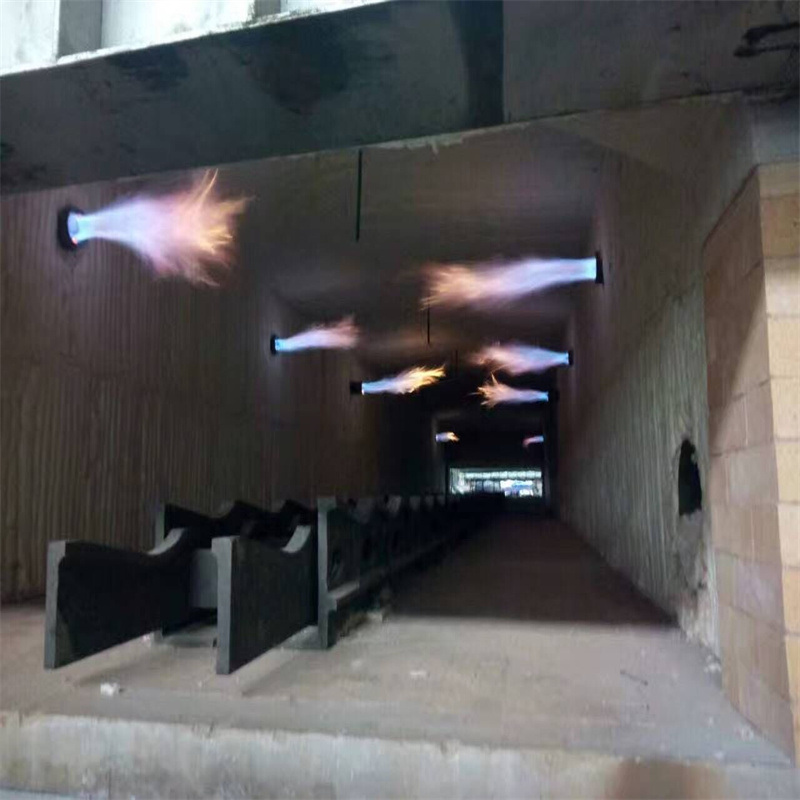

Gas fired heating system
No direct contact of flame with the surface of treated parts Hardening Furnace

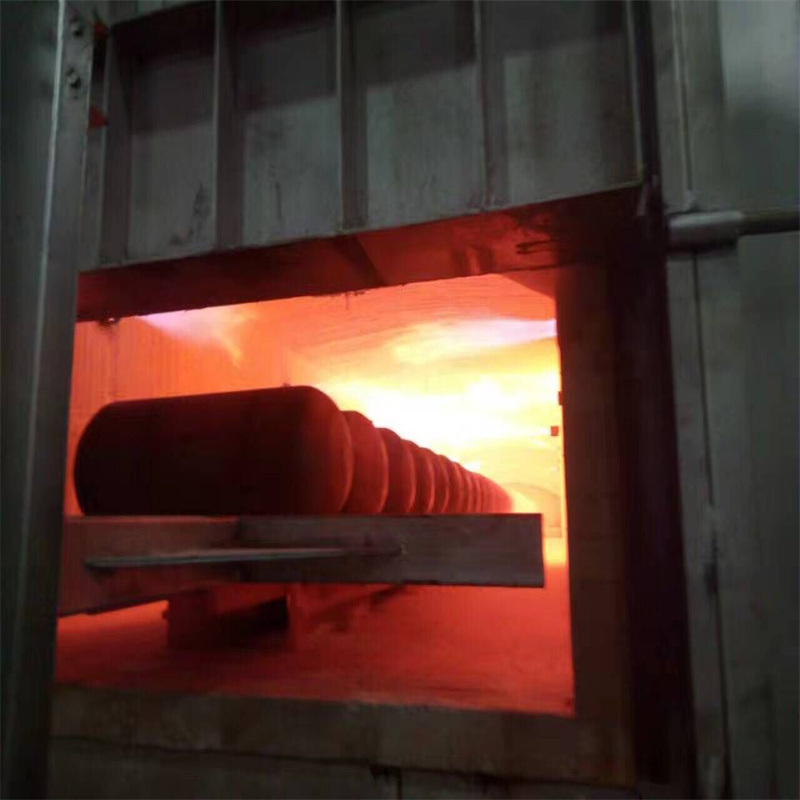

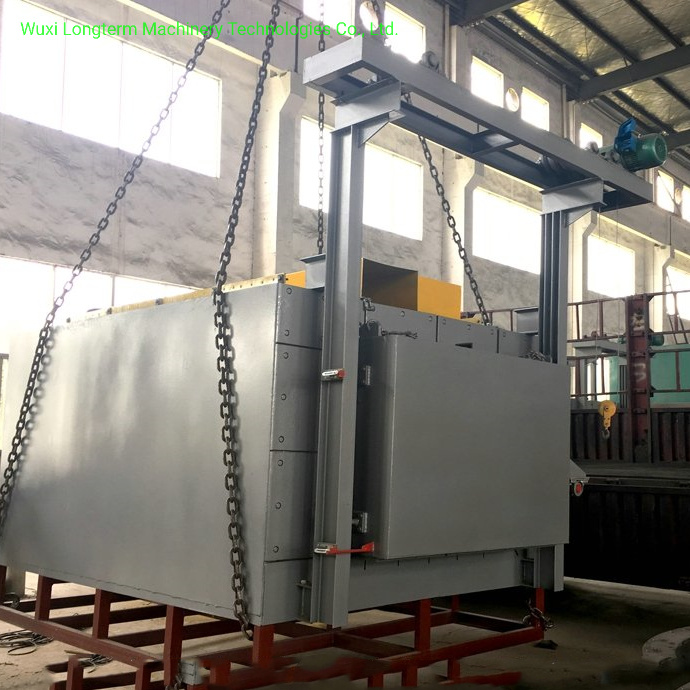

Gas fired heating system Continuous walking beam type
Maximum temperature: 1100°C
With preheating and soaking zones Low surface oxidation
Automatic cylinder charging and discharging tables Automatic Quenching Tank
Automatic immersion and extraction of the cylinders Affording various quenching methods
Equipped with the cooling and heating systems Suitable agitation inside the quenching tank Tempering Furnace
Gas-fired heating system
Continuous movement with conveyor or walking beam systems
Hot air circulation system to reach to the best thermal uniformity
Maximum operating temperature of 750°C
Including preheating and soaking zones with excellent thermal uniformity
No direct flame contact with treated parts | |
| Fuel name | Natural gas |
| Rated combustion power | 1080KW |
| Rated air consumption | about 109Nm3/h |
| The number of burners | 6 (one for each area on the left and right) |
| Temperature control accuracy | ±2ºC |
| Furnace temperature uniformity | ±10°C (holding section) |
| The distance between the steel cylinders in the furnace | 390mm |
| Process time | 70min |
Machine Configuration: PLC-controlled Automation & Monitoring System :
Capabilities of this system are:

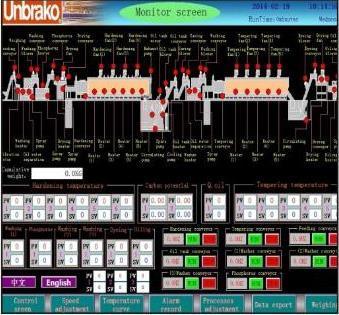

Temperature control and display of actual and set temperatures graphs in each zone
Display of burners status
Display of temperature graphs for each zone (Temperature-Time graph)
Data recording such as temperature, pressure, ...
Display of doors status
Display of system motion performance
Display of motor fans mode (On/Off)
Display of PLC operation option (Manual/Automatic)
Alarming in cases of air pressure drop, gas pressure?drop/rise, temperature rise in each zone, burner turn off and PLC malfunction We can supply CNG Cylinder continuous W.B type Heat treatment line (Hardening-Quenching-Tempering) from Capacity 1 T/Hr to 6 T/Hr. The Furnace could be Gas/Electrical fired with charging/discharging facility and complete automatic temp. as well as sequence control. Feature
1.Three shifts per day, one shift is 8 hours. Working days will be 250 in one year.
2.Production rate: 60pieces /h, or design as your needs.
3.Hardening Furnace Rated Temperature: ≤950ºC, or design as your needs.
4.Heating Zone: 6zones (pre heating: 1 zone, heating: 4 zones, soaking: 1 zone),temperature of each zone is separately controlled.
5.Tempering Furnace Rated Temperature: ≤680ºC , or design as your needs.
Electric parts list | Item | Brand |
| 1.PLC | Lincoin |
| 2.Transducer | Lincoin |
| 3.Touch screen | Proface |
| 4.Intermediate relay | Omron |
| 5.Photoelectric sensor | Omron |
| 6.Button | Schneidre |
| 7.Air cylinder | AirTAC |
| 8.Bearing | NSK |
Our Advantages: 1. Are you facing high cost of daily GAS Use? Our normalizing furnace has advanced control, energy saving, and imported main components.
The heating temperature is uniform, the operation is stable, and the service life is long.
The furnace is equipped with a circulating fan to make the atmosphere in the furnace more uniform and the hardness of the processed parts more uniform.
2. Do you need automation with cylinder production? We can make not only the furnace heating machinery but also the whole production line from beginning to the end. With full automation and robot arms, to ensure the least people in your production line.
3.Do you want to get perfect heating quality? Our heating machines are equipped with the laser and video tracking during whole welding progress, you can see the welding progress clearly, so that the heating torch can be tracked in the center of welding area, the tolerance can be controlled within +-2% for all directions. Thus the heating quality can be guaranteed.

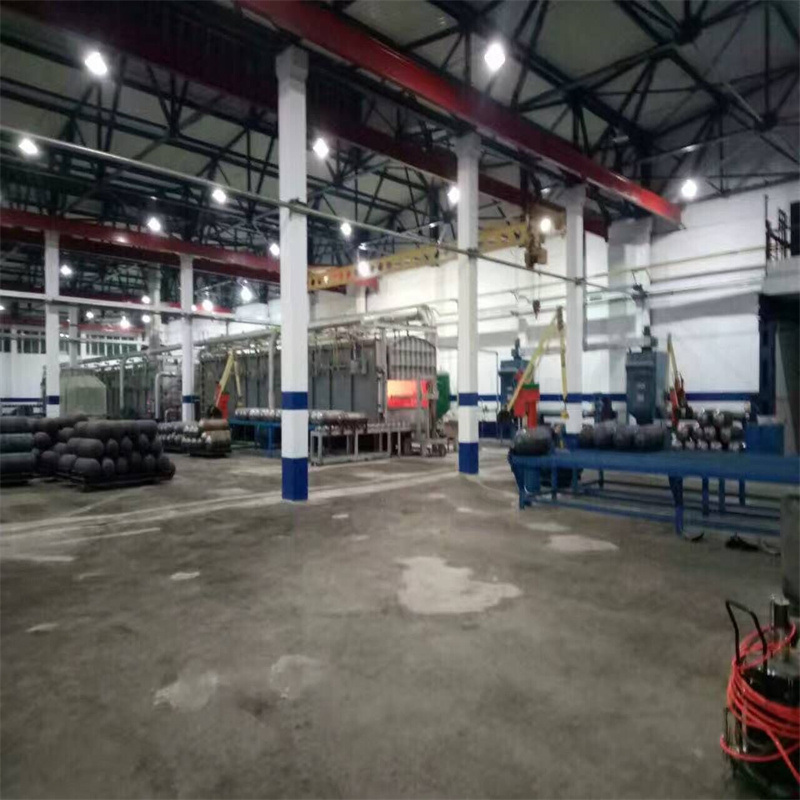

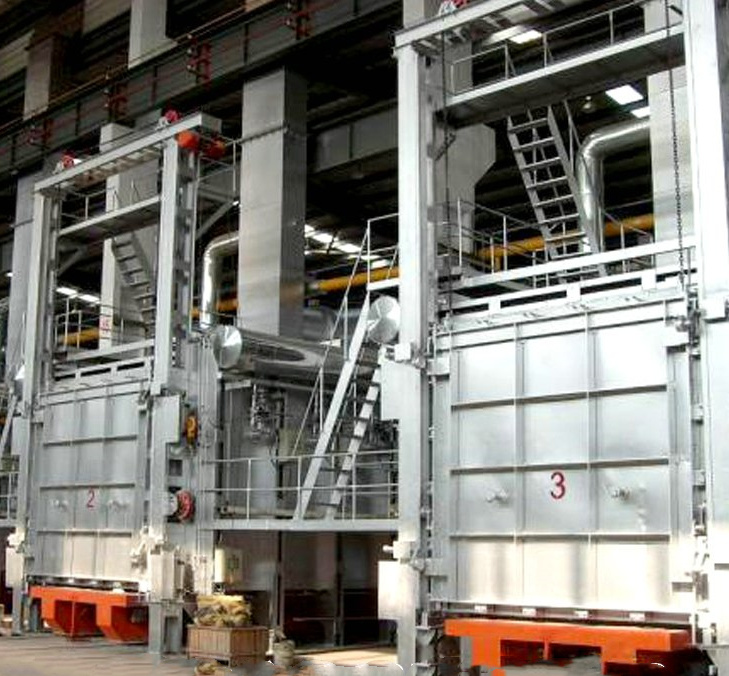

Using in Client's Factory
