China Seamless CNG Cylinder Neck in Hot Spinning Machine

Quantity:
  • LTMM406
  • 108-920mm
  • 400--2050mm
  • 4.2--14mm
  • <200kg
  • <80s/Bottle
  • Around 500kw
  • Acceptable
  • Main Engine, Hydraulic System, Feeding
  • Automatic or Manual
  • Pipe Neck in Machine for CNG and LNG Cylinder
  • Standard Seaworthy Package
  • customized
  • LONGTERM
  • China
  • 8463900090
  • 50 Sets/Year
  • 4000.00cm * 2000.00cm * 1500.00cm
  • 5000.000kg
  • Installation, Commissiong, Repairing
  • Life Time
  • 34CrMo4 (35 Crmo) 37mn 30 Crmo 45#

Product Description

Seamless CNG cylinder Necking & Bottom Closing Hot Spinning Machine

Seamless CNG Cylinder Necking Spinning Machine
Parameter
Double Roller Series CNC Playback General Spinning flow forming machine
Model Max.Rough Diameter
(mm)
Height from Spindle
to Tailstock
(mm)
Longitudinal Trust
(KN)
Radia Trust
(KN)
350PCNC 690 1100 24 24
450PCNC 890 1250 65 65
800PCNC 1590 1250 65 65
700PCNC 1400 2300 150 150
900PCNC 1800 2500 200 200
1200PCNC 2400 2500 300 300
1500PCNC 3000 3500 400 400
Name Unit QX63-10CNC QX63-20CNC QX63-30CNC
Max.Rough Diameter mm 400 600 700
Min.Rough Diameter mm 60 60 100
Max.Length of workpiece
(Positive rotation)
mm 1200 2000 2500
Max.Length of workpiece
(Contrarotation)
mm 2200 3000 4000
Double center distance mm 4700 6000 6500
Spindle speed rpm 30-600 30-600 30-500
Main engine power KW 37/40 100/110 120
Tail force KN 50 75 150
Spinning roller base longitudinal stroke mm 1500 2000/2500 2500/3000
Spinning roller base longitudinal thrust KN 170 250/300 400/450
Spinning roller base horizontal stroke mm 170 270 300
Spinning roller base horizontal thrust KN 3*100 3*200 3*300

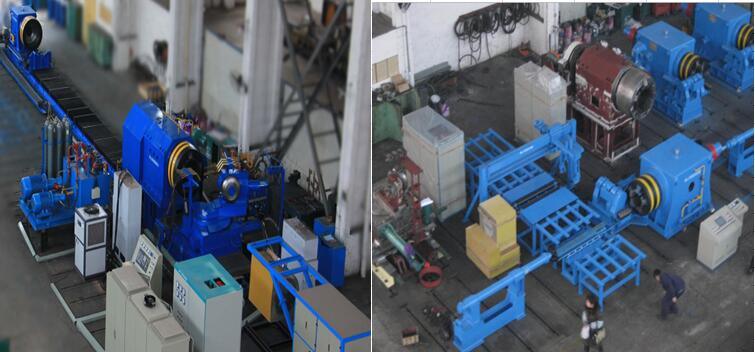

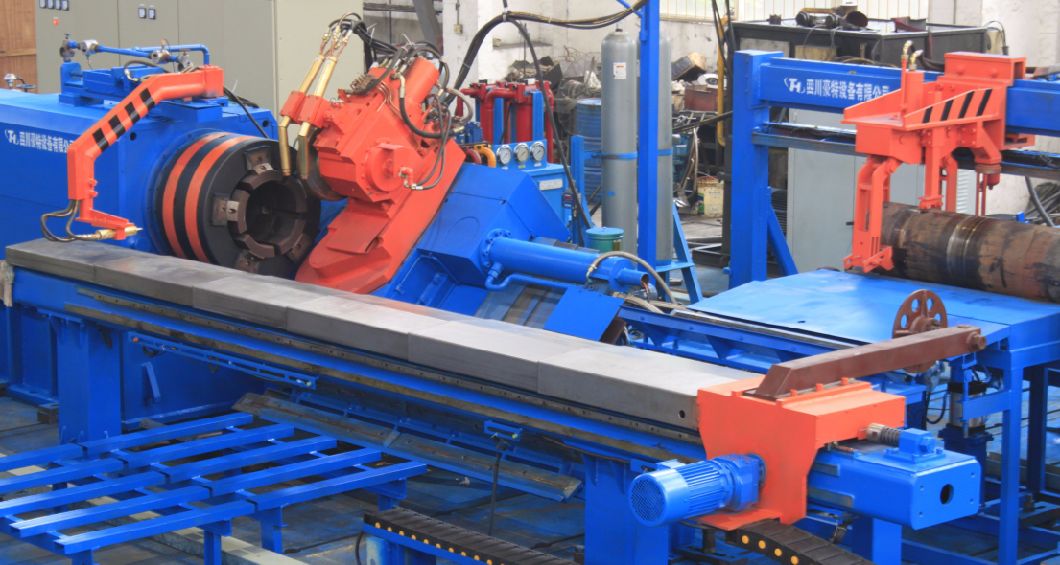

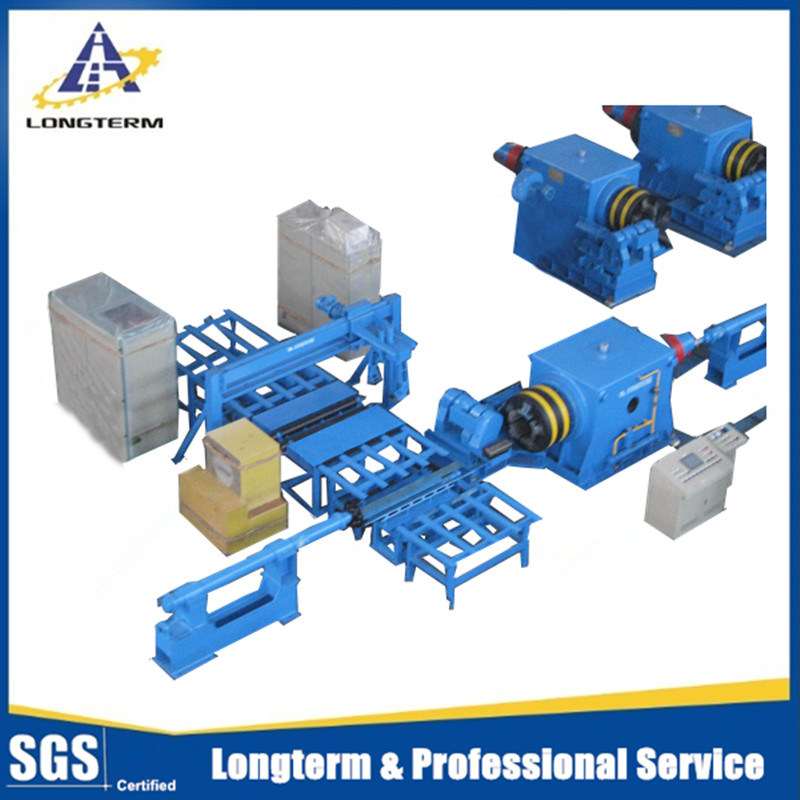

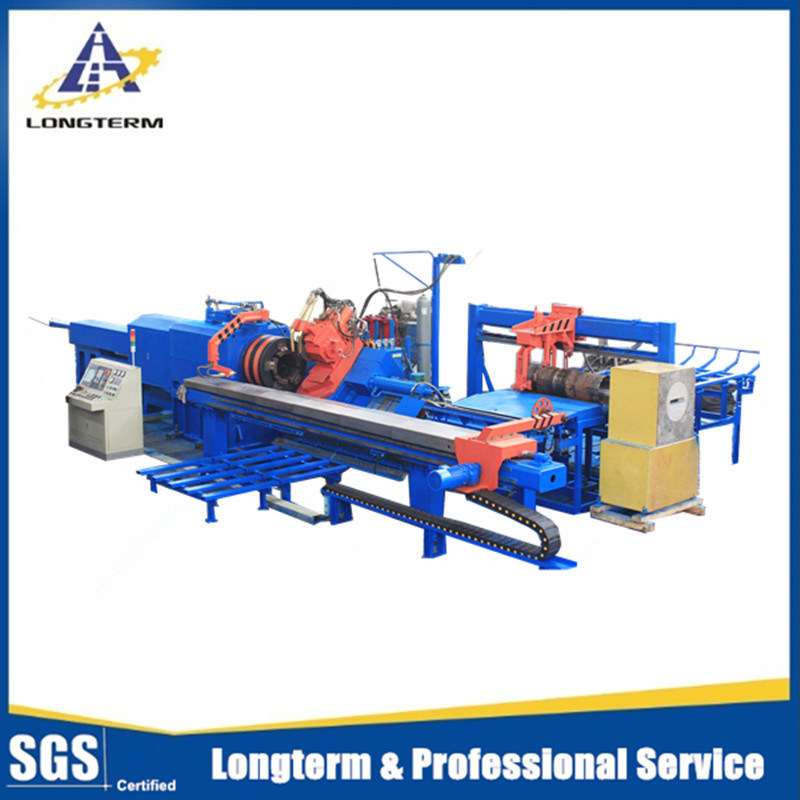

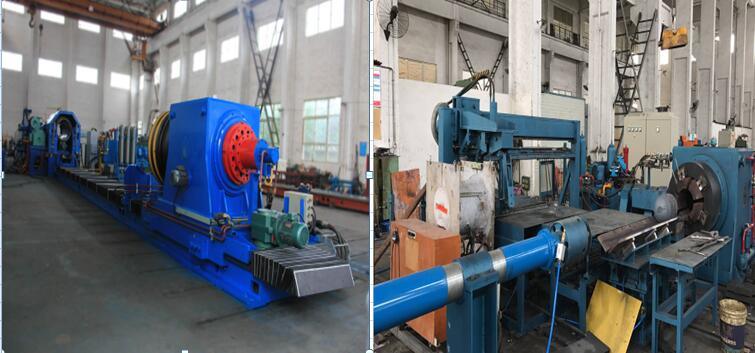

Picture of machine
Seamless CNG Cylinder Necking Spinning Machine
Seamless CNG Cylinder Necking Spinning Machine

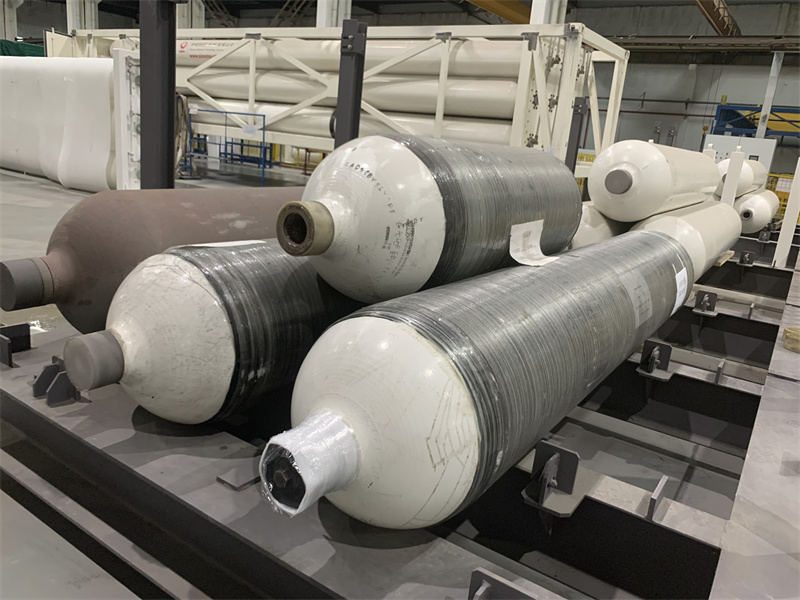

Picture of cylinder

China Seamless CNG Cylinder Neck in Hot Spinning Machine
China Seamless CNG Cylinder Neck in Hot Spinning Machine

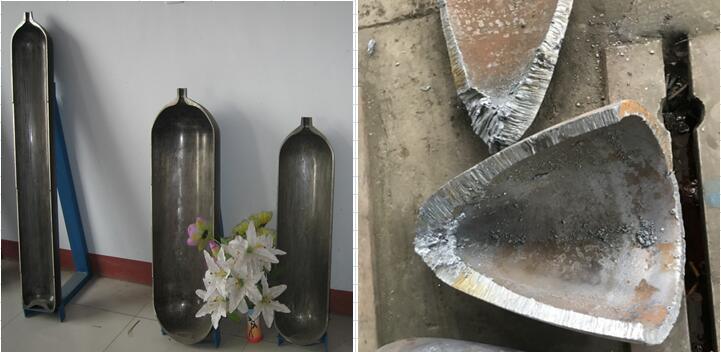

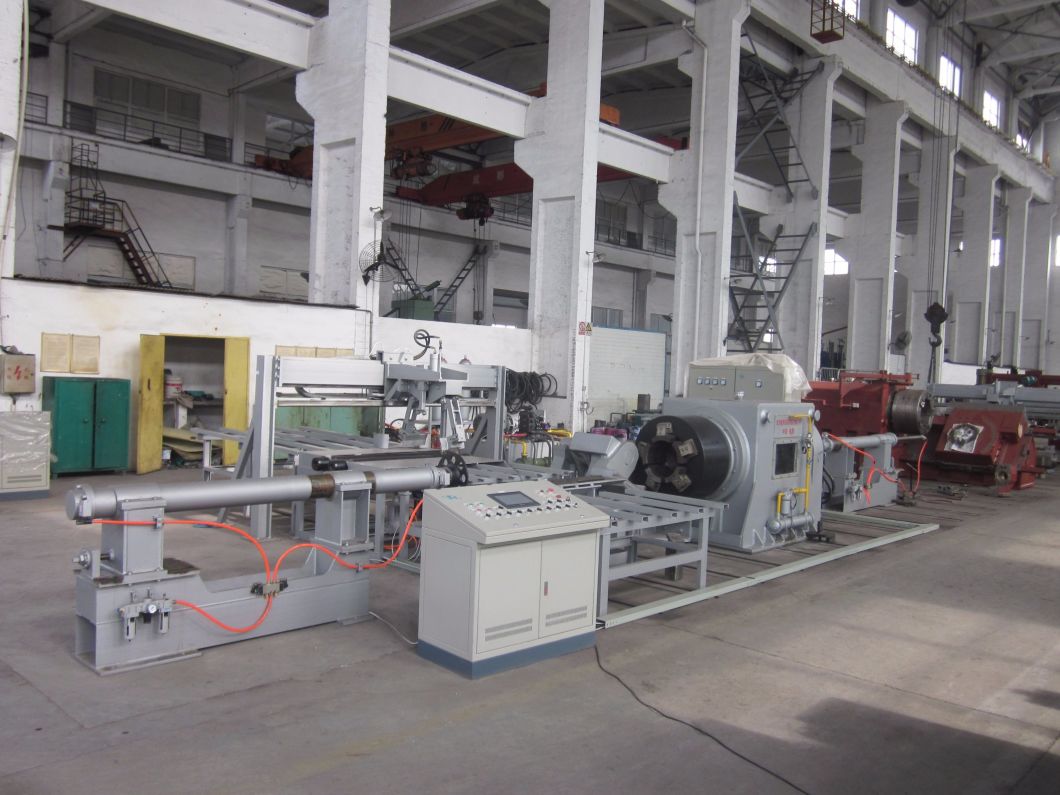

Picture of details
Seamless CNG Cylinder Necking Spinning Machine

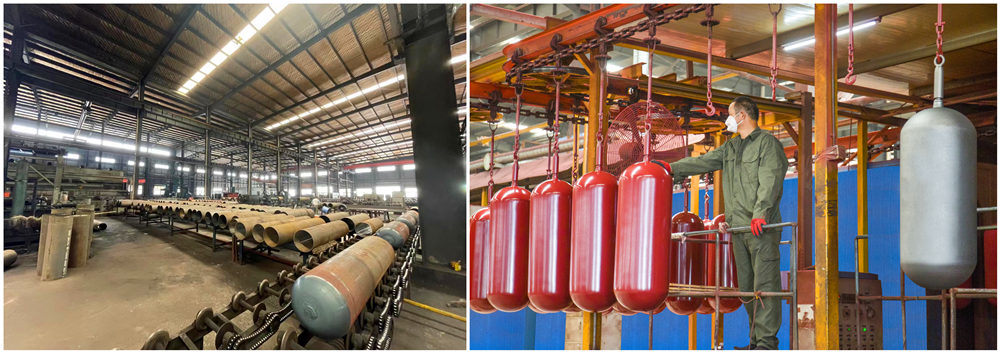

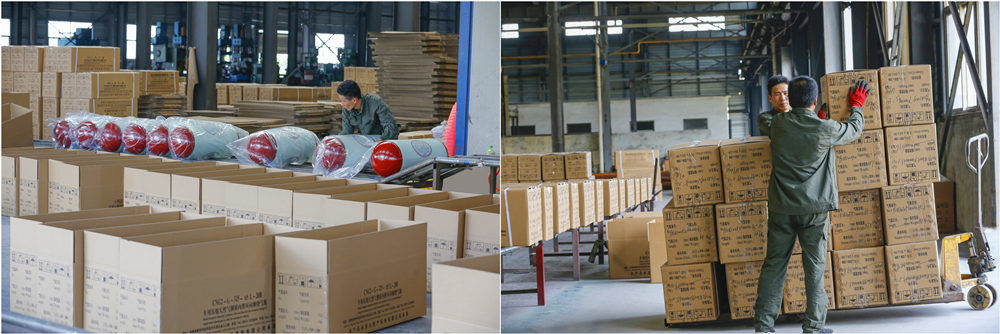

Picture of factory
Seamless CNG Cylinder Necking Spinning Machine


Brief Introduction:
Wuxi Longterm has been focused on the hot-spinning machinery production for more than 30 years. We own a professional technical team to provide all-sides service. We put ourselves to the development of this industry since establishing the company. With the advanced technology and the mature service, we cooperate with many clients from the worldwide, such as Russia, India, Iran, Turkey, Serbia etc. For more info, please feel free to contact us.
We've served CIMC Group for more than 10 years. Over these years, we've helped them built 6 production lines for CNG Tank Truck. It's our honor to have the chance to further cooperate with you.
Enable us to send you the more precise quotation, may we know the following questions?
1.May I have the technical drawing of the cylinders you want to product? If you don't have, pls let us know the size (diameter ) and the volumn (how many liters). Better with the picture
2.What's the daily capacity you need?
