China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

Share to:

China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Production Scope:
Product Line
Length:
250-1500mm
Thickness:
2.0-4.0mm
O.D:
150-300mm
Voltage:
Can Be Customerized
Size:
6kg/12kg/15kg/50kg
Shape:
Can Be Customrized
Color:
Can Be Customrized
Speed Regulation:
AC Frequency Conversion
Clamping:
Pneumatic Cylinder
Support:
Manual Operation Support
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
LONGTERM
Origin:
Jiangsu, China
HS Code:
844790900
Production Capacity:
10000sets/Year
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

China Production Line of LPG Gas Cylinders Price 48 kg Gas Tanks for LPG

Machine list:

No	Machine name
1	Power press
2	Hydraulic Shell Forming machine
3	Automatic trimming machine
4	Hole punching machine
5	Valve Seat Welding Machine
6	Bottom base welding machine
7	Protection enclosure welding machine
8	End dish shaping machine
9	Assembling Machine
10	Circumferential Seam welding machine
11	Annealing furnace
12	Sandblast machine
13	Power coating machine
14	Valve mounting machine
15	Air Leakage testing machine
16	Printing machine

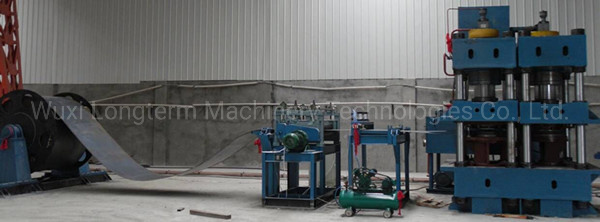

1.Decoiler, Straightening & Blanking line
To cut the steel sheet into a round one according to size of the cylinder
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

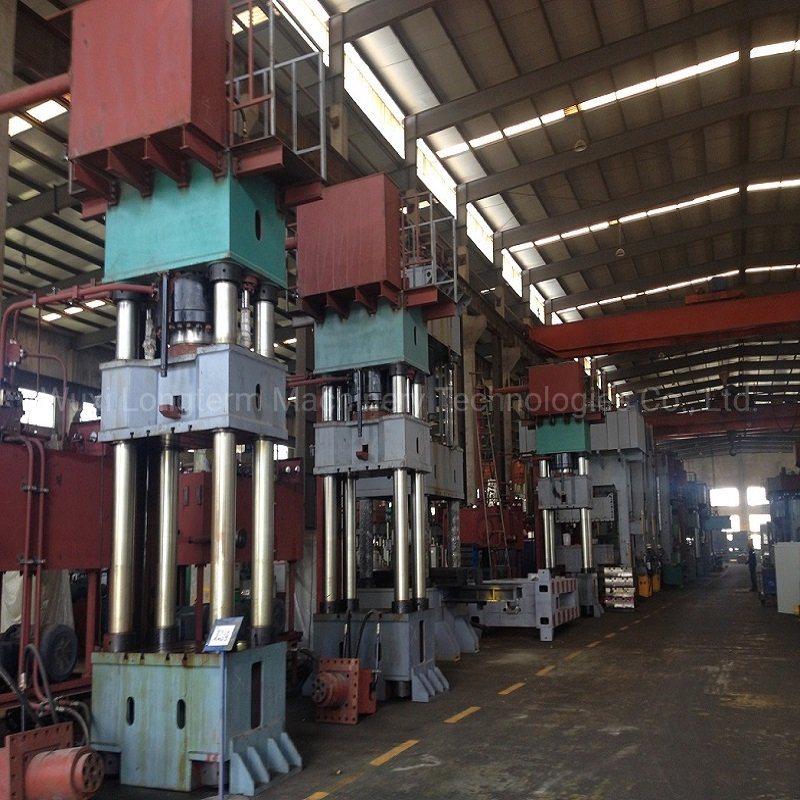

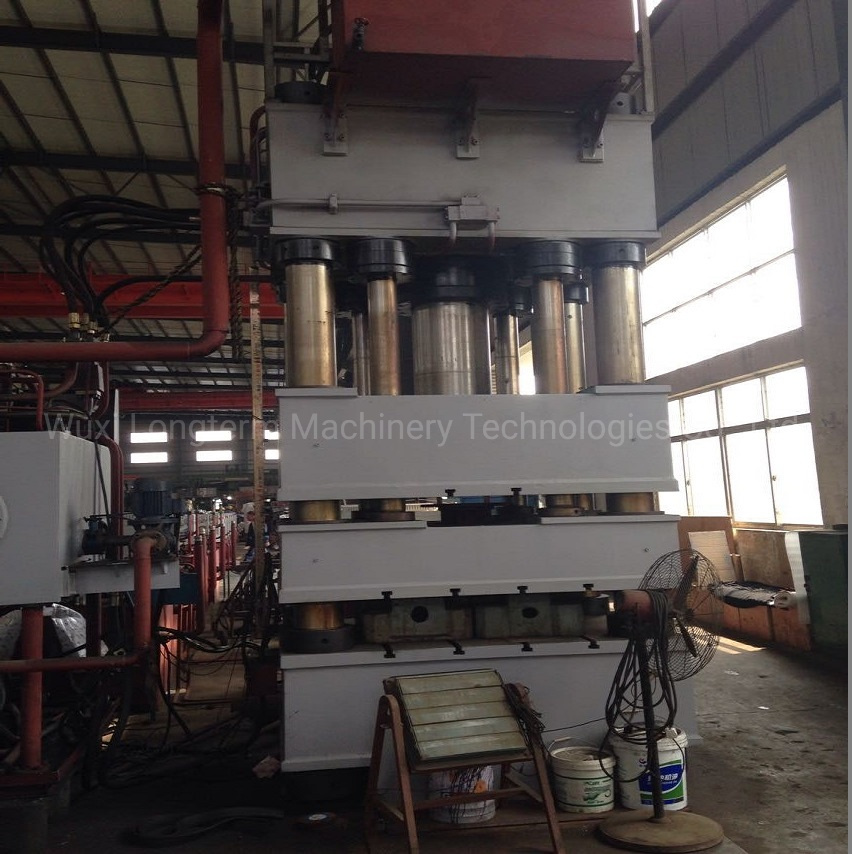

2.Hydraulic Shell Forming machine
Press the round sheet into a shell with dies.
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

3.Automatic trimming, jogging, polishing machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

4.Hole punching machine
Punch the hole on top of the cylinder

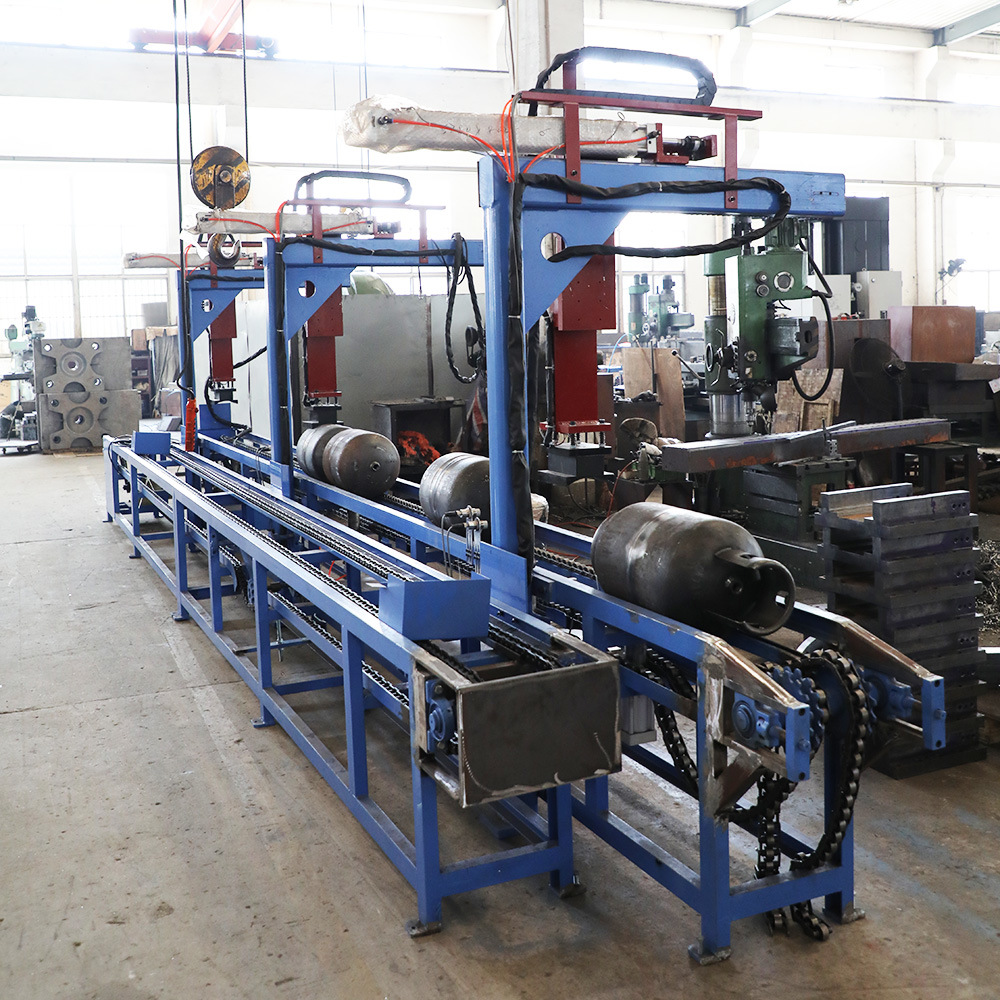

5.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time

6.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

7.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

8.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding

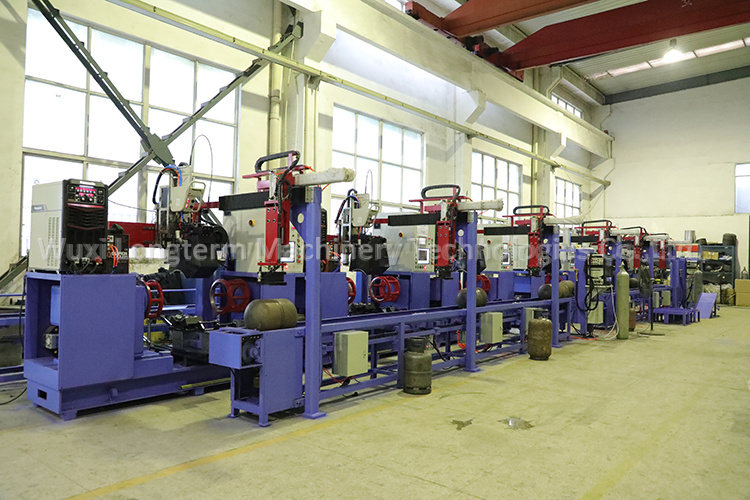

9.Circumferential Seam welding machine
Technical data

Description	Data
Payload capacity	200kg
Wall thickness	2.0-4.0mm
Rotation speed	0.05-0.5rpm
Diameter coverage	OD300-OD500mm
Speed regulation	AC frequency conversion
Suitable for work-piece length	1500mm
Clamping	pneumatic cylinder
Support	manual operation support

The machine is with good appearance welding seam. During the welding process, only the on-off signal has to be provided, the whole welding seam can be finished one time without halfway stop. Which increased the welding efficiency and improved the welding quality. Such circular welding equipment is easy to be operated and installed, can replace a lot of skilled welder.
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

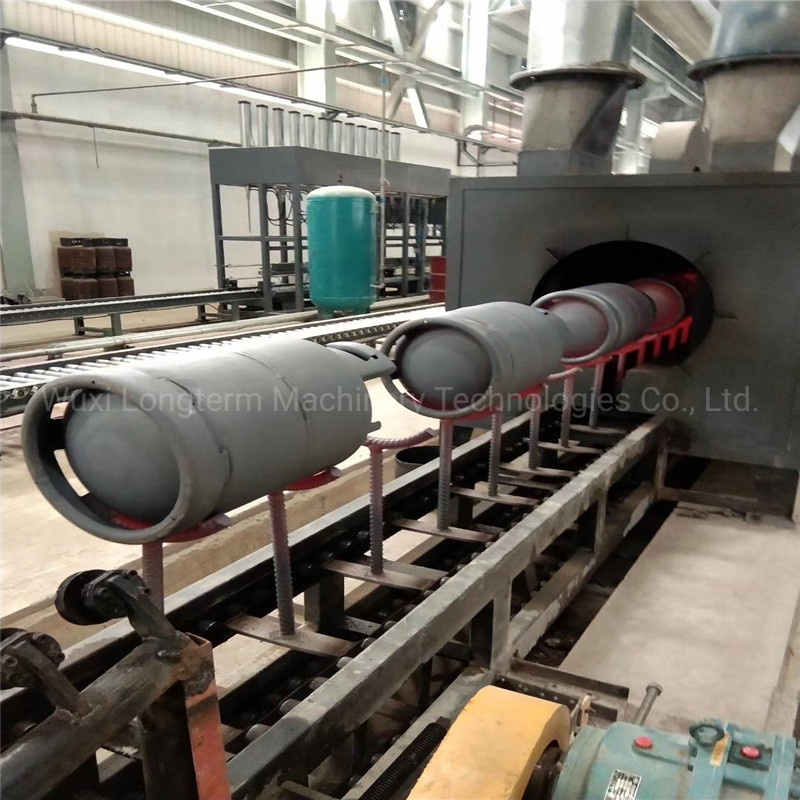

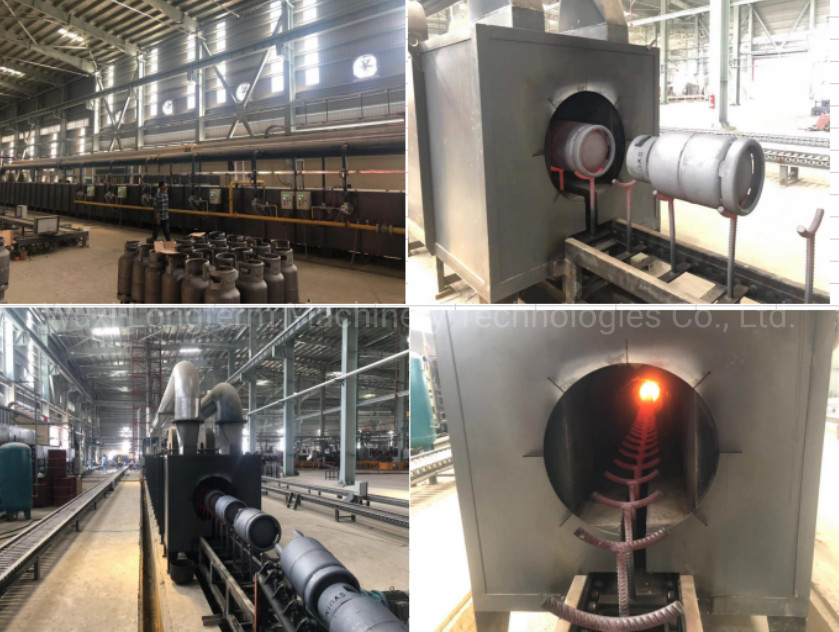

10. Annealing furnace
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

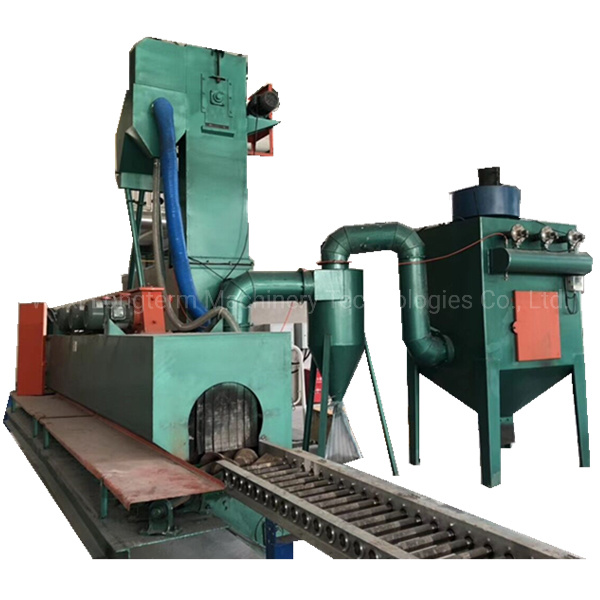

11.Sandblast machine
Remove the rust, oxide layer and burr free of pipe. Clean welding slag, showing a metallic luster,
make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel tube
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

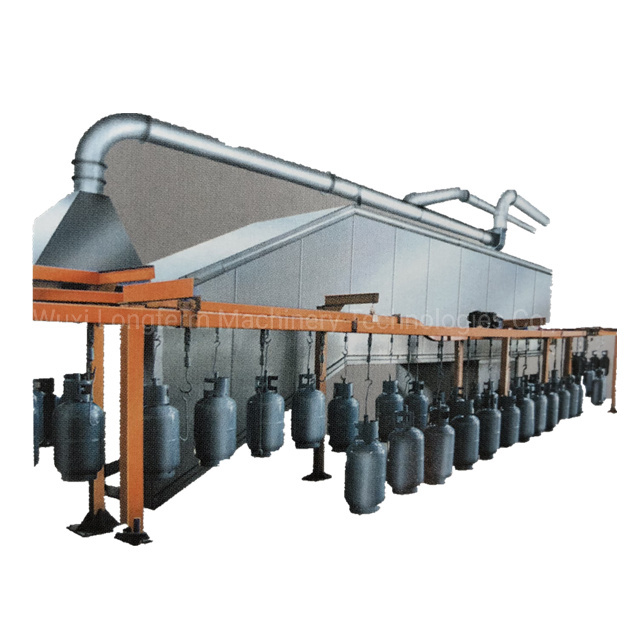

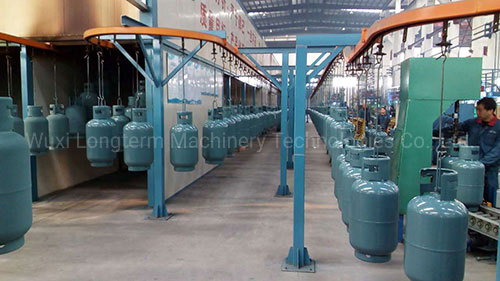

12.Power coating machine
Coating the cylinder surface to protect the cylinder from rusting

Item No.	HLT-12KG
Features	Strong and reliable structure & design Fast welding speed (0.8m/min) Low noise level<45dB Easy operation water cooling with copper backing covered with Argon gas
Standard Assessories	water cooling welding torch automatic cycling water tank Panasonic welding machines
Packing Details	Plywood cases/boxes
MOQ	1set
Warranty	1 year after delivery
Payment	T/T,L/C,D/P, Western Union
OEM & OEM	OK

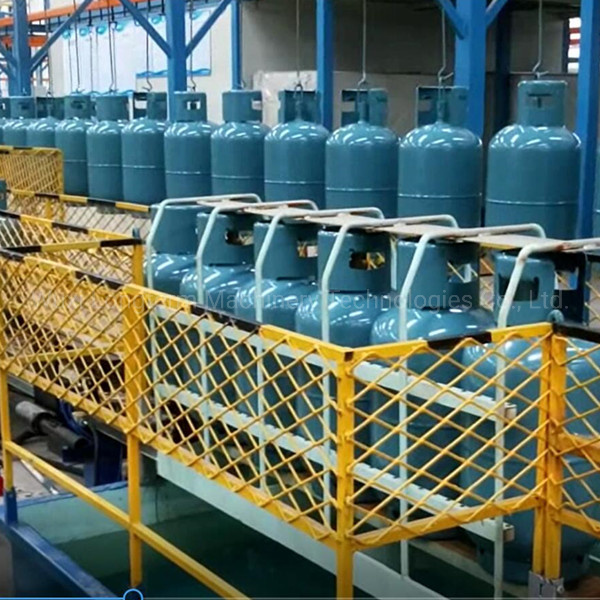

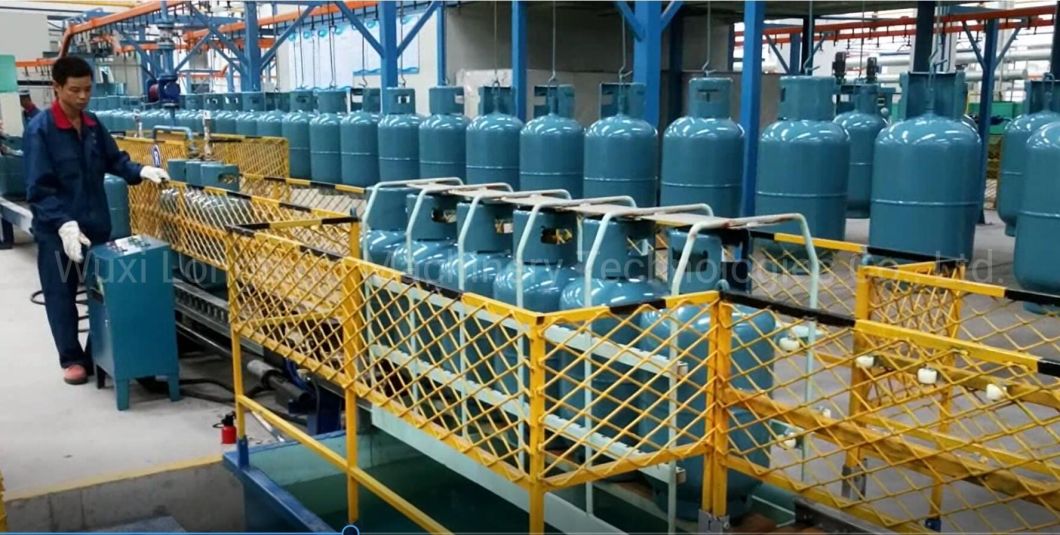

13. Air Leakage Testing Machine
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

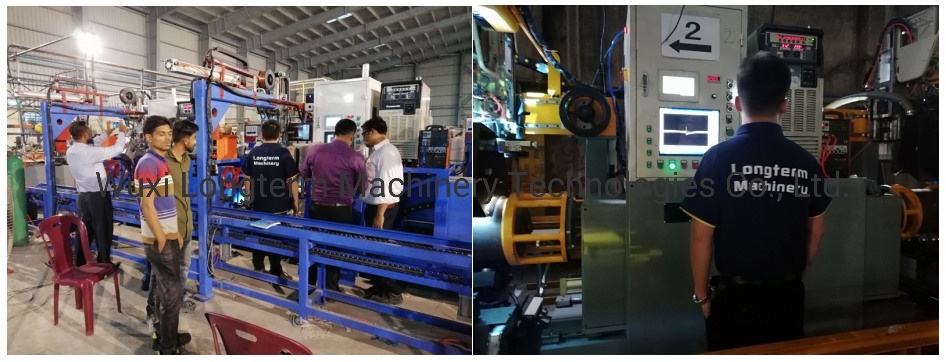

After Sale Service
Timely & Satisfied oversea installation service
We have rich experience for oversea installation and commissioning work, we always send the skilled engineers for assisting our clients to run the machine smoothly and quickly.
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

Company Introduction

Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of LPG cylinder making machine production line such as decoiler, straightening & blanking, deep drawing machine, auto trimming, jogging and polishing machine, auto-welding cylinder welding line, (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related equipment, hydro testing machine, furnace, etc... Due to our high-quality machine, our machine are popular all over the world.

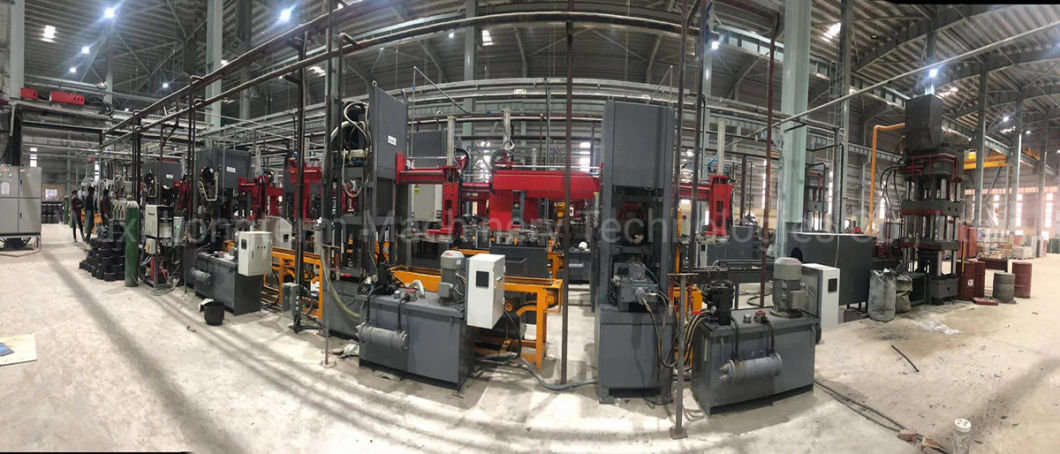

Our Factory Site
China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

Our strong machining ability

Our hired employees are over 100 for different working process, such as milling lathe, punching machine, heat treatment, grinding machine, cause we make all machine parts by ourselves, we can ensure the parts quality by 100%.

Additionally, with strong manufacuting ability, we can delivery every order on time.

Our Team

China Production Line of LPG Gas Cylinders Price 48 Kg Gas Tanks for LPG

FAQ
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg, 19kg, 35kg, 45kg, 50kg, etc...)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
