Best Popular 34CrMo4 Material Green Steel Gas Cylinder 50L Medical Oxygen Cylinder to Peru~

Share to:

Best Popular 34CrMo4 Material Green Steel Gas Cylinder 50L Medical Oxygen Cylinder to Peru~

Quantity:



Inquire Add to Basket

Model NO.:
WLT
Condition:
New
Capacity:
40 L
Valve Type:
Variable
Painting Color:
Customized
Logo:
Customized
Working Pressure:
150bar
Length:
1310mm
Weight:
46.5kg
Diameter:
219 or 229mm
Thickness:
5.7mm
Miq:
200 Pieces
Transport Package:
Sea Worthy
Specification:
Dia: 219mm 229mm
Trademark:
HLT
Origin:
China Jiangsu
Production Capacity:
650, 000 Per Year
Customization:
Available | Customized Request

Product Description

Product Description

Best popular 34CrMo4 material green Steel gas cylinder 50l MEDICAL OXYGEN CYLINDER to PERU~

Technical Parameters

Type	Outside diameter (mm)	Water capacity(L)	Height (Without valve) (mm)	(kg)	Service pressure (MPa)	Test pressure (MPa)	Design wall Thickness (mm)	Material
Type	Outside diameter (mm)	Water capacity(L)	Height (Without valve) (mm)	(kg)	Service pressure (MPa)	Test pressure (MPa)	Design wall Thickness (mm)	Material
WMA140-4-15	140	4			15	22.5	3.6	37Mn
WMA140-6-15		6
WMA 140-8-15		8
WMA140-10-15		10
WMA152-8-15	152	8	580	9.9	15	22.5	3.6	37Mn
WMA152-10-15		10	700	11.6
WMA152-12-15		12	820	13.4
WMA152-15-15		15	1000	16
WMA159-10-15	159	10	635	11.2	15	22.5	3.6	37Mn
WMA159-12-15		12	750	13
WMA159-15-15		15	920	15.6
WMA159-18-15		18	1090	18.2
WMA219-20-15	219	20	690	23.9	15	22.5	5	37Mn
WMA219-23-15		23	780	26.2
WMA219-26-15		26	870	29.2
WMA219-29-15		29	950	30.9
WMA219-32-15		32	1040	34
WMA219-34-15		34	1100	35.6
WMA219-36-15		36	1160	37.3
WMA219-38-15		38	1220	39.2
WMA219-40-15		40	1280	41
WMA219-42-15		42	1340	42.7
WMA219-45-15		45	1430	45.7
WMA219-47-15		47	1490	47.1
WMA219-50-15		50	1575	49.3
WMA219-21-15	219	21	730	27.5	15	22.5	5.7	37Mn
WMA219-23-15		23	790	29.5
WMA219-25-15		25	850	31.5
WMA219-28-15		28	940	34.5
WMA219-30-16		30	1000	36.5
WMA219-32-15		32	1060	38.5
WMA219-34-15		34	1120	40.4
WMA219-36-15		36	1180	42.4
WMA219-38-15		38	1240	44.4
WMA219-40-15		40	1300	46.4
WMA219-42-15		42	1360	48.4
WMA219-45-15		45	1450	51.3
WMA219-47-15		47	1510	53.3
WMA219-50-15		50	1600	56.3
WMA232-38-15	232	38	1110	41.3	15	22.5	5.4	37Mn
WMA232-40-15		40	1160	43
WMA232-42-15		42	1215	44.8
WMA232-45-15		45	1290	47.3
WMA232-47-15		47	1345	49.2
WMA232-50-15		50	1425	51.9
WMA232-52-15		52	1480	53.7
WMA232-38-15	232	38	1120	45.7	15	22.5	6	37Mn
WMA232-40-15		40	1175	47.8
WMA232-42-15		42	1230	49.9
WMA232-45-15		45	1305	52.6
WMA232-47-15		47	1365	54.9
WMA232-50-15		50	1445	57.9
WMA232-52-15		52	1495	59.7

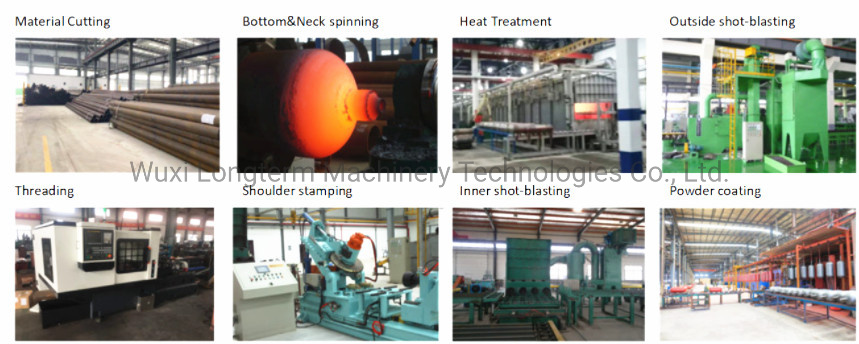

The whole process for manufacturing seamless cylinder:

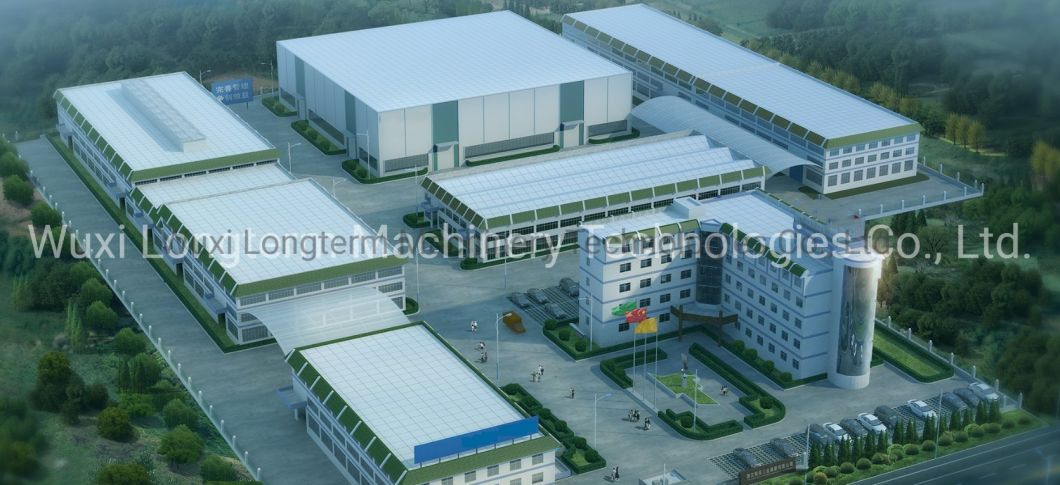

Company Profile

Our company has the production qualifications of steel seamless gas cylinders and welding gas cylinders issued by the General Administration of Quality Supervision, Inspection and Quarantine. The products produced have passed GB/T5099, GB/T5842, GB/T5100, GB/T24159, ISO 9001, ISO 9809- l.ISO 9809-3 quality certification, obtained German TPED, TUV certification, American DOT certification. The company has an efficient operation quality assurance system, with physical and chemical testing, non-destructive testing, material analysis, mechanical property inspection and test facilities and professional technical personnel; at the same time, it has a cooperation team with universities, such as Shandong University, Zhejiang University, etc., dedicated to improving the performance of raw materials. The automation of the equipment has improved R&D, and passed the "Intellectual Property Certification", has nearly 10 trademarks such as "Yongan", "YA" and "Luan", has obtained 15 invention and utility model patents, and won the "Municipal Key Engineering Laboratory" It was confirmed with the "City Enterprise Technology Center".The medical oxygen cylinders produced by the company were confirmed as anti-epidemic materials in the fight against the new coronary pneumonia epidemic and provided oxygen guarantee for the rehabilitation of patients!

Certificate and Patents

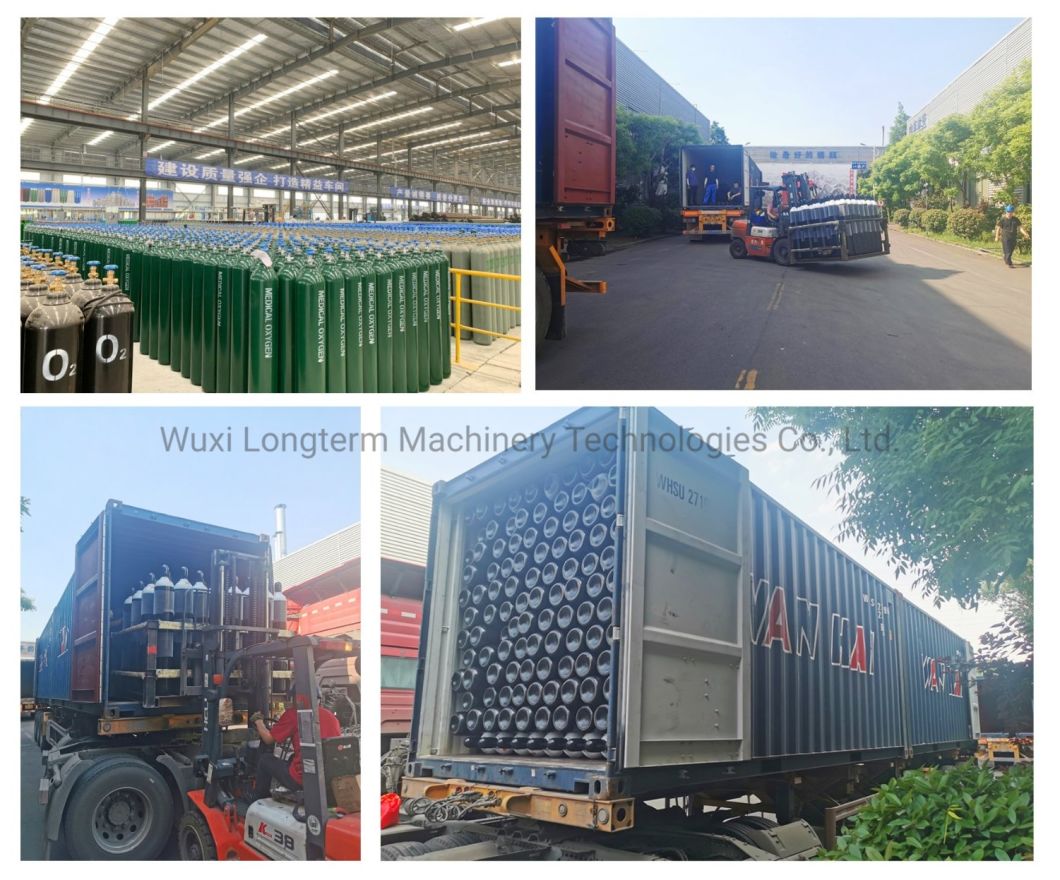

Delivery & Package

FAQ
1.Why choosing us?
We're professional manufacturer focused on the LPG field for more than 30 years. We can offer the most suitable
products and the best after-sale service for you.

2.Can the cylinders be customized?
Yes. We can produce according to your techinical drawing or picture.

3.What about the delivery time?
If the amount is below 500,000 pcs, we can all deliver within one month.

4.What about your quality?
We follow strictly the production and testing procedure. We can serve the best quality gas cylinders.

5.Do you have any other relative equipments in sale?
Yes, we are also providing the CNG gas cylinder equipment selling and the whole production line installation

Wuxi Longterm Machiney is located in Jiangsu Province. The company has the production qualifications of steel seamless gas cylinders and welded gas cylinders issued by the General Administration of Quality Supervision, Inspection and Quarantine. The products produced have pacertification, obtained German TPED, TUV certification, American DOT certification. The company has an efficient quality assurance system, with physical and chemical testing, non-destructive testing, material analysis, mechanical performance inspection and testing facilities and professional technic.
