Automatic LPG Gas Cylinder Seam Welding Machine

Share to:

Automatic LPG Gas Cylinder Seam Welding Machine

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Welding Turning Rolls Type:
Self-Adjusting
Welding Tilter Type:
Flexible Combination
Condition:
New
Low Noise Level:
<45dB
Vessel Diameter:
Dn250-800mm
Wall Thickness:
2.5-8mm
Welding Speed:
Depends on Welding Machine, Panasonic or Lorch
Material:
Carbon Steel or Stainless Steel
Welding Torch:
Double or Single Welding Torch
Production Capacity:
333PCS/8hours, 500
Controllers:
PLC
Payload Capacity:
200kg
Clamping:
Pneumatic Cylinder
Product Name:
Automatic LPG Gas Cylinder Seam Welding Machine
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
LONGTERM
Origin:
China
HS Code:
830710000
Customization:
Available | Customized Request

Product Description

Product Description

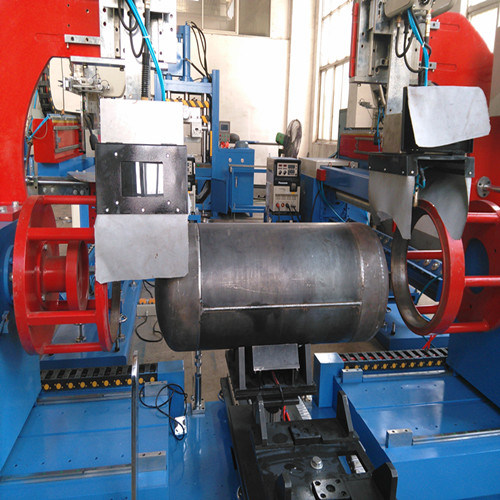

Circumferential Welding Machine of 15kg Cylinder Production

A. Product description
Pressure cylinder welding machine is used for MAG welding of LPG, LNG cylinder, fire extinguisher bottle, etc...

Vessel diameter: DN250-800mm
Wall thickness: 2.5-8mm
Welding speed: Depends on welding machine, Panasonic or Lorch
Material: Carbon steel or stainless steel
Welding torch: Double or single welding torch
production capacity: roughly 333pcs/8hours Automatic LPG Gas Cylinder Seam Welding Machine

Modle	Auto Circumferential & Linear Welding Machine
Features	Strong and reliable structure & design Fast welding speed (0.8m/min) Low noise level<45dB Easy operation Water cooling with copper backing covered with Argon gas
Applications	Our Circumferential Welding Machines are most commonly used in tank production. ? LPG cylinder ? LNG gas station ? Cryoease ? Storage tank
Range of Working Piece	Range of working piece Thickness of working piece: 2.5mm-6mm Dia. of working piece: 250mm-400mm Length of working piece: ≤1500mm, could be customized
Custom Designed Equipment Components	For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical controls such as: ? Programmable Logic Controllers (PLCs) ? Standard Push Button Controls ? Emergency Stop Buttons ? Safety Sensors ? Audiovisual Alarms ? Data Acquisition
Standard Assessories	water cooling welding torch automatic cycling water tank Panasonic welding machines
Packing Details	Plywood cases/boxes
MOQ	1set
Warranty	1 year after delivery
Payment	T/T,L/C,D/P, Western Union
OEM & OEM	OK

Longitudinal Seam Welding Machine
Description	Data
Effective length	1500
Clamping	pneumatic with keyboard and clamping board
Clamping control	footswitch/remote control
Trolley motion speed	100-500mm/min
Wall thickness	2.0-4.0mm
Mandrel cooling	external water cooling
Cable assembly	drag chain

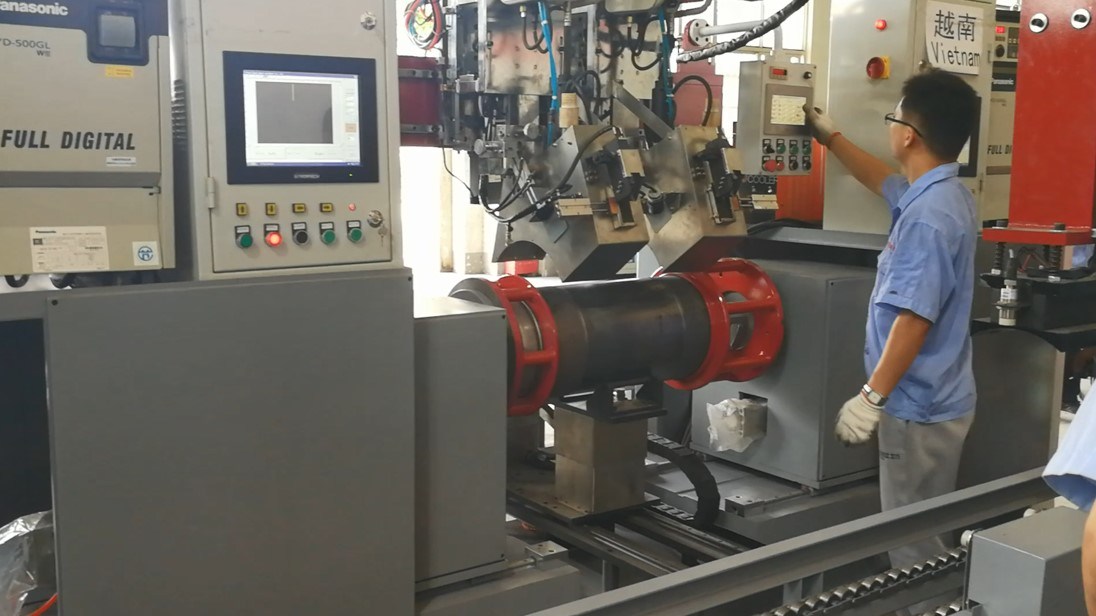

Circumferential Seam Welding Machine(Single Head & Double Heads Welding)
Description	Data
Welding Speed	0-1000mm/min
Welding Current	5-400A
Payload capacity	200kg
Wall thickness	2.0-4.0mm
Rotation speed	0.05-0.5rpm
Diameter coverage	OD300-OD500mm
Speed regulation	AC frequency conversion
Suitable for work-piece length	1500mm
Clamping	pneumatic cylinder
Support	manual operation support
Capacity(for Double Heads Welding)	1.1or 2 torches are usually built in 2.Multiple torches up to 4-5 3.Adjustable for various thickness 4.Precision longitudinal track for smooth travel

B. Producing process

Automatic LPG Gas Cylinder Seam Welding Machine

Producing Process
Automatic LPG Gas Cylinder Seam Welding Machine

Shot blasting machine
Automatic LPG Gas Cylinder Seam Welding Machine

Powder coating line
Automatic LPG Gas Cylinder Seam Welding Machine

C. FAQ
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following the details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
