Automatic LPG Cylinder Saw Welding Machine, Guard Ring Welding Machine

Quantity:
  • Flow Production Line
  • Product Line
  • Installation, Commissiong, Repairing
  • LPG Cylinder Making Plant
  • 1000PCS/8hrs; 2000PCS/8hrs; 3000PCS/8hrs
  • 380V 50Hz or Customized
  • Automatic or Semi-Automatic
  • LPG Gas Cylinder Production
  • 1kg, 3kg, 6kg, 9kg, 11kg, 12/12.5kg, 13kg~100kg
  • DOT CE ISO
  • 1
  • 0.6MPa
  • 0.55kw
  • 2.0 mm
  • Standard
  • customized
  • LTM
  • Wuxi, Jiangsu, China(Mainland)
  • 8515390000
  • 500 Sets Per Year
  • US$ 300/Piece 1 Piece(Min.Order) | Request Sample

Product Description

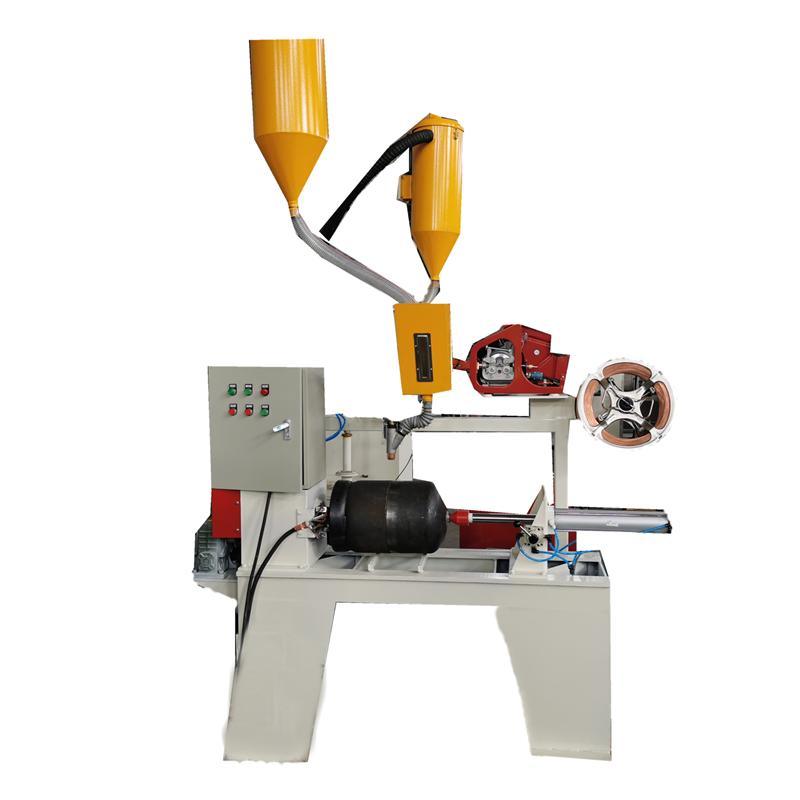

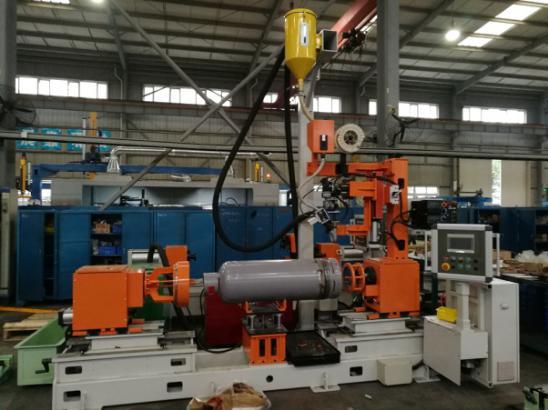

Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam SAW Welding Machine~


Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~


Product Features:
This production line is specially used for LPG cylinder automatic and continuous circumferential welding after assembly of upper shell and lower shell. Provide the users a complete, high efficiency and high quality solution for circumferential welding line to maximumlly improve the competitiveness of enterprises products.
It adopts automatic circumferential welding machine, magnetic suction loading arms device, three-station feeding mechanism. This kind of devices can complete the workpiece loading and unloading action automatically to achieve high efficient, safe interlocking, coordination and linkage. Maximumlly improving the working efficiency, reducing labor-assisted operations and labor intensity. Getting rid of the dependence on the operators, while stably improving the quality of cylinder circumferential welding seam.
2000 pcs cylinders/8 Hours
Description
Saw welding
Capacity
240 pcs/8hrs/set
No. of welding machines
8
No. of welders
8~16
No of welding pass
two paths
Power consumption
0.55kw per set
Wire consumption
2.0mm, Model: H08A, Flux: 431
Auto laser & video tracing device
has auto laser & video tracing device

Machine Configuration:
This production line is specially used for LPG cylinder automatic and continuous circumferential welding after assembly of upper shell and lower shell. Provide the users a complete, high efficiency and high quality solution for circumferential welding line to maximumlly improve the competitiveness of enterprises products. It adopts automatic circumferential welding machine, magnetic suction loading arms device, three-station feeding mechanism. This kind of devices can complete the workpiece loading and unloading action automatically to achieve high efficient, safe interlocking, coordination and linkage. Maximumlly improving the working efficiency, reducing labor-assisted operations and labor intensity. Getting rid of the dependence on the operators, while stably improving the quality of cylinder circumferential welding seam.
Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~

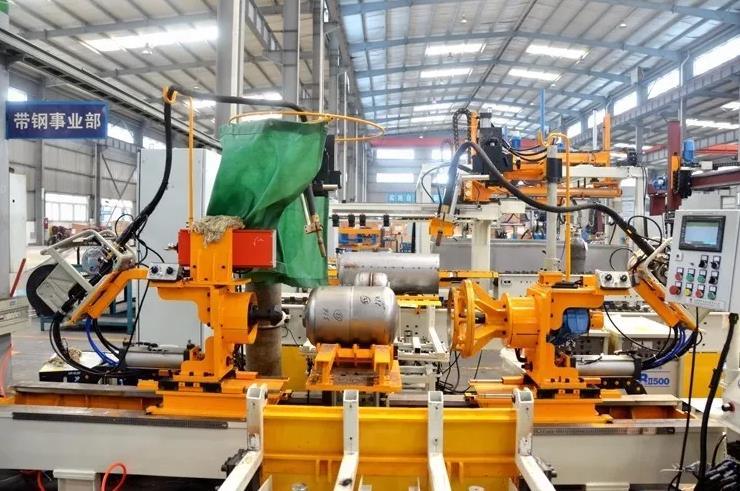

This line including: 3 sets of circumferential welding machine, 3 sets of vertical assembly & spot welding machine. Completed with one inlet conveyor line and one outlet conveyor line, 3 sets of magnetic loading arms, 3 sets of three-station automatic feeding dece, self discharging roller, pneumatic stop mechanism, pneumatic cutting mechanism, therminal limit stop. It adopts magnetic loading arms to catch workpiece and feed workpiece automatically. It adopts three-station automatic feeding device to collect workpiece, load and unload workpiece, cooperated with self discharge roller to convey the welding finished workpiece on the outlet line, and send out the finished workpiece. Auxiliary machine is controlled by automatic circumferential welding machine.

Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~


Electric parts list
Item Brand
1.PLC Lincoin
2.Transducer Lincoin
3.Touch screen Proface
4.Intermediate relay Omron
5.Photoelectric sensor Omron
6.Button Schneidre
7.Air cylinder AirTAC
8.Bearing NSK

Our Advantages:
1. Are you facing short of Argon Gas for MIG Welding?
Our SAW welding machine is the perfect option for replacement of MIG/MAG welding machine. With automatic option and semi-automatic option.

Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~
2. Do you need automation with conveyor chain?

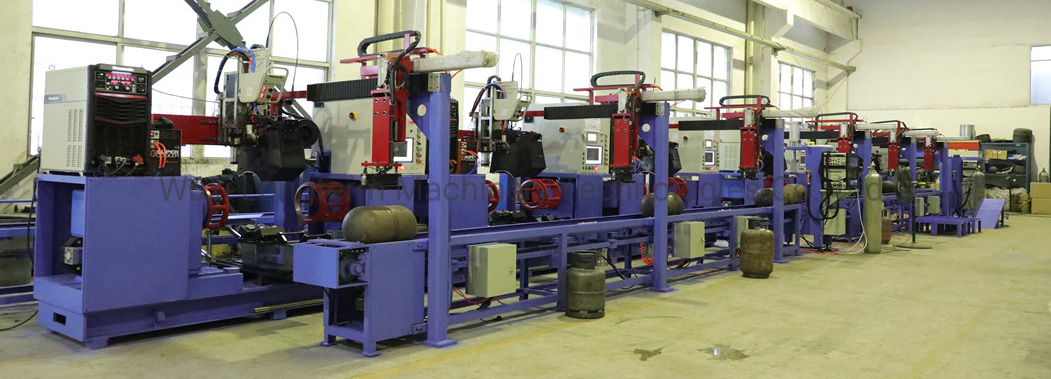

We can make not only the welding machinery but also the whole production line from beginning to the end. With full automation and robot arms, to ensure the least people in your production line.

Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~

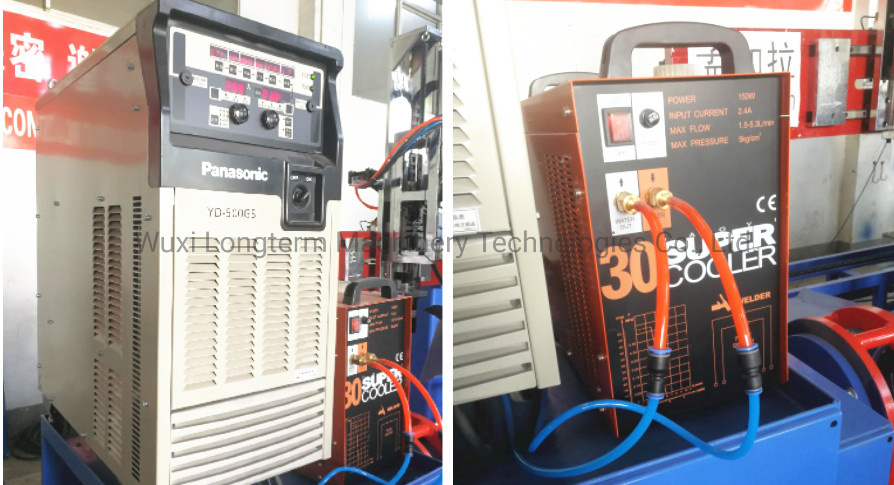

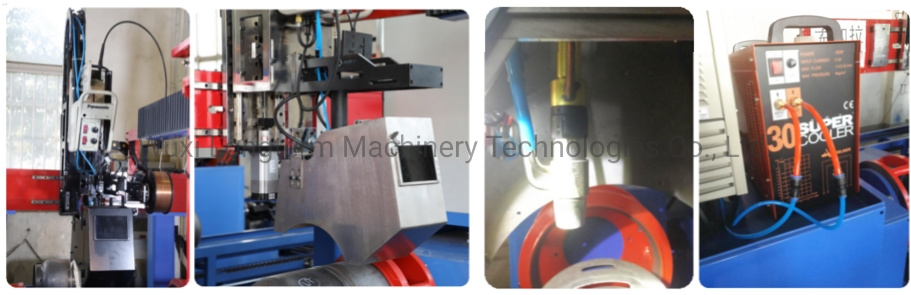

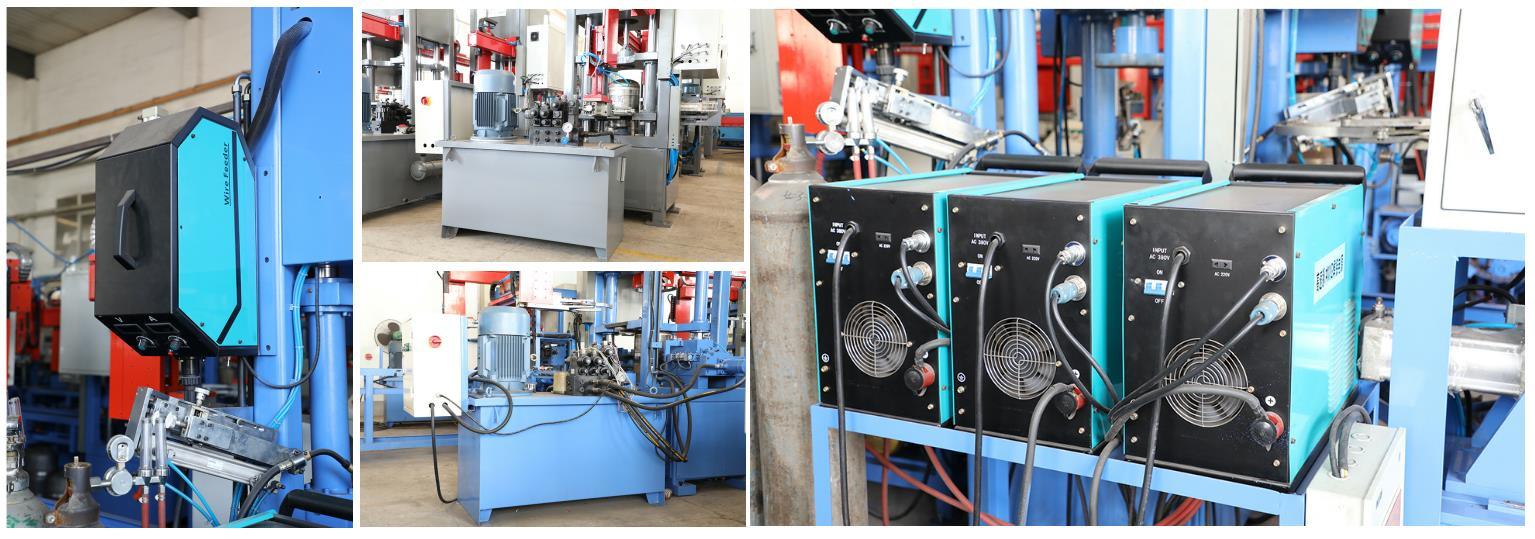

3.Do you want to get perfect welding quality? Our welding machines are equipped with the laser and video tracking during whole welding progress, you can see the welding progress clearly, so that the welding torch can be tracked in the center of welding area, the tolerance can be controlled within 0.01mm for all directions. Thus the welding quality can be guaranteed.The welding source we use is Panasonic Welding Machine which is specially designed for us.
Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~

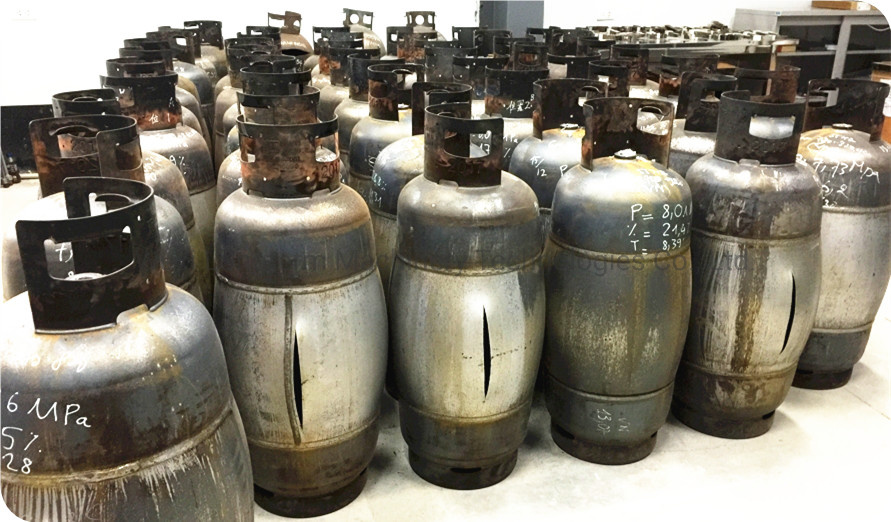

Although it's one-pass welding, the welds quality can be guaranteed, we haven't got any complaint about the welds quality from our clients yet. In China, one cylinder will be selected from each batch randomly to do X-ray testing and the burst testing.I believe these tests will be done in your country as well.
Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~
Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~


Packing & Delivery
Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~

Wuxi Longterm Machinery Technologies Co.,Ltd. specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time.

Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh,
Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya,Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the
manpower and increasing the productivity.


Some pictures of our exhibition before 2020.
We will travel to Europe, Southern East Asia, South Amercia, North America, Africa every year.
Fully Automatic LPG Gas Cylinder Body Circular Welding Machine, LPG Cylinder Circumferential Seam MIG Welding Machine~
FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(such as 6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
