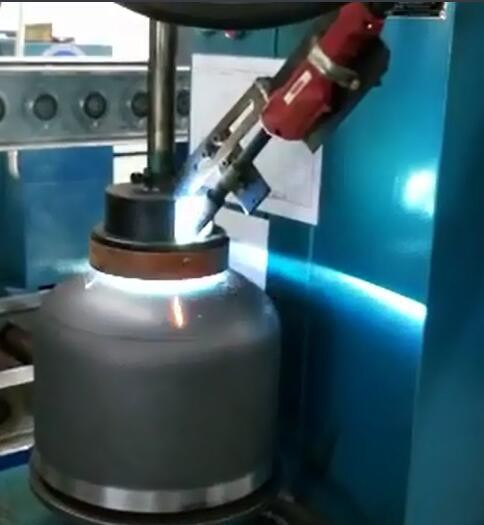

auto semi LPC cylinder bung welding machine Main technical parameter: 1. Motor power: 2.2KW 2. Air pressure: 0.6Mpa 3. Voltage: 220V 3. Welding speed: 20s/pcs 4. supported with CO2 gas shielded welding machine 5.One people can take care of two mahcines No. | Description | Model & Size | Unit |
| Main Manufacturing Equipment | |
1 | Hydraulic presser for blanking sheet | 630T | set |
2 | Open mill and shearing machine | | set |
3 | Round sheet cutting/blanking mould | 13KG | set |
4 | Round sheet cutting/blanking mould | 6KG | set |
5 | Hydraulic Drawing machine | 200/300 | set |
6 | Drawing mould | 13KG | set |
7 | Drawing mould | 6KG | set |
8 | Trimmimg machine | QK-5 | set |
9 | Cleaning/polishing machine | | set |
10 | Hole punching machine | | set |
11 | Valve Seat Welding Machine | | set |
12 | Shroud/handle welding machine | | set |
13 | Bottom base welding machine | | set |
18 | Assembly machine/assemble the two halves into one | ZH-3 | set |
19 | Circumferential seam welding machine | HJ-3 | set |
20 | Heat treatment/annealing furnace | | set |
21 | Hydrostatic/pressure Testing Unit | SY-4 | set |
22 | Shot blasting machine | | set |
23 | Powder coating line | | set |
24 | Valve mounting machine | | set |
25 | Leakage testing machine | CM-3 | set |
26 | Printing machine | ZS-3 | set |
27 | Burst Test Unit | | set |
| | Total | |
| Auxilary Equipment | |
1 | Mechanical power press | 100T | set |
2 | Mechanical power press | 40T | set |
3 | Hydraulic press | 200T | set |
4 | Coding machine | | set |
5 | Shrould rolling machine | | set |
6 | Bottom base rolling machine | | set |
7 | Bottom base welding fixure | | set |
8 | Upper raduis rolling machine | 180T | set |
9 | Mechanical power press | 63T | set |
10 | Shrould mould | | set |
11 | Bottom base mould | | set |
12 | Printing mould | | pair |
1.De-coil and punching machine for small round sheet cutting from big sheet(material preparing for shell) 2. Hydraulic press drawing the head(200-300T)
Press the round sheet into a shell with dies 3. Automatic trimming machine This machine is reliable, easy to operate . Technical data Motor power:5.5KW Air pressure:0.6Mpa Trimming time:20s Weight of machine:1.5T 4. End dish necking machine Technical data Motor power:4.5-11kw Air pressure:0.6Mpa Thickness of plate:1-10mm Necking head diameter:150-1200mm Necking time:10-50s (adjustable) Weight of machine:1.5-3T 5.Cleaning machine Technical data Motor power:1.5kw Polishing motor power:1.5kw*2 Air pressure:0.6Mpa Polishing wheel feed range:0.2-20mm Efficiency:180Pcs/hour Weight of machine:1.2T 6.Hole punching machine Punch the hole on head of the cylinder Technical data Motor power:5.5kw Punching speed:180Pcs/hour Weight of machine:1.5T 7.Valve Seat Welding Machine To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time Technical data Rated voltage:220V Motor power:0.25kw Air pressure:0.6Mpa 8.Bottom base welding machine Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding. Technical data Current:AC380V+N Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa 9.Protection enclosure welding machine Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding. Technical data Rated voltage:AC380V Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa 10.Assembling Machine To assemble both halves of the cylinder together and get ready for welding Technical data Cylinder diameter:250mm Air cylinder pressure:0.5-0.7Mpa 11.Circumferential Seam welding machine Technical data Voltage:AC380V+N Motor power:0.55KW Rotation speed:Max.10rpm/min (adjustable) Motor power:0.55kw 12. Gas car-bottom heat treating furnace machine This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system. It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution. Technical data Producing efficiency:75pcs/hr Feeding type:Chain drive/cylinder feeding Cleaning size:Ø320*700mm------Ø420*1250mm Dimension:(L*W*H):12500*1390*1560mm removable transport 13.Hydrostatic Testing Machine The machine is special for steel cylinder of liquefied gas cylinders,applicable to manufacturers and testing station for wuthstand voltage test on cylinder.Irrigation,pressurization,pressure,maintaining centralized control and automatic pouring completed by using water pump,equipped with a water tank,water can be recycled. Technical data: Pneumatic pressure:0.6Mpa Motor power:3kw Hydrostatic test pressure:3.2Mpa Weight:1.1T 14. Cylinder drying machine The equipment is used for drying the bottle cylinder after water pressure test. 15. Shot Blasting Machine Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.). Technical data Produing efficiency:80-120pcs/hr Shot blasting machine:2 sets Hoist motor power:2.2KW Total power:31.2KW Weight:16T Workpiece size:Ø320mm*680mm Machine dimension:(L*W):7885*2460mm 16.Spraying production line The spraying producing line for U track,using electric or natural gas,fuel oil,coal heating,hot air circulation,the allocation of fixed automatic spray gun 4,manual gun 1.Spraying powder or paint on the steel cylinders apperance.The cylinder into the oven drying after spraying Technical data Working voltage:380V 50HZ Air pressure:0.4-0.6Mpa Total power:15KW Working efficiency:180Pcs/jr 17.Valve mounting machine The equipment is suitable for the liquefied petroleum gas cylinder angle value installation and use,it absorbs the domestic and foreign advance technology,using electrical control,pneumatic clamping,torque adjustable device,when reaching a certain torque,and go to the specificed direction after the automatic shutdown.The machine operation and flexible,convenient and safe Technical data Motor power:2.2KW Motor speed:1400r/min Work spindle speed:15.5r/min Working air pressure:0.5-0.6Mpa Consumption per hour:1.14m3 Clamping cylinder stroke:120mm Rotation speed ration:1:59 Weight:0.9T 18.Leakage Air Test Machine The device for cylinder do tightness test with,composed of a water tank,a lifting cylinder,a bottle feeding machine,electric control part and other parts,work a bottle feeding mechanism of automatic cylinder will send to be test station,a lifting cylinder will fall into the water.the operating personnel rotation observations of the cylinder is not leaking cylinder,after the test and the cylinder out of water,a loop end.This machine is reasonable in structure,simple operation and maintenance. Technical data Air pressure:0.6Mpa Testing air pressure:2.2Mpa Holding pressure time:60s Weight:1.8T 19.Burst Test Unit Recorded automatically by computer. Easy operate and reliable. Our services, shipping methods, warranty, payment terms, etc....
RFQ for cylinder production line
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specialized in automatic welding
equipment more than 25 years, we have a strong design & technical team,
we can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing ,daily out put
Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.
Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order by T/T, balance 70% before delivery.
Minimum order quantity: 1 set
Delivery time: about 45 days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.
Q: what's the package ?
A: Fumigation-free plywood case with wrapping film.
Q: Do you offer teaching & training ?
A: Training at supplier's plant.
Q: what's policy for guarantee and broken parts ?
A: Warranty period of equipment is one year, during this time the broken parts and spares
caused by quality can be offered free.
