5m3 5000liters 1.6MPa Vertical Cryogenic Storage Tank Gasifier

Quantity:



Inquire Add to Basket

Model NO.:
HS-07
Condition:
New
Keyword:
LNG Storage Tank
Type:
Vertical and Horizontal
Design Standard:
Jb/T 6898-2015
Technical Drawing:
Accept
OEM:
Available
MOQ:
1 PCS
Working Pressure:
1.76 MPa
Transport Package:
Standard Seaworthy Package
Specification:
1m3 3m3 5m3
Trademark:
HS
Origin:
China Jiangsu
HS Code:
7311009000
Production Capacity:
1000 PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

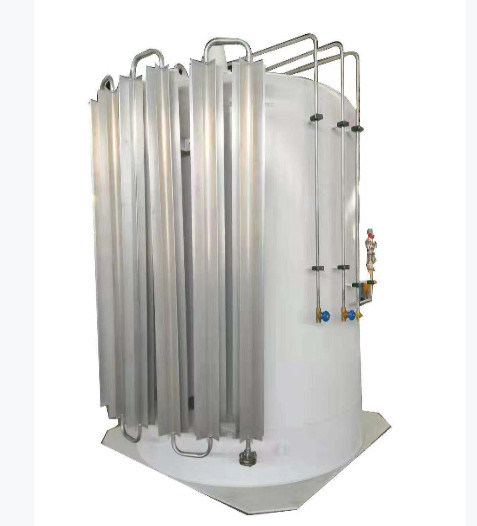

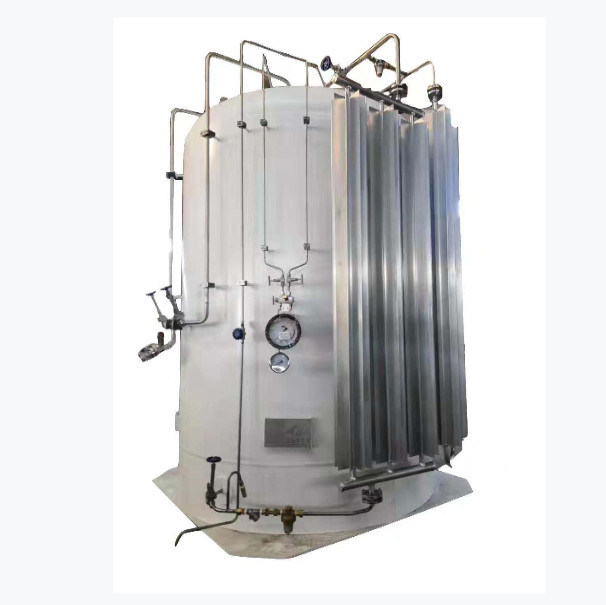

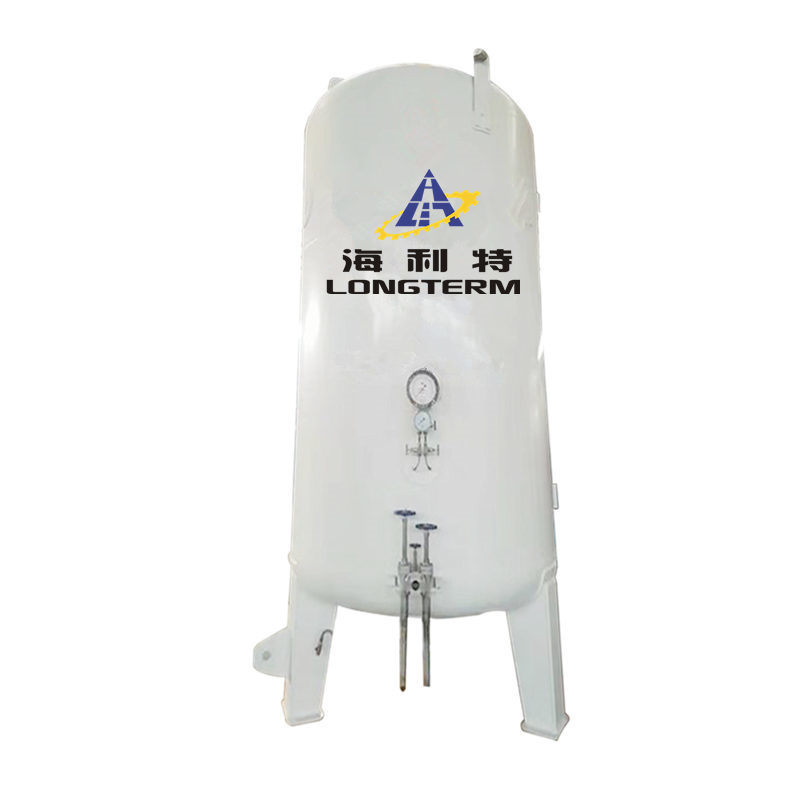

5m3 5000Liters 1.6Mpa Vertical Cryogenic Storage Tank gasifier

Description

The cryogenic storage tank is a vertical or horizontal double-layer vacuum insulation
tank for storing liquid oxygen, nitrogen,argon,carbon dioxide and other media.Its main function is to fill and store
low-temperature liquids. For the safe use of cryogenic storage tanks, gas hazardous characteristics, low-temperature protection effects, surrounding environmental conditions, and pressure vessel characteristics should be fully considered, and appropriate technical management measures should taken to ensure safe operation. Potential dangers such as leakage, over pressure,and explosion exist when the storagetnkii operation.If these hidden dangers are not handled in time,serious consequences will result.The use of cryogenic sto tanks should stricty implement the "Safety Rules for the Use of cryogenic Liquid Storage and Transportaion Equipment (JB/ T"6898-2015),and strengthen daily safety management.

Model	Specifications		T ºC	Tank	DN	Support		Safety Valve Joint	Blowoff valve joint
	volume m3	Pressure		Height H		Hole size d	D
RFT-1/0.8	1	0.8	150	2180	800	24	560	Rc11/2	R 1/2
RFT-1/1.0		1		2180
RFT-1/1.3		1.3		2182
RFT-1/1.6		1.6		2182
RFT-2/0.8	2	0.8	150	2660	1100	24	740	Rc11/2	R 1/2
RFT-2/1.0		1		2660
RFT-2/1.3		1.3		2662
RFT-2/1.6		1.6		2662
RFT-3/0.8	3	0.8	150	2815	1300	24	950	Rc2	R3/4
RFT-3/1.0		1		2815
RFT-3/1.3		1.3		2817
RFT-3/1.6		1.6		2817
RFT-5/0.8	5	0.8	150	3811	1400	24	1050	Rc2	R1

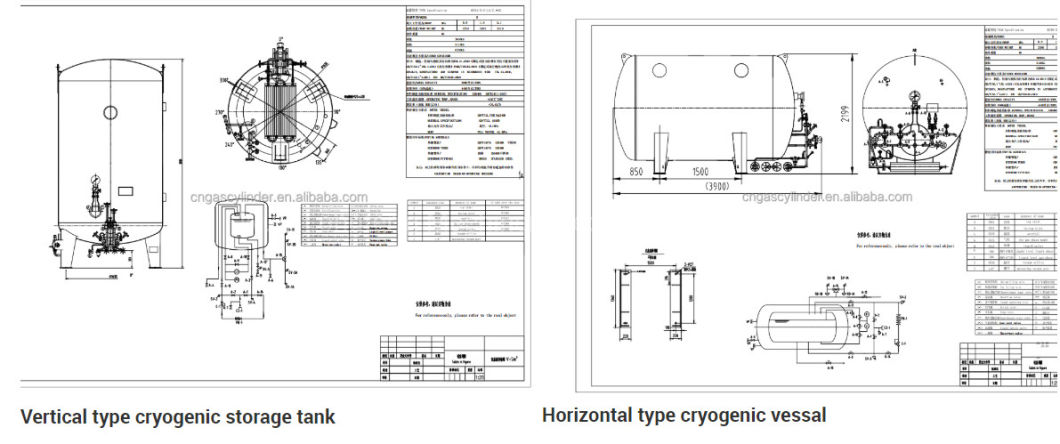

Technical drawing
5m3 5000liters 1.6MPa Vertical Cryogenic Storage Tank Gasifier

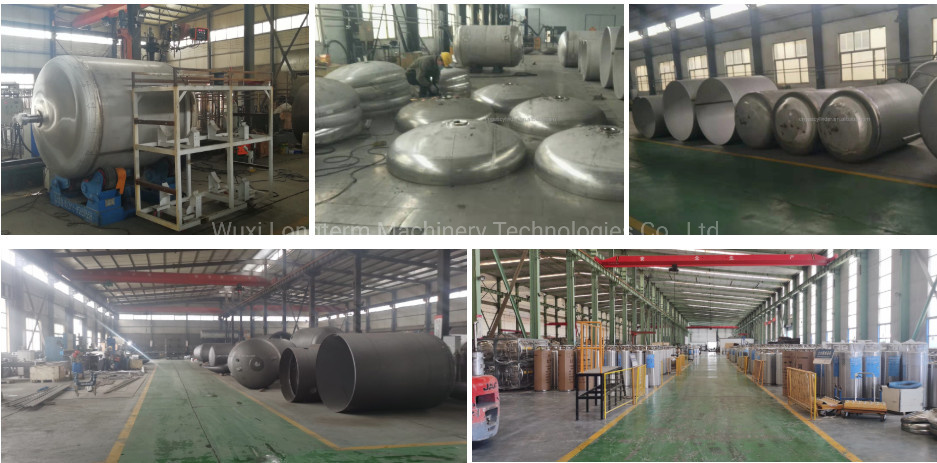

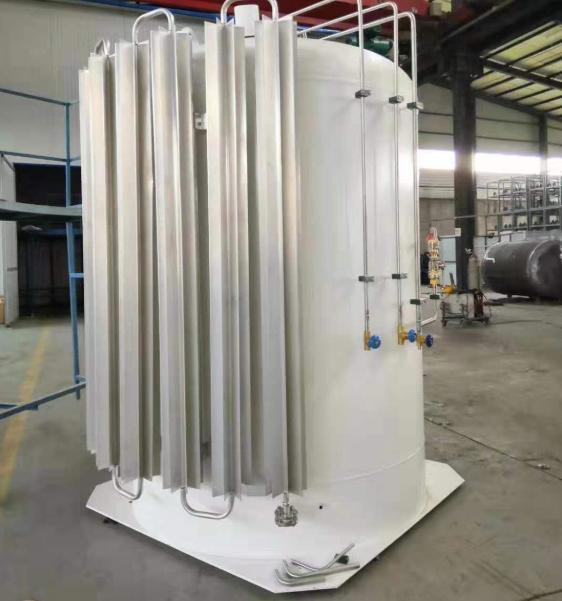

Manufacturing Site

5m3 5000liters 1.6MPa Vertical Cryogenic Storage Tank Gasifier

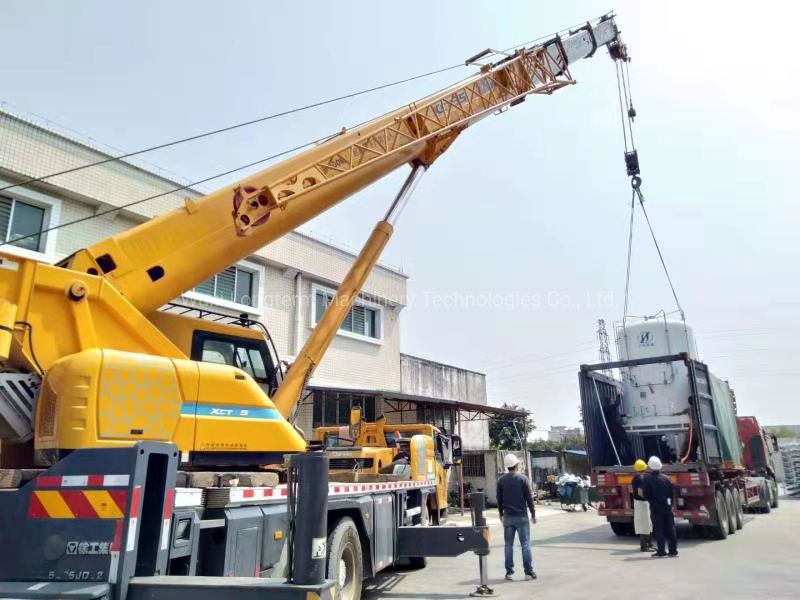

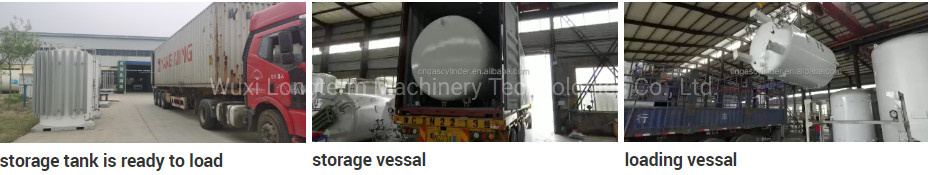

Storage tank Shpping&Packing

5m3 5000liters 1.6MPa Vertical Cryogenic Storage Tank Gasifier

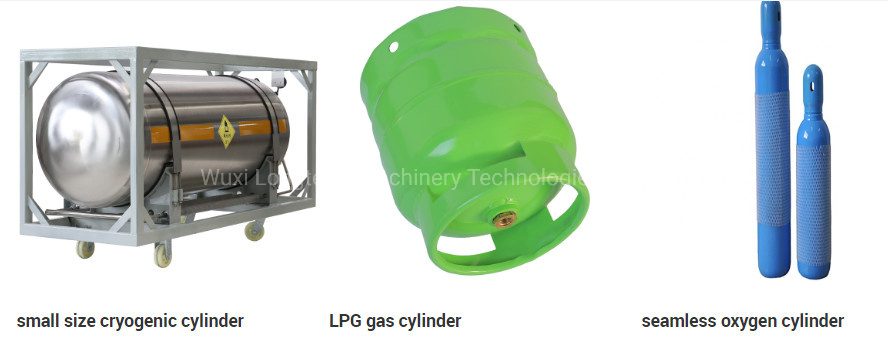

Related products
5m3 5000liters 1.6MPa Vertical Cryogenic Storage Tank Gasifier

FAQ for LNG storage tank

Q1.Are you manufacturer or trading company?
We are professional manufacturer in cryogenic equipment filed.

Q2.What's your advantage?
We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.

Q3.Have your engineers participated in any foreign projects?
Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation
and comissioning of the equipment in Turkey,Russia,

Q4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for
you.
