3m3 3000 Liter Lo2 Ln2 Lar Cryogenic Storage Tank Gasifier with 110m3/H Vaporizer

Quantity:
  • HS-07
  • New
  • LNG Storage Tank
  • Vertical and Horizontal
  • Jb/T 6898-2015
  • Accept
  • Available
  • 1 PCS
  • 1.76 MPa
  • Standard Seaworthy Package
  • 1m3 3m3 5m3
  • HS
  • China Jiangsu
  • 7311009000
  • 1000 PCS/Month
  • Available | Customized Request

Product Description

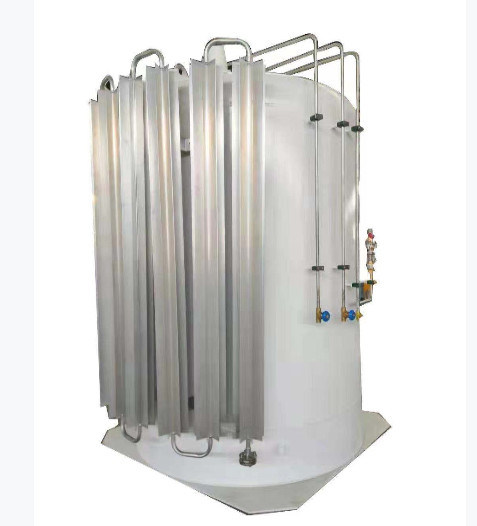

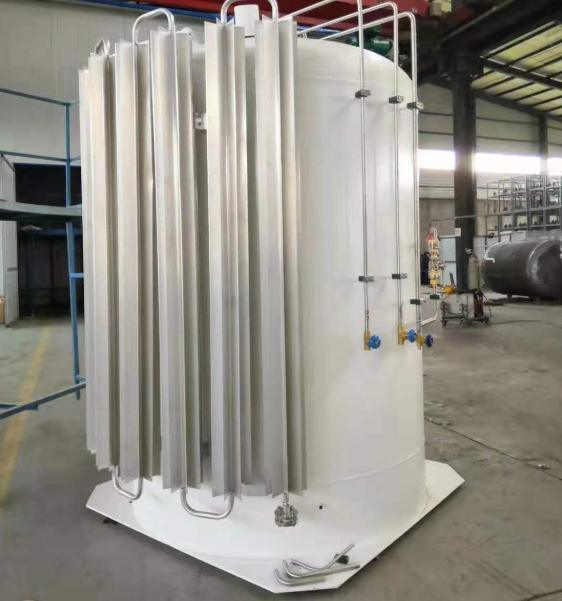

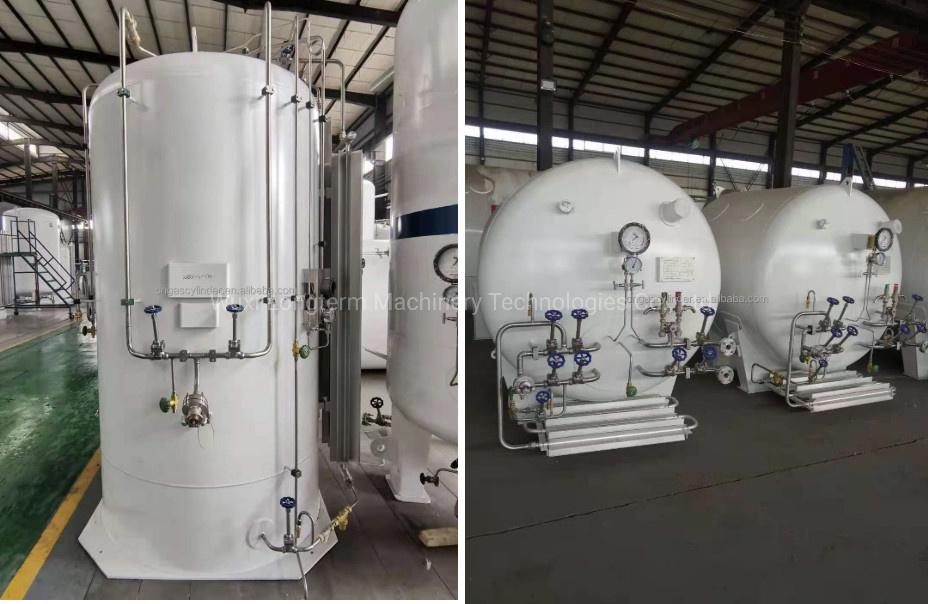

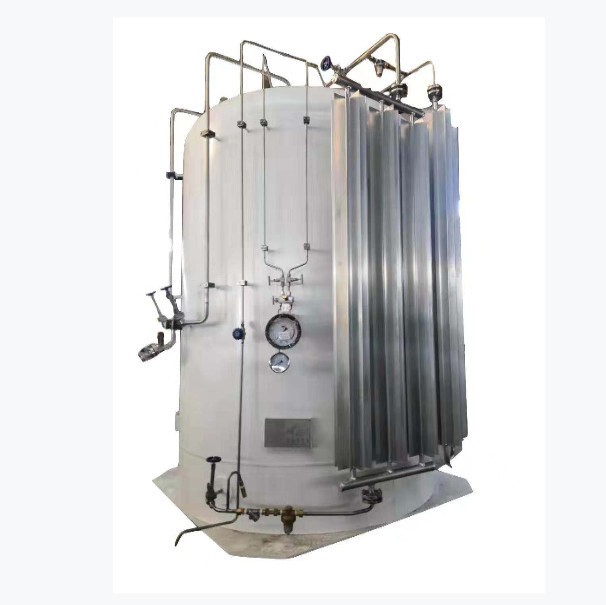

3m3 3000 Liter LO2 LN2 LAR Cryogenic Storage Tank gasifier with 110m3/h Vaporizer

Description

The cryogenic storage tank is a vertical or horizontal double-layer vacuum insulation
tank for storing liquid oxygen, nitrogen,argon,carbon dioxide and other media.Its main function is to fill and store
low-temperature liquids. For the safe use of cryogenic storage tanks, gas hazardous characteristics, low-temperature protection effects, surrounding environmental conditions, and pressure vessel characteristics should be fully considered, and appropriate technical management measures should taken to ensure safe operation. Potential dangers such as leakage, over pressure,and explosion exist when the storagetnkii operation.If these hidden dangers are not handled in time,serious consequences will result.The use of cryogenic sto tanks should stricty implement the "Safety Rules for the Use of cryogenic Liquid Storage and Transportaion Equipment (JB/ T"6898-2015),and strengthen daily safety management.

Model Specifications T ºC Tank DN Support Safety Valve Joint Blowoff valve joint
volume m3 Pressure Height H Hole size d D
RFT-1/0.8 1 0.8 150 2180 800 24 560 Rc11/2 R 1/2
RFT-1/1.0 1 2180
RFT-1/1.3 1.3 2182
RFT-1/1.6 1.6 2182
RFT-2/0.8 2 0.8 150 2660 1100 24 740 Rc11/2 R 1/2
RFT-2/1.0 1 2660
RFT-2/1.3 1.3 2662
RFT-2/1.6 1.6 2662
RFT-3/0.8 3 0.8 150 2815 1300 24 950 Rc2 R3/4
RFT-3/1.0 1 2815
RFT-3/1.3 1.3 2817
RFT-3/1.6 1.6 2817
RFT-5/0.8 5 0.8 150 3811 1400 24 1050 Rc2 R1

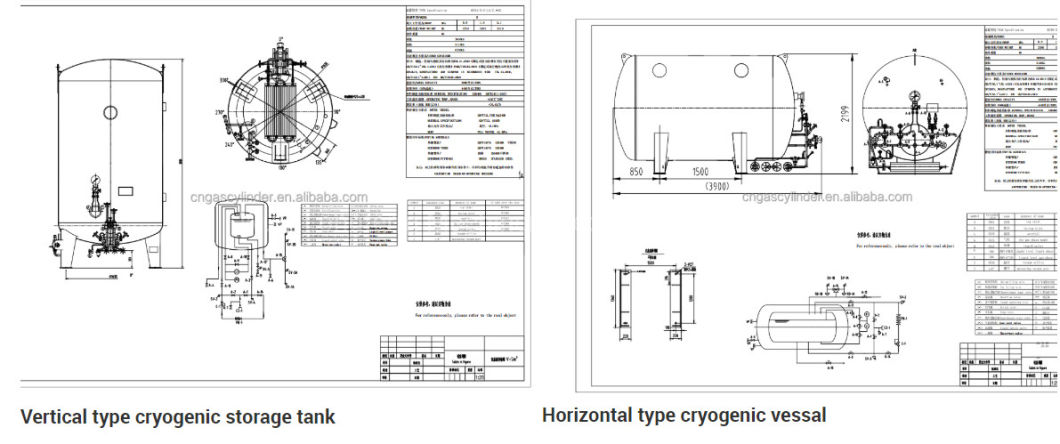

Technical drawing
3m3 3000 Liter Lo2 Ln2 Lar Cryogenic Storage Tank Gasifier with 110m3/H Vaporizer
3m3 3000 Liter Lo2 Ln2 Lar Cryogenic Storage Tank Gasifier with 110m3/H Vaporizer

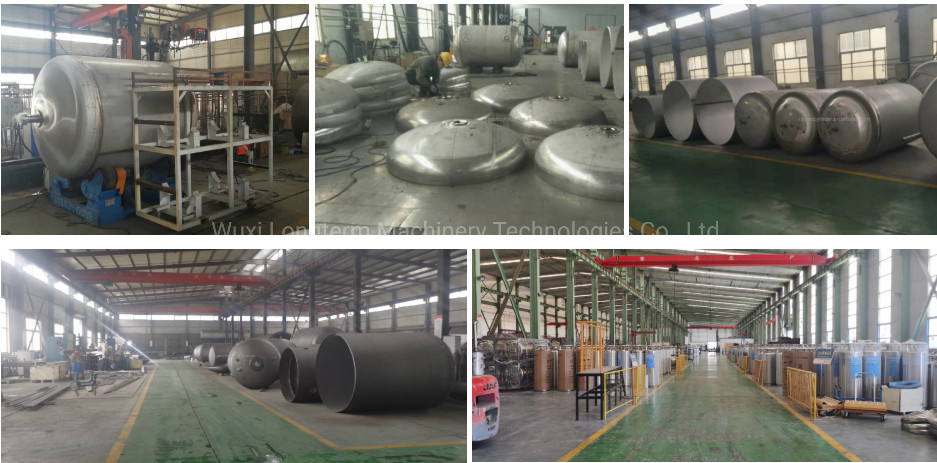

Manufacturing Site

3m3 3000 Liter Lo2 Ln2 Lar Cryogenic Storage Tank Gasifier with 110m3/H Vaporizer

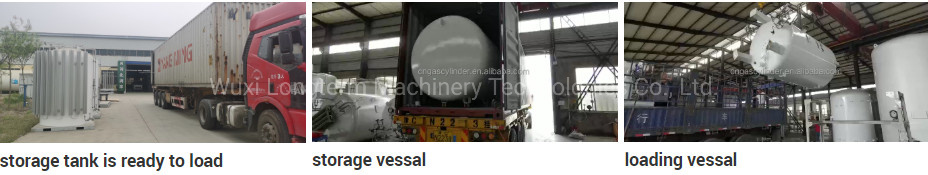

Storage tank Shpping&Packing

3m3 3000 Liter Lo2 Ln2 Lar Cryogenic Storage Tank Gasifier with 110m3/H Vaporizer

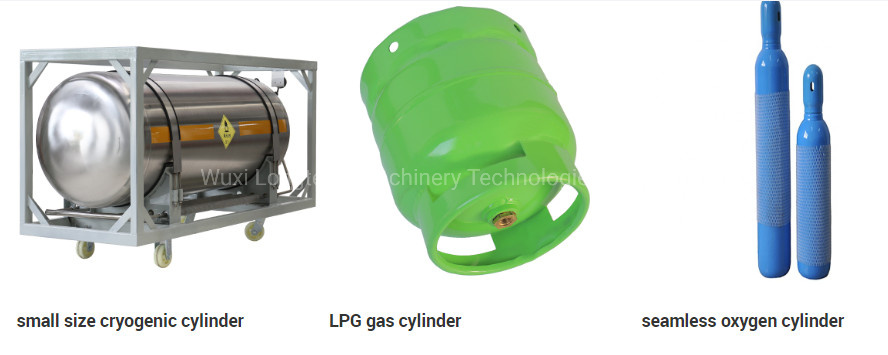

Related products
3m3 3000 Liter Lo2 Ln2 Lar Cryogenic Storage Tank Gasifier with 110m3/H Vaporizer
FAQ for LNG storage tank

Q1.Are you manufacturer or trading company?
We are professional manufacturer in cryogenic equipment filed.

Q2.What's your advantage?
We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.

Q3.Have your engineers participated in any foreign projects?
Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation
and comissioning of the equipment in Turkey,Russia,

Q4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for
you.
