China Factory Elevator Painting/ Powder Coating Booth

  • HLT
  • 6000*4320*4000 mm
  • SUS 304
  • PLC Control
  • Three Colors Painting
  • American Nordson
  • Stepping Conveying
  • Water Curtain + Spray + Water Vapor Separator
  • Industrial Use Robot Transfer System Painting Boot
  • Seaworthy
  • customized
  • Longterm
  • Jiangsu, China
  • 400/Year
  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

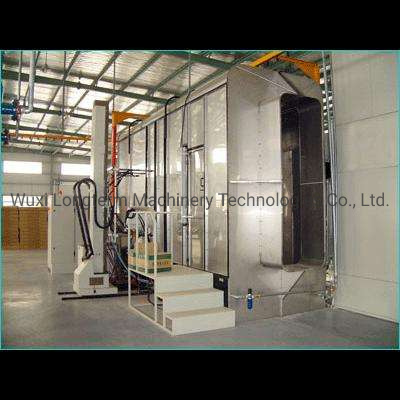

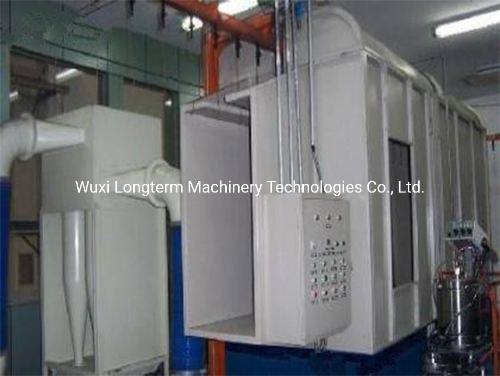

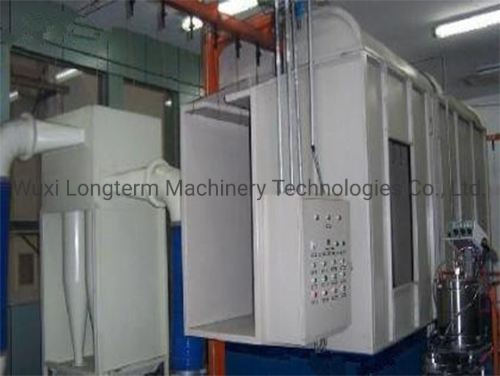

China factory elevator painting/ powder coating booth

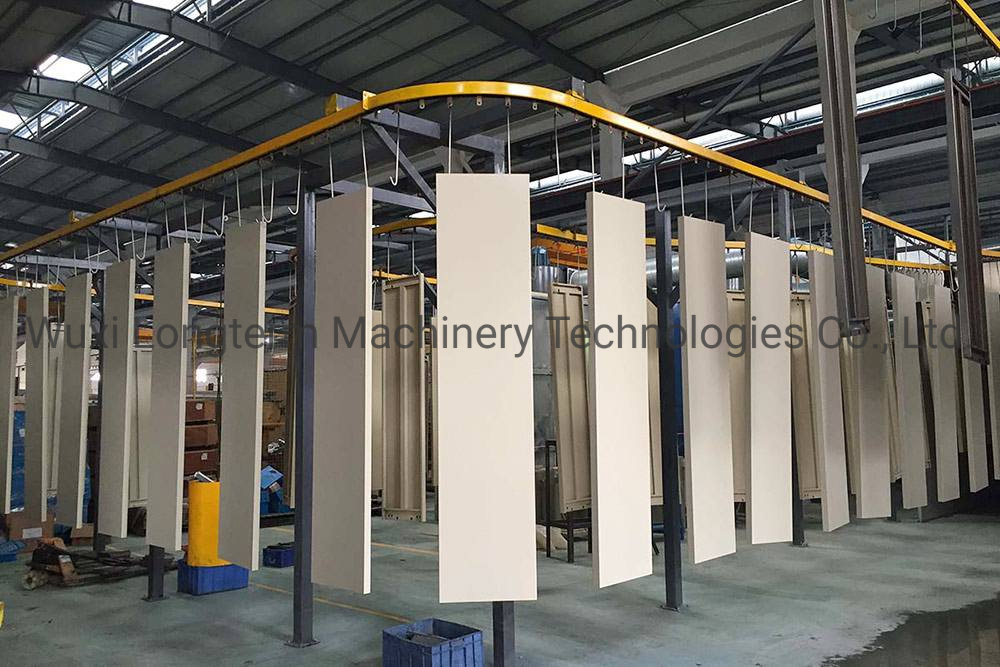

The coating line consists of a surface pre-treatment machine, a drying and curing oven, powder coating, a curing drying tunnel, a hanging conveyor, and an electrical control system.

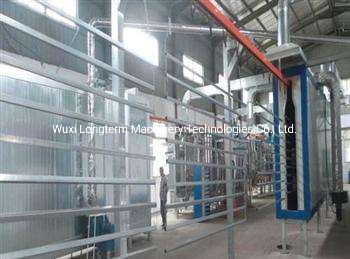

China Factory Elevator Painting/ Powder Coating Booth
China Factory Elevator Painting/ Powder Coating Booth

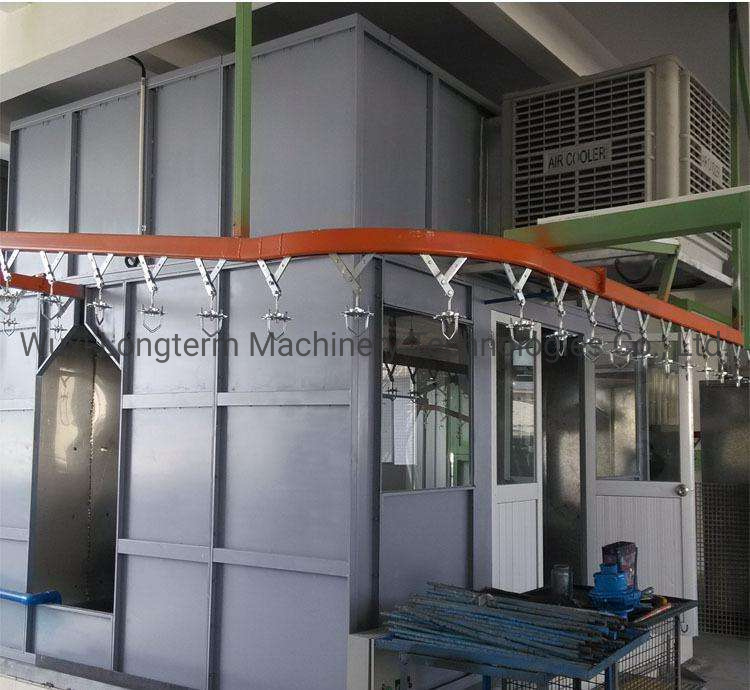

Sprinkler System

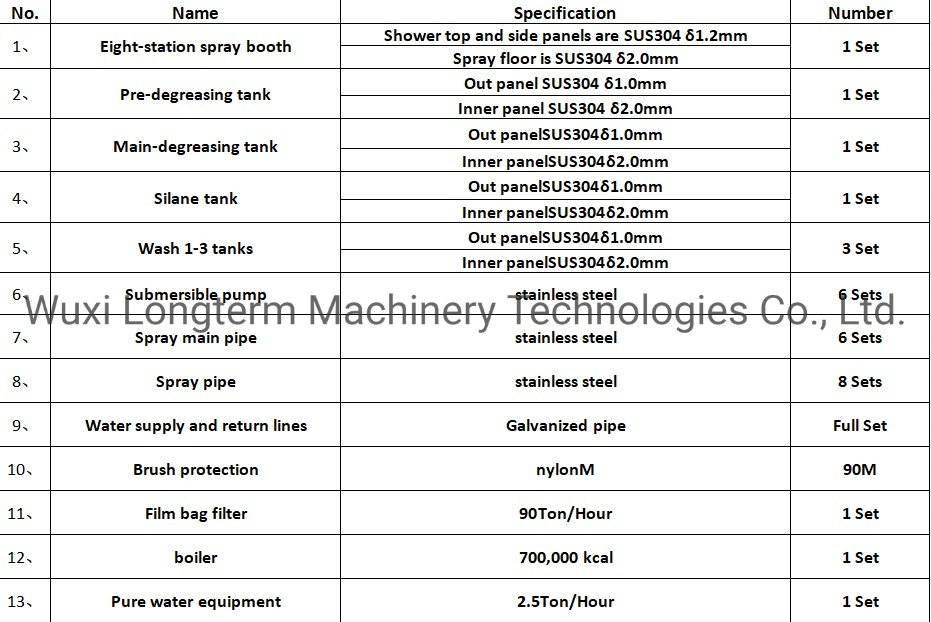

The spray device is composed of a spray pump, a pressure relief valve, a pressure gauge, a spray main pipe, a spray riser and a universal ball nozzle. The flow rate and pressure of each pump can be adjusted through the throttle adjustment valve and pressure gauge, and the pressure adjustment range is 0.5 ~ 1.5Kg.f / cm2 The spray main is made of stainless steel pipe; the spray riser is made of stainless steel pipe. The film spraying section adopts W-type atomizing nozzles, and the remaining spraying sections adopt V-type nozzles. The total amount of nozzles is 960. The nozzle is made of polypropylene and has a heat resistance and chemical stability. The liquid storage tank is provided with alarms for the liquid level above and below, and is interlocked with the spray pump. Storage tank blowdown valve stainless steel wafer type butterfly valve. Tank The inner panel of the tank is δ2.0mm thick SUS304, and the outer panel of all tanks is δ0.8mm thick SUS304. The inside and outside of the heating tank are insulated by 50mm thick high-quality rock wool, which has good insulation performance. All tanks are equipped with double stainless steel 10 mesh screen filters. Between the pre-greasing and main degreasing tanks, water washing1 and pure water washing 1, a connecting pipe is provided, and a DN65 galvanized steel pipe is used. The countercurrent water replenishment method can improve the cleaning effect and save resources. There are two slopes at the bottom of all tanks, which can completely discharge the slag in the tank. The inner plates of the tank are all through welding, and after the water loading test, it is ensured that the welding is firm and does not leak. The membrane tank is equipped with a set of 90 ton/hour bag filters.

Pump system
This system is equipped with 6 pumps. The outlet of the spray pump body is provided with a pressure relief bypass, and the pump
flow and pressure are adjusted by a bypass valve.
Valves and fittings The stainless steel spray line uses stainless steel valves. A copper ball valve is used for the water pipe.
The pre-treatment spray branch pipe is connected with the riser by a union. The connection between the pretreatment supervisor and
the supervisor, and between the supervisor and the pump are flanged and bolted. All pipes can be easily removed.

Auxiliary equipment
The pre-degreasing tank is equipped with a set of the oil-water separator to remove the oil stains in the pre-degreasing tank and effectively control the composition of the tank liquid. relatively stable. A set of pipelines for driving the degreasing tank liquid into the pre-greasing tank is also provided. The silane tank is equipped with a set of automatic liquid adding device, the main configuration is as follows: PH meter × 1 unit and metering pump × 1 unit (preferred brand: Pasfida), and the medicine is automatically added, which is a closed-loop system. The silane tank is equipped with a stainless steel bag filter to remove impurities in the tank and improve the utilization rate of the tank liquid. All tanks are equipped with a lower limit alarm system to prevent dry liquid from damaging the main spray pump. Rotor flowmeters are all installed in the fresh pure water direct injection pipelines, which can easily observe the specific water consumption. The rotor flowmeters use domestic high-quality brands. There is an artificial water blowing platform (1) and a compressed air blowing gun at the pre-treatment outlet.

Pure water equipment
1. R / O terminal water output of primary reverse osmosis system: 2.5 tons/hour.
2. Outlet conductivity of reverse osmosis system: less than 20us / cm.
3. Raw water quality: The buyer provides a water quality report.
4. System recovery rate: about 70%.
5. Process flow: Raw water → raw water pump → multi-media filter → activated carbon filter → precision filter → high-pressure pump
→ reverse osmosis R / O device → Terminal water tank → Terminal water pump → Process water

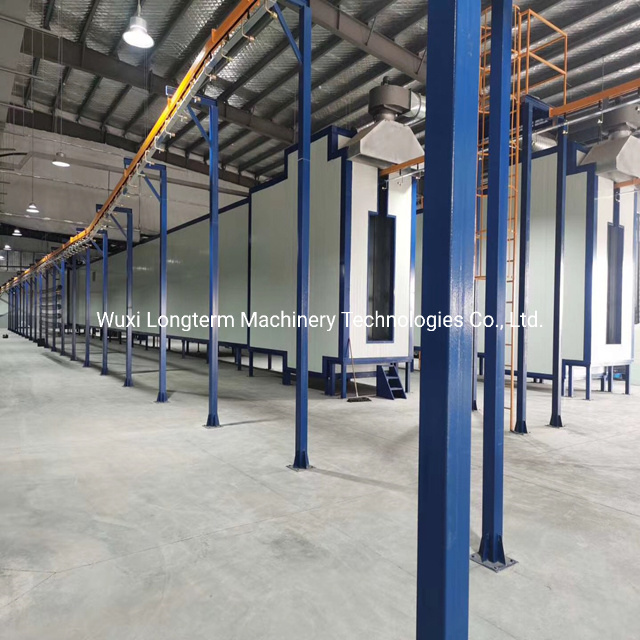

China Factory Elevator Painting/ Powder Coating Booth

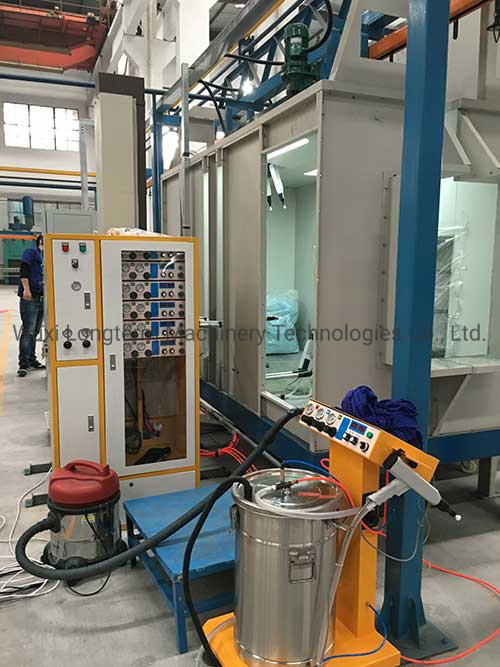

GEMA Manual Spray Gun
Wear-resistant unit for coating of difficult geometries
China Factory Elevator Painting/ Powder Coating Booth

State-of-the art design and high performance materials guarantee excellent powder distribution and best coating results for
application of abrasive enamel powder.
  • OptiGun® Automatic Gun: efficient and reliable

China Factory Elevator Painting/ Powder Coating Booth

OptiGuns offer the highest transfer efficiency, perfect quality in every application and are the ideal solution for color change.

China Factory Elevator Painting/ Powder Coating Booth

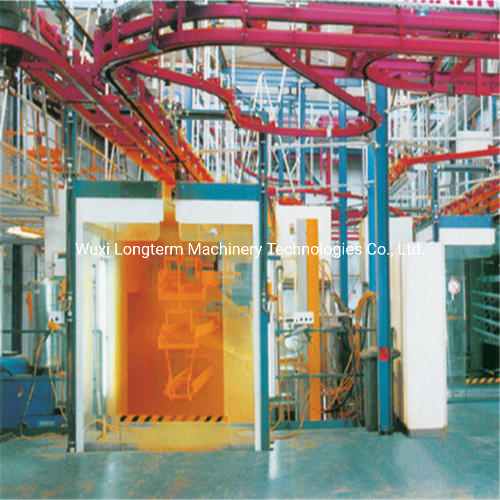

Detailed Images

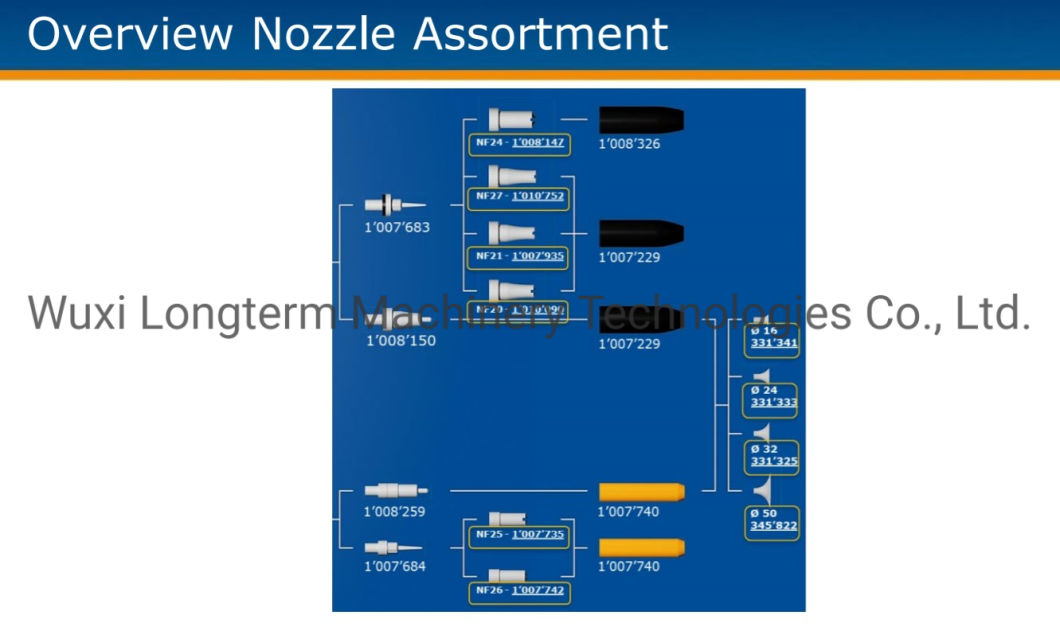

Gun nozzle design
China Factory Elevator Painting/ Powder Coating Booth

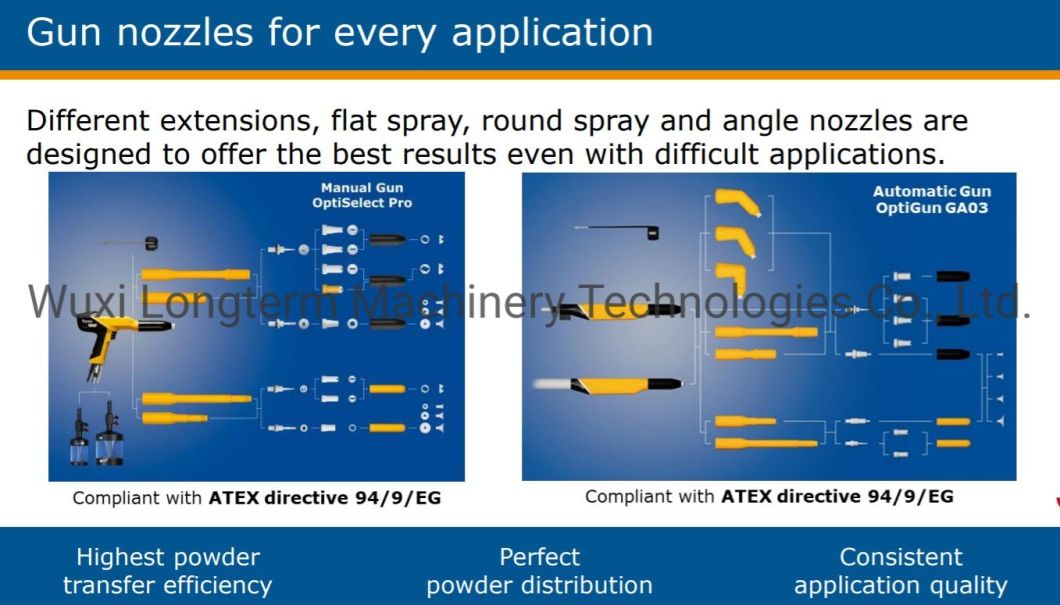

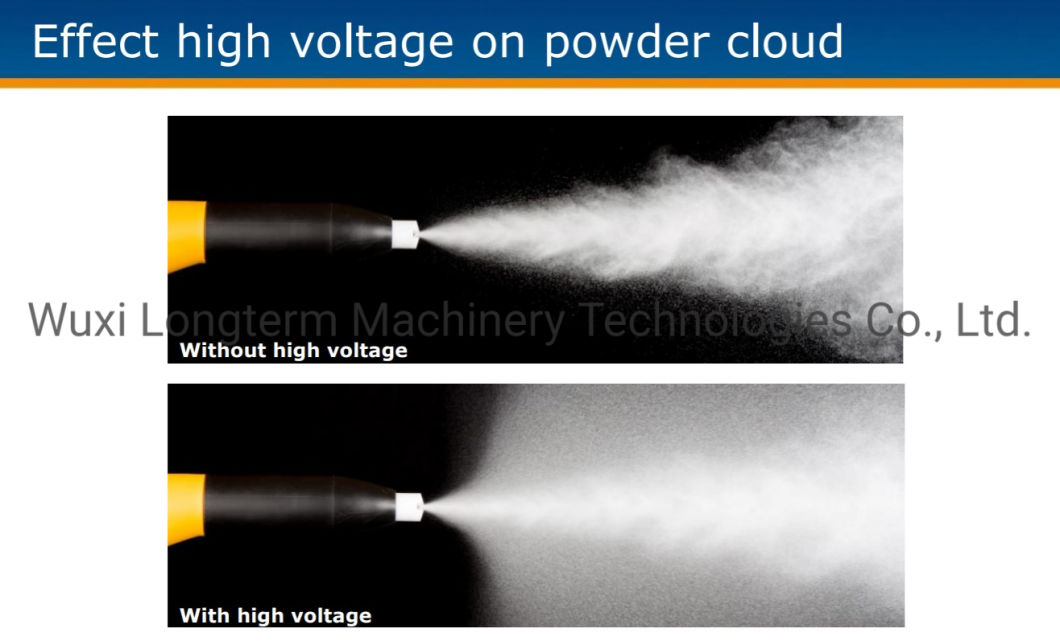

Powder coating requires a perfect combination of nozzle design and high voltage supply to achieve an homogeneous powder cloud. •
The high voltage field plays a very important role ensuring a perfect powder atomization and charging. • Different object
geometries to be coated require different nozzle geometries to ensure that the powder cloud is ideal and at the right speed.


China Factory Elevator Painting/ Powder Coating Booth
China Factory Elevator Painting/ Powder Coating Booth

After Sales Service
China Factory Elevator Painting/ Powder Coating Booth

Professional engineer team
With reliable service, we have won praise in the international market. Professional technical team helps our customers overcome various technical difficulties. Think for customers.
Company Introduction
Established in 1986, Wuxi Longterm Coating Co., Ltd has become a powerful and competitive manufacturer of coating equipments, environment-protective plating equipments, green environment-protective powders coatings, annual sales of around 350 million RMB. Our company covers 55,000 square meters, including 30,000 square meters' workshops and technological building. We have more than 170,000,000 RMB capital assets and more than 252 employees, including 45 technical experts with advanced certification, so we have strong technical strength to develop products quality and technology.

China Factory Elevator Painting/ Powder Coating Booth
China Factory Elevator Painting/ Powder Coating Booth

Products are sold to domestic and international famous enterprises:Cheetah car etc., JinGu\Jinfei car parts, Yueling car parts,Electrolux, Siemens, Philip , Atlas,WAM and domestic long march Launch Vehicle, Haier, Hisense,and exported to Russia, Vietnam, India, Syria , Pakistan, Mexico and more than 20 countries, while is the coating supplier for China Business Aircraft Group in 2009.
A. Workpiece size/specification,weight and process requirements(Powder coating or painting? )

B. Plant foundatation drawing,including plant height(the height between factory beam to the ground) and loading&unloading position

C. Heating energy:Electric,LPG or LNG?

D. The environmental requirements of your local government

E. Voltage

F. Daily and annual capacity
